Included

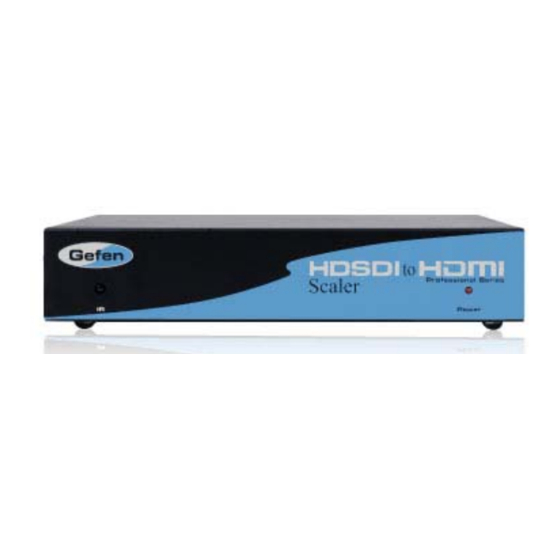

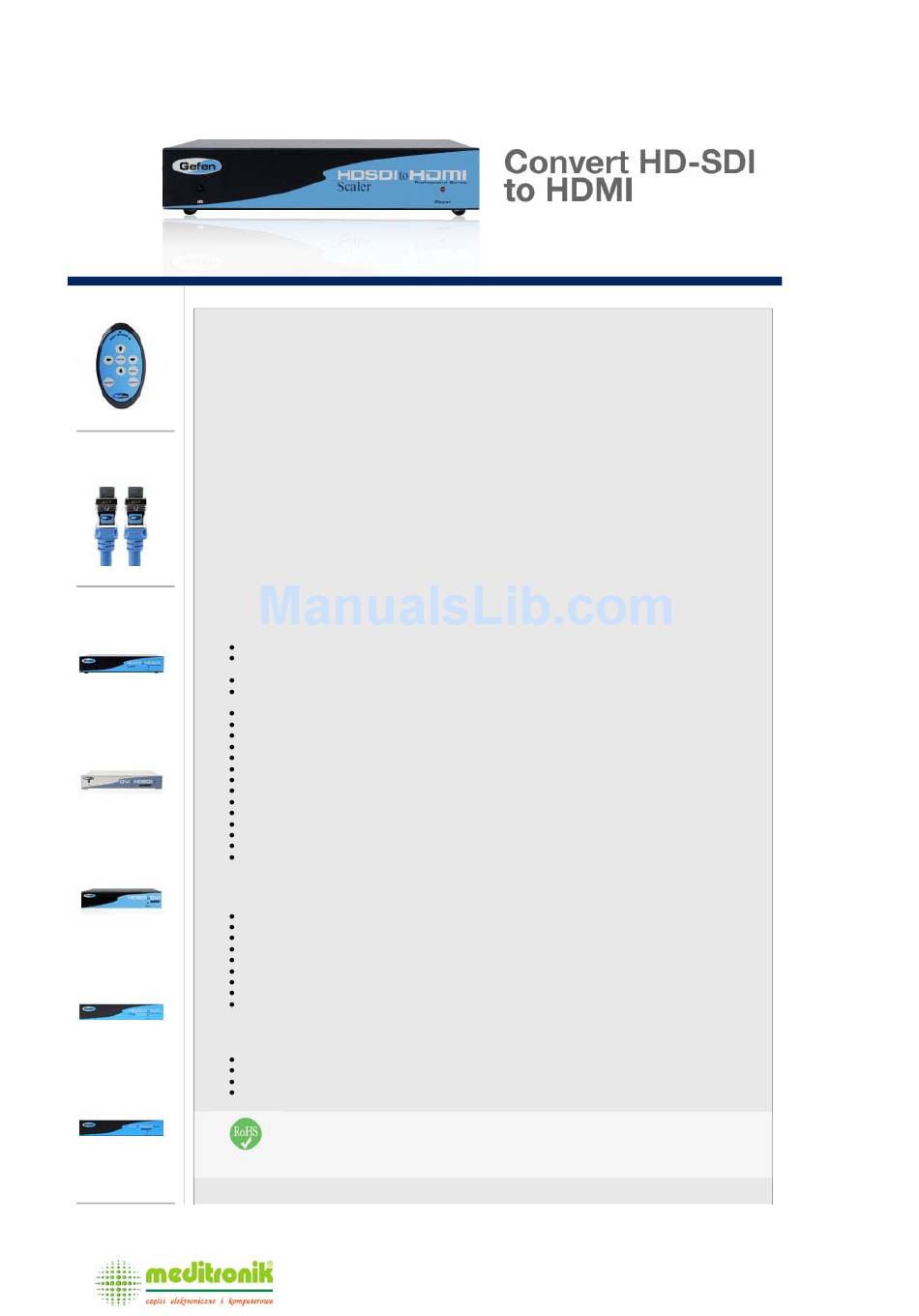

HD-SDI to HDMI Scaler Box
Products
Combines SDI and HDMI Equipment for Maximum Interoperability
The HDSDI to HDMI Scaler is the newest revision of our HDSDI conversion line incorporating
SD/HDSDI Single or Dual link mode conversion scaled to HDMI. Resolutions of up to 1080p are
supported over the HDMI link for those that want true "High Definition". Supports HDSDI with
embedded audio and outputs a full HDMI video and audio signal. Performance has been greatly
enhanced due to Gennum's VXP Scaler onboard; allowing for new features such as: Genlock,
Color & Gamma Correction, Noise Reduction, Detail Enhancement, Aspect Ratio Selection, Pattern
RMT-8HDS-IR
Generator Mode, & Multiple Language Menu Support. Bottom Line? -- More performance, less
cost.
Optional
SDI
Accessories
SDI (serial digital interface), used primarily in broadcasting, converts and transmits digital video
through SDI connectors. It enables video sources to process high definition, high quality video.
How It Works
HD-SDI devices are connected to the HD-SDI input and HDMI devices are connected to the HDMI
output. When the source, display and the Scaler are powered and connected, video signals are
converted to the proper format
HDMI Cables
Note:
Please click here for the RS232 control manual
Related Products
Features:
10-bit resolution for greater precision and dynamic range
Proprietary 10-bit motion adaptive video de-interlacing with edge interpolation for HD / SD
formats.
Advanced noise reduction and detail enhancement
Max. active image size of 2048 samples x 2048 lines PBP processing for various
combinations of video and graphics with alpha blending
HDMI to HD-SDI
Fully integrated sprite based multi-plane OSD controller.
Scaler Box
Frame rate conversion to / from any refresh rate
Pattern mode w/ color bars & cross hatch patterns
Color correction
Noise Reduction
Detail Enhancement
Brightness Adjustment
Gamma Selection
Aspect Ratio Select
Custom Timing output mode
French/English Menu Set
DVI to HD-SDI Single
RS-232 upgradeable firmware
Link Scaler Box
RS-232 and/or IR Control
Genlock onboard
Specifications:
Input Video Bandwidth: 2x 1.485 Gbps (Dual Link HD-SDI)
Output Video Bandwidth: 165 MHz (Single Link HDMI)
Maximum Input/Output Resolution: 2048x1024
HD-SDI to DVI Single
HDMI Connector: type A 19 pin female
Link Scaler Box
Audio Output: HDMI embedded audio
Rack Mountable
Power Supply: 5V DC
Shipping Weight: 5 lbs.
Dimensions: 8.25"W x 1.75"H x 7.5"H
Package Includes:
HD-SDI to HDMI Scaler Box
HD-SDI to DVI PLUS
5V DC Power Supply
Scaler Box
RMT-8HDS-IR remote control
Users Manual
DVI to HD-SDI PLUS
Scaler Box
Dystrybucja i sprzedaż: Meditronik Sp. z o.o.
02-952 Warszawa, ul. Wiertnicza 129, tel. (+48 22) 651-72-42, fax (+48 22) 651-72-46
http://www.meditronik.com.pl
e-mail: office@meditronik.com.pl
EXT-HDSDI-2-HDMIS
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Gefen HDSDI to HDMI Scaler Box
Summary of Contents for Gefen HDSDI to HDMI Scaler Box
-
Page 1: Specifications
Products Combines SDI and HDMI Equipment for Maximum Interoperability The HDSDI to HDMI Scaler is the newest revision of our HDSDI conversion line incorporating SD/HDSDI Single or Dual link mode conversion scaled to HDMI. Resolutions of up to 1080p are supported over the HDMI link for those that want true "High Definition". - Page 2 Supported Input formats: Output video formats supported: 480i 483p/59.94 480p 576p/50 576i 720p/23.97 576p 720p/24 720p/23.97 720p/25 720p/24 720p/29.97 720p/25 720p/30 720p/29.97 720p/50 720p/30 720p/59.94 720p/50 720p/60 720p/60 1035i/59.94 720p/59.94 1035i/60 1035i/59.94 1080i/50 1035i/60 1080i/50M 1080i/50 1080i/59.94 1080i/50M 1080i/60 1080i/59.94 1080p/23.98 1080i/60 1080p/24...
- Page 3 HD-SDI to HDMI Scaler U S E R M A N U A L www.gefen.com...
- Page 4 Notice Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. The HD-SDI to HDMI Scaler is a trademark of Gefen Inc. © 2007 Gefen Inc., All Rights Reserved...
-
Page 5: Table Of Contents
TABLE OF CONTENTS Introduction Operation Notes Panel Descriptions Menu Functions Supported Input/Output Resolutions RMT-8HDS-IR Installation Firmware Update Procedure Specifi cations Warranty... -
Page 6: Introduction
INTRODUCTION The HDSDI to HDMI Scaler is the newest revision of our HDSDI conversion line incor- porating SD/HDSDI Single or Dual link mode conversion scaled to HDMI. Resolutions of up to 1080p are supported over the DVI link for those that want true “High Defi nition”. -
Page 7: Operation Notes
OPERATION NOTES On power up, the HD-SDI to HDMI Scaler will automatically detect the input format of the input. The unit is controlled using the included 8 button remote. Pressing the OUTPUT button cycles the HD-SDI to HDMI Scaler through the following output modes: 640x480 - 800x600 - 720p - 1080i Other functions and output modes can be accessed through the onscreen menu. -
Page 8: Panel Descriptions
PANEL DESCRIPTIONS Infrared Eye Power Indicator Light RS-232 Uplink Port 5V Power HDMI Output SPDIF HD-SDI Input / Connector Output Loop Out Genlock Input... -
Page 9: Menu Functions
MENU FUNCTIONS Aspect: -Full Screen: Stretches input to fi ll the Monitor. -Letter / Pillar Box: Sets the aspect ratio to fi t a letter or pillar box format. -Panoramic: Panoramic Zoom feature -Extract: Feature to magnify the signal. -Extract Size -Horizontal / Vertical Position -Through: 1:1 Mapping -Horizontal / Vertical Size: Horizontally and vertically contracts or... - Page 10 MENU FUNCTIONS Input Menu Continued... -Audio: Selects which audio pair to use for audio output (1 - 8); Default is Channel 1. -Remote Channel: Changes the IR code of the HD-SDI to HDMI Scaler to one of 4 different settings between 0 and 3. When the remote channel is changed, dip switches in the 16 button remote must be changed to the corresponding code in order to continue operating the HD-SDI to HDMI Scaler.
-
Page 11: Supported Input/Output Resolutions
SUPPORTED INPUT/OUTPUT RESOLUTIONS Input Video Formats Supported: 480i 720p/50 1080p/23.98 1080sf/23.98 480p 720p/59.94 1080p/24 1080sf/24 576i 720p/60 1080p/25 1080sf/25 576p 1035i/59.94 1080p/29.97 1080sf29.97 720p/23.98 1035i/60 1080p/30 1080sf/30 720p/24 1080i/50 1080p/50 2K-p/23.98 720p/25 1080i/50M 1080p/50M 2K-p/24 720p/29.97 1080i/59.94 1080p/59.94 2K-sf/23.98 720p/30 1080i/60 1080p/60 2K-sf/24... -
Page 12: Rmt-8Hds-Ir Installation
RMT-8HDS-IR INSTALLATION 1. Remove battery cover from the back of the RMT-8HDS-IR remote. 2. Verify that dip switches 1 & 2 are in the down (OFF) position. 3. Insert the battery, hold the battery so that you can see the positive side facing up. The side that is not marked must be facing down. -
Page 13: Firmware Update Procedure
FIRMWARE UPDATE PROCEDURE Please check http://www.gefen.com/kvm/support/download.jsp for fi rmware updates and procedures. -
Page 14: Specifi Cations
SPECIFICATIONS Input Video Bandwidth..........2x 1.485 Gbps (Dual Link HD-SDI) Output Video Bandwidth..................6.6 Gbps Maximum Output Resolution..............1920x1200@60Hz HDMI Connector.................type A 19 pin female Audio Output............HDMI embedded audio & S/PDIF out Power Supply......................5V DC Shipping Weight......................5 lbs. Dimensions..................8.25”W x 1.75”H x 7.5”H...
