Gefen HDMI Super Booster Plus User Manual

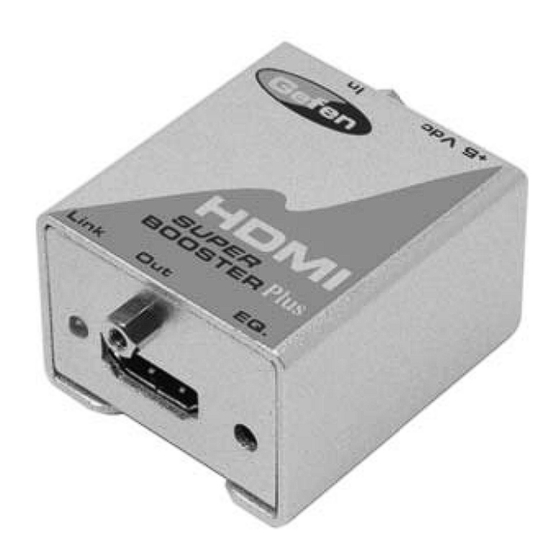

HDMI Super Booster PLUS
Extend the range of your copper HDMI cables -- up to 200 feet!
The new Gefen HDMI Super Booster Plus allows you to extend the reach of copper HDMI cables
up to 200 feet from the video source, while fully supporting High-Definition display protocols to
insure maximum compatibility with the way that high-definition signals are encoded today and in the
future.
With the new Plus model, improved DDC signal robustness is added, giving robustness to electrical
signals that negotiate delicate resolution and frequency settings, for even greater precision than
ever before.
How It Works
Simply attach your long HDMI extension cable to your video source, then place the HDMI Super
Booster Plus on the other end near the monitor. Attach the monitor's video cable to the other side
of the Booster and power-cycle all your equipment including video source and display. You should
then see a beautiful HDMI picture at the remote display as if it was right at the local video source.
Note: This device fully passes HDCP.
Features:
Fully HDCP and HDMI compliant
Compact, portable device
Wall-powered for extra amplification power
Based on proven Gefen Super Booster technology

Specifications:

Video Amplifier Bandwidth: 165 MHz
Input Video Signal: 1.2 volts p-p
Input DDC Signal: 5 volts p-p (TTL)
Single Link Range: 1080p/1920 x 1200
HDMI™ Connector: type A 19 pin female
Dimensions: 1.6"W x 1.1"H x 1.8"D
Shipping Weight: 1 lb.
Package Includes:
HDMI Super Booster device
5V DC Power Supply
User's Guide
Dystrybucja i sprzedaż: Meditronik Sp. z o.o.
02-952 Warszawa, ul. Wiertnicza 129, tel. (+48 22) 651-72-42, fax (+48 22) 651-72-46
http://www.meditronik.com.pl
EXT-HDMI-141SBP
