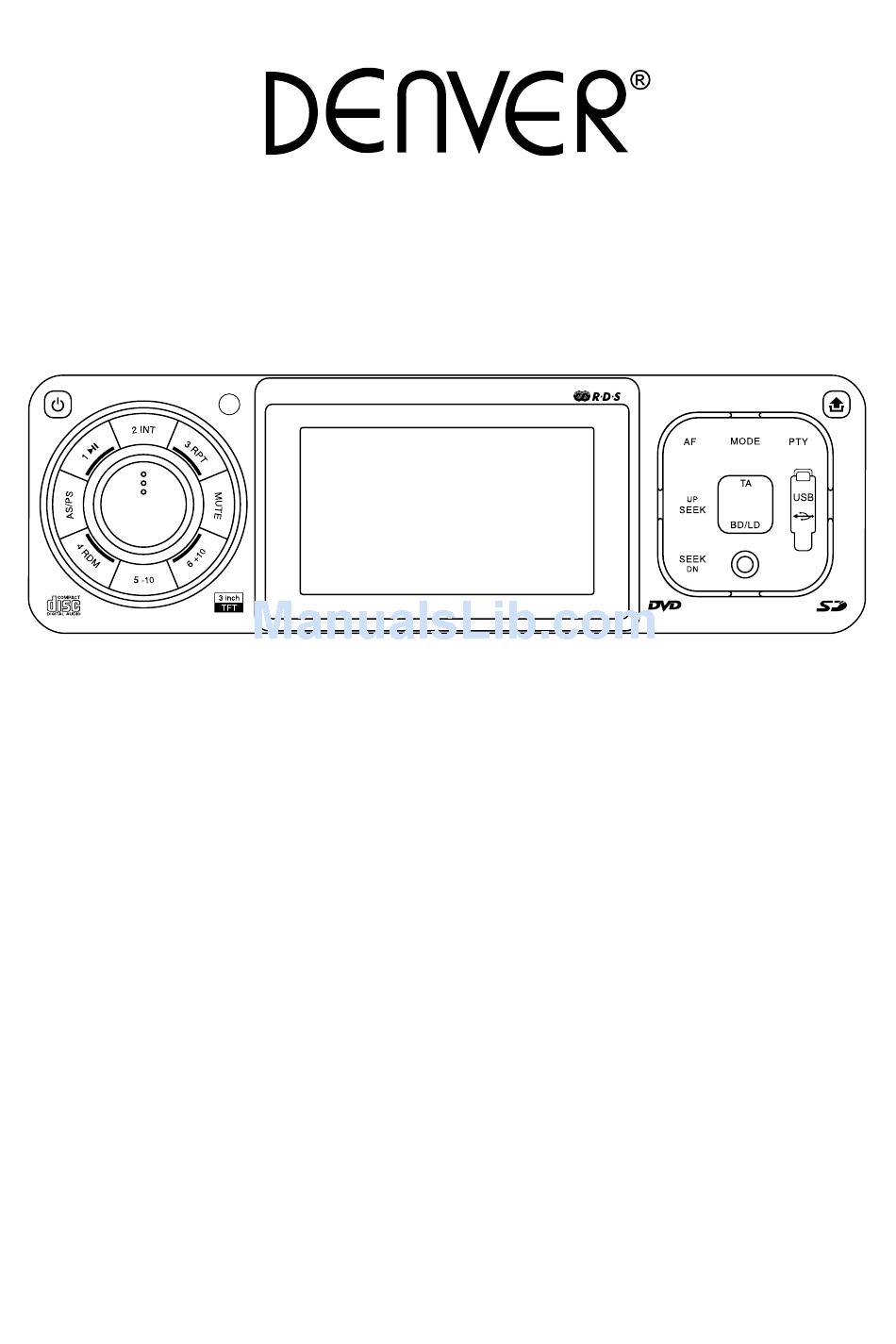

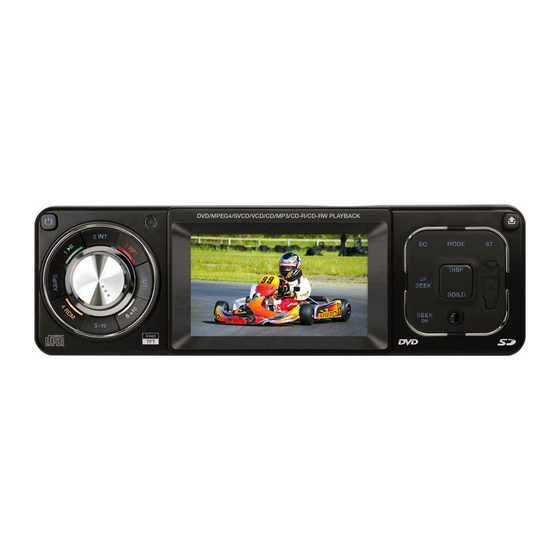

CAT-131 18 19 INSTRUCTION MANUAL Car Stereo DVD/SVCD/VCD/CD/MP3/MP4 Player with PLL FM Stereo Radio 3 (1-6) Radio Data System 3” (7,6cm) TFT-LCD Display USB / SD / MMC Card Input Front AUX IN Flip Down/Detachable Front Panel... -
Page 2: Before You Begin
BEFORE YOU BEGIN PRECAUTIONS: CAUTION: USE OF CONTROLS OR ADJUSTMENT OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. THE USE OF OPTICAL INSTRUMENTS WITH THIS PRODUCT WILL INCREASE EYE HAZARD. • Keep this manual handy as a reference for operating procedures and precautions. • Always keep the volume low enough so you can hear sounds outside of the car. • Protect this product from moisture. -
Page 3: Installation
INSTALLATION PRECAUTIONS • Choose the mounting location carefully so that the unit will not interfere with the normal driving functions of the driver. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight or hot air from the heater, or where it would be subject to dust, dirt or excessive vibration. -
Page 4: To Support The Unit
. UNIT TO SUPPORT THE UNIT . RELEASE CASE 3. DASH BOARD Dashboard 4. HEX NUT 5. LOCK WASHER 6. PLAIN WASHER 7. CAR BODY 8. REAR SUPPORT STRAP 9. TAPPING SCREW 0. M5 X 5 HEX BOLT WIRE CONNECTION IN / OUT CONNECTOR Video Out (1/2) : Yellow DVD Audio Out: White (L) Red (R) -
Page 5: Maintenance
DRIVING WITH VIDEO DISPLAY By following the installation below, video will always be shown on LCD screen no matter the car is in motion or not. Steps: Connect the GRAY wire to the WHITE wire. INSTALLING REAR CAMERA FOR PARKING/REVERSE MOTION You can install an separate camera at the car rear end so when doing parking or reverse motion, the unit will automatically switch the video to the rear camera to guide the driver. -
Page 6: Locations Of Parts (Main Unit)
LOCATIONS OF PARTS (MAIN UNIT) 18 19 18 19 3 (1-6) 1. POWER ON/OFF ( 2. SELECT FUNCTION BUTTON 3. PRESET STATIONS (1,2,3,4,5,6) 4. ‘AF’ FUNCTION BUTTON (ALTERNATIVE FREQUENCIES) 18 19 5. ‘TA’ FUNCTION BUTTON (TRAFFIC ANNOUNCEMENT) 6. ‘PTY’ FUNCTION (PROGRAM TYPE) 7. -
Page 7: Locations Of Parts (Remote Control)
LOCATIONS OF PARTS (REMOTE CONTROL) 1. POWER ON/OFF 2. MODE 3. PLAY/PAUSE 4. TITLE / PLAYBACK CONTROL 5. SELECT 6. SEEK+/SEEK- / CD TRACK/SEARCH 7. VOL +/VOL- 8. GOTO 9. AUDIO 10. ENTER 11. NAVIGATION 12. AUTO SEEK / PRESET SCAN / REPEAT 13. -
Page 8: General Operations
GENERAL OPERATIONS Turning the unit ON/OFF ( Press “ ” button to turn on unit. To turn off, press and hold the button again. Selecting a source (MODE) Press MODE repeatedly to switch between TUNER, CD/DVD, AUX, USB or SD/MMC mode. Loading a Disc 1. Press to open the front panel... -
Page 9: Using The Rds Function
Currently Tuned Station Storing and Recalling Frequencies If you press any of the NUMBER (1-6) you can easily store up to six broadcast frequencies for later recall with the touch of a button. 1. Choose a desired BAND. 2. When you find a frequency that you want to store in memory, press a NUMBER(1-6) and hold until the preset number shows and lit in the display. -
Page 10: Listening To Cd/Mp3/Wma
Finding the Beginning of Tracks During playback, press DN or UP. DN: Press to start playback from the beginning of the previous chapter or track. UP: Press to start playback from the beginning of the following chapter or track. Pause Playback During playback, press . Press again to resume playback. A-B Repeat Playback This feature allows you to loop playback a section of the movie starting from Point A to B. 1. Press the button to play the movie. 2. Once you have located the section you wish to playback on loop repeat, press and hold A-B button. You will see “Rep-A” on the screen. 3. -
Page 11: Playing Dvd/Video Cd/Mp4
PLAYING DVD/VIDEO CD/MP4 Playback 1. Insert a disc. When the disc offers a menu, the menu is displayed. When a disc already inserted, press MODE to switch to disc mode. 2. On DVDs and video CDs with playback control (PBC), menu screens may appear automatically. If this happens, perform the operation described below to start playback. CAUTION: Make sure that the Video TV system settings is set correctly according to your disc your playing. If you are not sure, leave it set to “Auto”. Improper setup of TV system might cause the video to stop/skip/pause playing although audio might continue to play. You can setup video TV settings using the SETUP feature of the remote control. Refer to “SETTING UP THE DVD PLAYER” section. DVD menu Press , , to select the desired item, then press Enter. -
Page 12: Customizing Audio / Video Settings
Changing the viewing angle during playback (Multi-angle) – (DVD only) With DVDs featuring multi-angle (scenes shot from multiple angles) recordings, you can switch among viewing angles during play-back. 1. Press and hold Angle on the remote control during playback of a scene. Title (DVD only) During DVD playback, press Title on remote control to return to FIRST title. Return to Root Menu (DVD only) During DVD playback, press and hold MENU on head unit or remote control to return to root menu. Note: Some DVD may not contain root menu. -
Page 13: Setting Up The Dvd Player
SETTING UP THE DVD PLAYER You can flexibly customize the unit to suit your preference. You can set the language and other video and audio settings so when playback starts it will always use your preferred settings. Important: 1. Load any disc into the unit before you can access the setup. 2. Press Setup on the remote control. 3. Use ( ) to return / enter category. Settings Category Options TV System NTSC, PAL, AUTO Auto Play ON, OFF TV Type... -
Page 14: Technical Specifications
All cities have established collection points, where electric and electronic equipment can either be submitted free of charge at recycling stations and other collection sites, or be collected from the households. Additional information is available at the technical department of your city. ALL RIGHTS RESERVED COPY RIGHT DENVER ELECTRONICS A/S www.denver-electronics.com EN3...
