Summary of Contents for Denver CAU-420
-

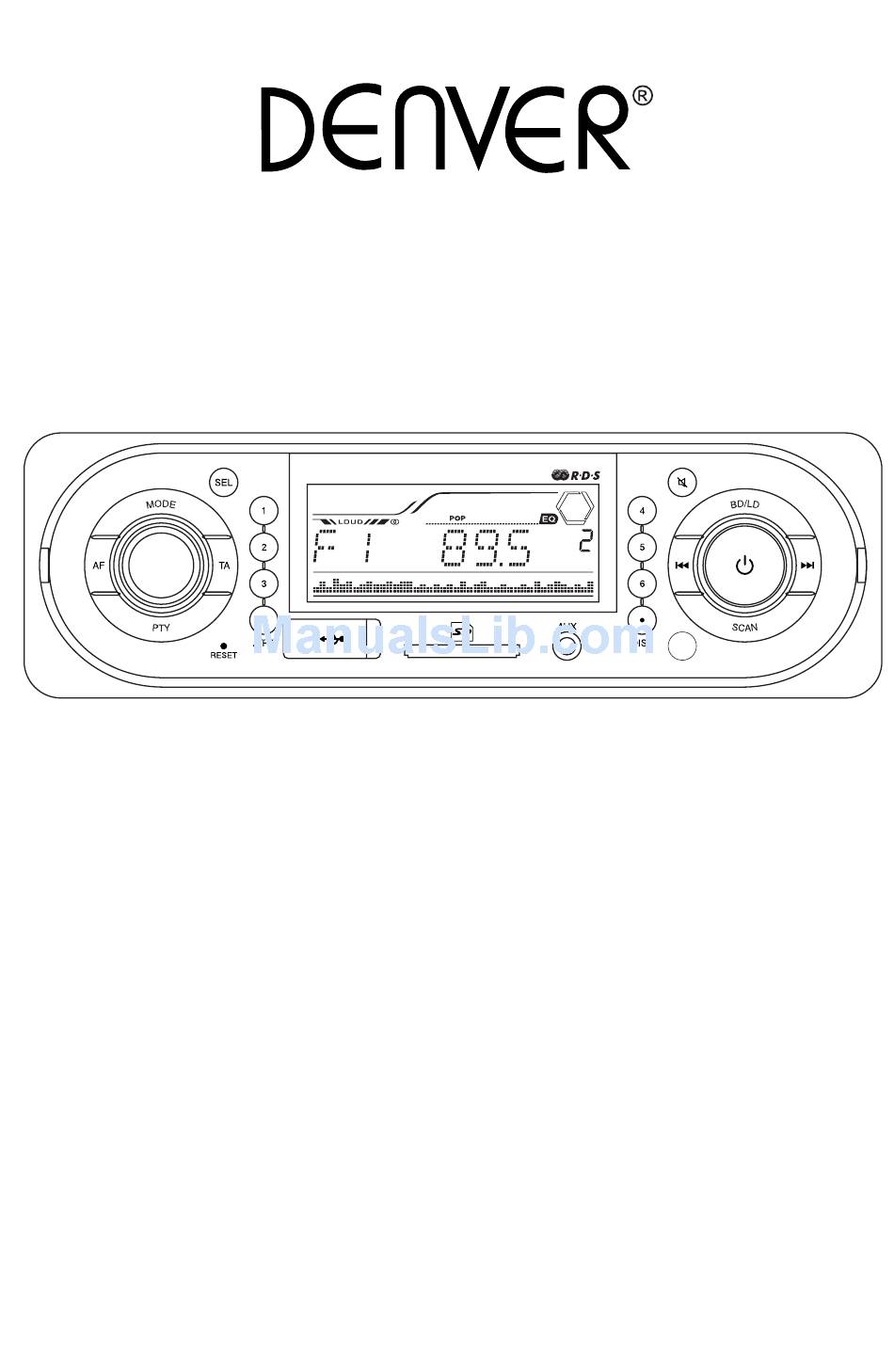

Page 1: Instruction Manual
CAU-420 (1-3) (4-6) 16 17 18 INSTRUCTION MANUAL CAR STEREO MP3/WMA PLAYER WITH PLL FM STEREO RADIO USB / SD/MMC / FRONT AUX INPUT... -
Page 2: Location Of Parts And Controls
LOCATION OF PARTS AND CONTROLS (1-3) (4-6) 16 17 18 1. POWER ON/OFF ( 2. FUNCTION SELECT BUTTON: CONTROLS FOR BASS/TREBLE/BALANCE/FADER / TA/PI/RE- TUNE/MASK/EON/BEEP/TA VOL/ADJ/DSP (SEL) 3. VOL UP/VOL DOWN BUTTON: CONTROLS FOR BASS/TREBLE/BALANCE/FADER / TA/PI/RE- TUNE/MASK/EON/BEEP/TA VOL/ADJ/DSP 4. PRESET STATIONS (1,2,3,4,5,6) 5. -
Page 3: Installation
INSTALLATION PRECAUTIONS • Choose the mounting location carefully so that the unit will not interfere with the normal driving functions of the driver. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight or hot air from the heater, or where it would be subject to dust, dirt or excessive vibration. • Use only the supplied mounting hardware for a safe and secure installation. 182mm • Be sure to remove the front panel before installing the unit. 53mm NOTE : Inclination angle for car radio installation must not exceed 30˚ otherwise the front panel will not open. 182mm 53mm Bend these claws, if necessay Note: Keep the release key in the safe place as you may need it in future to remove the unit from the car. TO SUPPORT THE UNIT UNIT RELEASE CASE DASH BOARD HEX NUT Dashboard LOCK WASHER PLAIN WASHER CAR BODY REAR SUPPORT STRAP TAPPING SCREW 10. -
Page 4: Operation
OPERATION POWER ON/OFF ( Press button to turn on the unit. To turn off, press and hold button. 2,3. FUNCTION SELECT BUTTON: BASS / TREBLE / BALANCE / FADER / TA / PI / RETUNE / MASK / EON / BEEP / TA VOL / ADJ / DSP Press the SEL button until the desired functions are shown on display. Figure 1 shows how to control functions that are selected using the SEL button. Fig. 1 Selection of sound control functions 1. - Page 5 ‘PTY’ function (PROGRAM TYPE) Each press of PTY button will toggle between PTY Music, PTY Speech and PTY Off. When PTY Music is selected, press Buttons (1-6) for desired program types. Unit automatically search for corresponding pro- grams. 1 Pop M, Rock M 2 Easy M, Light M 3 Classics, Other M 4 Jazz, Country 5 Nation M, Oldies 6 Folk M When PTY Speech is selected, press Buttons (1-6) for desired program types. Unit automatically search for corresponding pro- grams. 1 News, Affairs, Info 2 Sport, Educate, Drama 3 Culture, Science, Varied 4 Weather, Finance, Children 5 Social, Religion, Phone IN 6 Travel, Leisure, Document Tips: Since each button number can store multiple program types, i.e. Button 1 stores Pop and Rock music, to switch between Pop and Rock music, simply press button 1 repeatedly until the desired program type shows in display.
-
Page 6: How To Select Mp3/Wma Files
All cities have established collection points, where electric and electronic equipment can either be submitted free of charge at recycling stations and other collection sites, or be collected from the households. Additional information is available at the technical department of your city. ALL RIGHTS RESERVED COPY RIGHT DENVER ELECTRONICS A/S www.denver-electronics.com EN-6...
