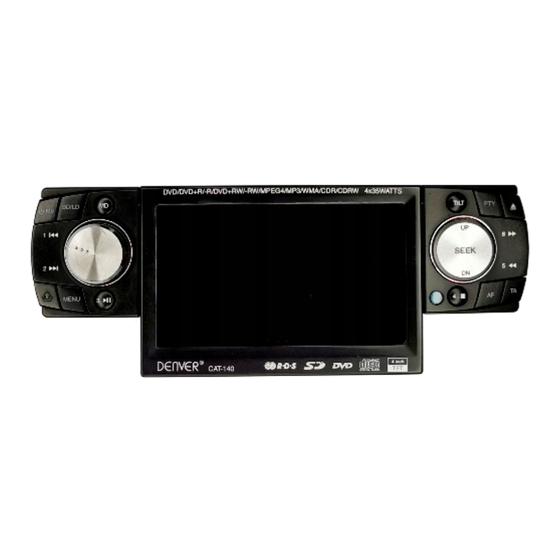

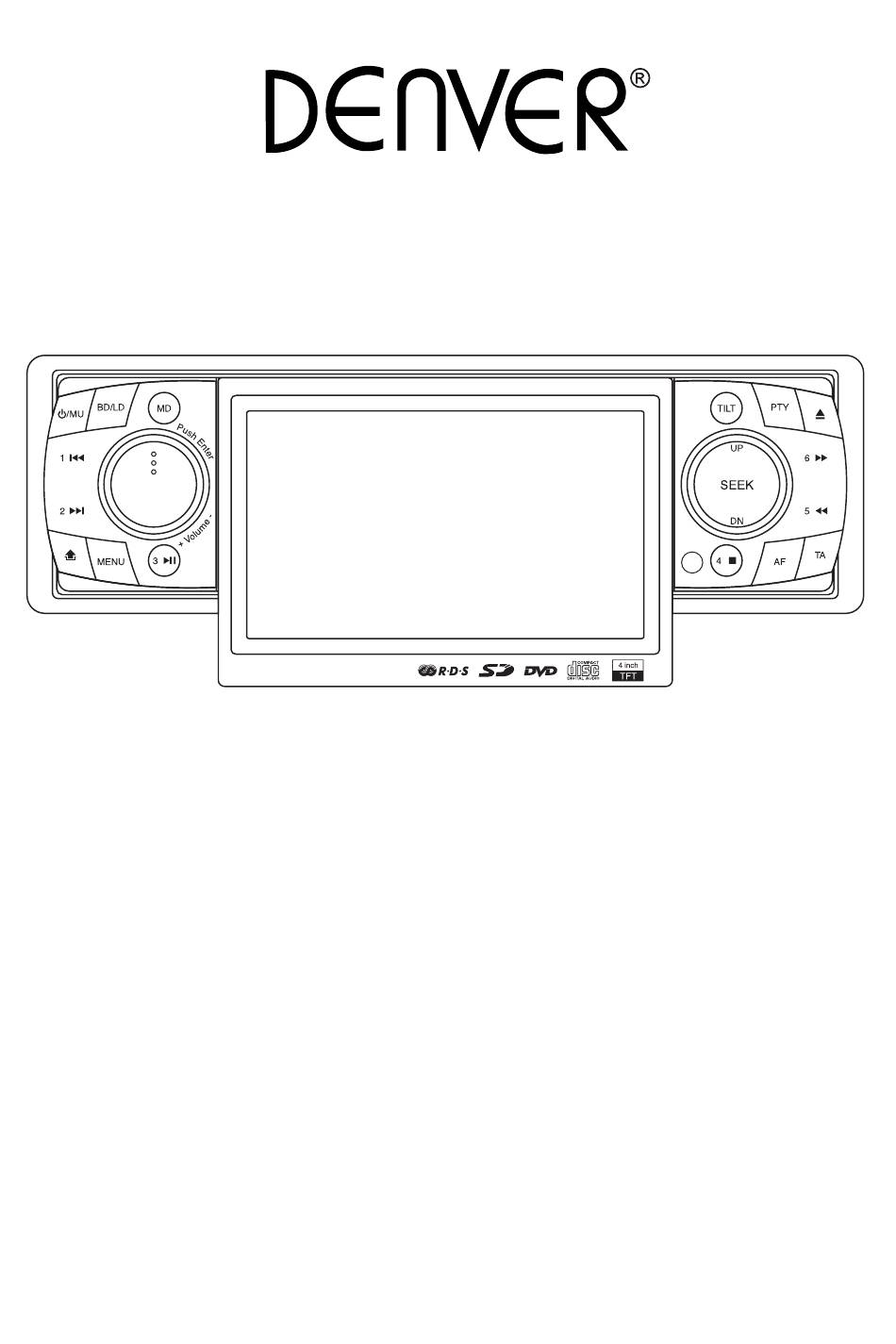

- Page 1 CAT-140 6 INSTRUCTION MANUAL Car Stereo DVD/SVCD/VCD/CD/MP3/MP4 Player with PLL FM Stereo Radio Radio Data System 5 8 4 Inch TFT-LCD Display (,,3) (4,5,6,) SD/MMC Card Input Slide Down/Detachable Front Panel RESET...
-
Page 2: Before You Begin
BEFORE YOU BEGIN PRECAUTIONS: CAUTION: USE OF CONTROLS OR ADJUSTMENT OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. THE USE OF OPTICAL INSTRUMENTS WITH THIS PRODUCT WILL INCREASE EYE HAZARD. • Keep this manual handy as a reference for operating procedures and precautions. • Always keep the volume low enough so you can hear sounds outside of the car. • Protect this product from moisture. -
Page 3: Installation
INSTALLATION PRECAUTIONS • Choose the mounting location carefully so that the unit will not interfere with the normal driving functions of the driver. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight or hot air from the heater, or where it would be subject to dust, dirt or excessive vibration. -
Page 4: To Support The Unit
TO SUPPORT THE UNIT . UNIT . RELEASE CASE 3. DASH BOARD Dashboard 4. HEX NUT 5. LOCK WASHER 6. PLAIN WASHER 7. CAR BODY 8. REAR SUPPORT STRAP 9. TAPPING SCREW 0. M5 X 5 HEX BOLT WIRE CONNECTION IN / OUT CONNECTOR Video Out (Yellow) : Yellow (Plug) DVD Audio Out (GRAY) Rear : White (L) Red (R) - Page 5 DRIVING WITH VIDEO DISPLAY By following the installation below, video will always be shown on LCD screen no matter the car is in motion or not. Steps: Connect the GRAY wire to the WHITE wire. INSTALLING REAR CAMERA FOR PARKING/REVERSE MOTION You can install an separate camera at the car rear end so when doing parking or reverse motion, the unit will automatically switch the video to the rear camera to guide the driver.
- Page 6 Locations of Parts (Main unit) 6 6 5 8 (,,3) (4,5,6,) (,,3) (4,5,6,) 1. POWER ON/OFF ( ) / MUTE 2. SELECT FUNCTION BUTTON 3. PRESET STATIONS (1,2,3,4,5,6) 4. ‘AF’ FUNCTION BUTTON (ALTERNATIVE FREQUENCIES) 5. ‘TA’ FUNCTION BUTTON (TRAFFIC ANNOUNCEMENT) (,,3) RESET RESET 6. ‘PTY’ FUNCTION (PROGRAM TYPE) 7. LOUDNESS BUTTON (LD) (,,3) 8. MODE BUTTON (MD) 9. BAND BUTTON (BD) 10. CD TRACK / SEARCH BUTTON 11. AUTO SEEK TUNING 12. MUTE BUTTON (MU) RESET 13. PANEL RELEASE BUTTON (...
- Page 7 Locations of Parts (Remote Control) 1. POWER ON/OFF 2. MODE 3. PLAY/PAUSE 4. TITLE 5. SELECT 6. SEEK+/SEEK- Title 7. VOL +/VOL- 8. KEYPAD 9. EJECT 10. AUDIO 11. ENTER 12. NAVIGATION 13. AUTO SEEK / PRESET SCAN / REPEAT 14. RANDOM / BAND / LOUD VOL+/- 15. DUAL 16. PROGRAM 17. TILT 18. SUBTITLE GOTO 19. SETUP 20. ANGLE 21. SLOW MOTION 22. ZOOM / A-B REPEAT 23. PLAYBACK CONTROL / STOP 24. ON SCREEN DISPLAY / GOTO 25. MUTE 26. MAIN MENU...
-
Page 8: General Operations
GENERAL OPERATIONS Turning the unit ON/OFF ( Press any button to turn on the unit. To turn off, press and hold “ ” button. Selecting a source (MODE) Press MODE repeatedly to switch between TUNER, AUX, SD/MMC and CD/DVD mode. Loading and Ejecting a Disc Important: Before loading or ejecting disc, please check if the LCD screen is inline with the front panel. This will prevent the screen from blocking the path when the disc is inserted or ejected. If it’s not inline, push the screen all the way until inline with front panel then press eject button. -
Page 9: Menu Settings
MENU SETTINGS Note: Press MENU repeatedly to exit the settings or leave it for few seconds and it will automatically return to normal mode. AUDIO SETTINGS 1. Press MENU. Select AUDIO and press VOL knob. 2. Rotate VOL knob and select the desired mode listed below: BASS : -10 - +10 TREBLE : -10 - +10 BALANCE : L - R FADER : F - R EQ : OFF, FLAT, CLASSICS, POP, ROCK 3 Rotate the VOL knob until the desired sound is obtained. Note: Press SEL on the remote control to setup Audio Settings. PICTURE SETTINGS 1. Press MENU. Select PICTURE and press VOL knob. -
Page 10: Clock Settings
CLOCK SETTINGS 1. Press MENU. Select CLOCK and press VOL knob. 2. To turn on clock display, press VOL knob until CLOCK switch to ON. 3. To set clock, rotate VOL knob to CLOCK ADJUST. Press VOL knob. 4. Rotate VOL knob to set hours. Press VOL knob to save. Do the same for minutes. LISTENING TO RADIO Band (BD) Pressing this key repeatedly will toggle cyclically between each band. FM1---FM2---FM3. Automatic or Manual tuning (SEEK UP / SEEK DN) When pressed short, these keys are operated as SEEK tuning mode. When pressed longer than 1 sec., they are operated as MANUAL tuning mode. - Page 11 ‘PTY’ Function (Program Type) 1. Press the PTY button to turn ON Program type. 2. The unit displays the program type with its corresponding number. Keep pressing the PTY button to see other program types. 3. Once you see your desired program, simply press the corresponding button number on the unit. LISTENING TO CD/MP3 Currently play track no. / Total no. of tracks Currently play folder no. / Track elapsed time Total no. of folder Track file names Folder name Playback 1. Forward or Reverse: Press and hold . Unit scans at the rate of (2 - 4 - 8 - 16 - 32) times. To resume normal playback at a desired point, press 2. Skip back or forward to another chapter: Press Pressing skips to the start of the next chapter. Pressing returns to the beginning of current track. 3. Pause / Resume playback: Press 4. Stop playback: Press Searching for particular track During playback, all track file names under a folder will be displayed on the screen with their corresponding track number. You can use the navigation keypad on the remote control to access the file.
-
Page 12: Playing Dvd/Video Cd/Mp4
SD/MMC Card Input 1. Power off head unit. 2. Press ( ) button to open the front panel. 3. Insert the SD/MMC card into the card slot (23). 4. Attach front panel back to the head unit. Playback starts automatically. PLAYING DVD/VIDEO CD/MP4 Playback 1. Insert a disc. When the disc offers a menu, the menu is displayed. When a disc already inserted, press MODE to switch to disc mode. 2. On DVDs and video CDs with playback control (PBC), menu screens may appear automatically. If this happens, perform the operation described below to start playback. CAUTION: Make sure that the Video TV system settings is set correctly according to your disc your playing. If you are not sure, leave it set to “Auto”. Improper setup of TV system might cause the video to stop/skip/pause playing although audio might continue to play. You can setup video TV settings using the SETUP feature of the remote control. Refer to “SETTING UP THE DVD PLAYER”... - Page 13 Repeat Playback FOR VCD 1. Press RPT on the remote control during playback. 2. Every time you press this button, the unit switches to the following settings: Repeat Track – Repeat the current playback track. Repeat Off – Turn repeat off. Note: PBC feature in VCD disc needs to be STOP in order to use Repeat playback. FOR DVD You can choose between repeat playback of a title or chapter. 1. Press RPT on the remote control during playback. 2. Every time you press this button, the unit switches to the following settings: Repeat Title – Repeat the current playback title. (Press and hold RPT button) Repeat Chapter – Repeat the current playback chapter. Repeat Off – Turn repeat off. A-B Repeat Playback This feature allows you to loop playback a section of the movie starting from Point A to B.
- Page 14 Changing the subtitle language during playback (Multi-subtitle) – (DVD only) With DVDs featuring multi-subtitle recordings, you can switch between subtitle languages during playback. 1. Press Sub-T on the remote control during playback. Press repeatedly until the supported desired subtitle appears. Note: •�� With some DVDs, switching between subtitles may only be possible using a menu display. With some DVDs, switching between subtitles may only be possible using a menu display. •��...
-
Page 15: Setting Up The Dvd Player
1. Press PROG button on the remote control. 2. Enter the title number first follow by the chapter number besides the memory location. Up to 20 locations can be stored. 3. When all tracks have been programmed, select PLAY and press ENTER. Program playback will start. 4. To clear all program entries, press PROG and select “CLEAR ALL”. 5. To stop program playback, press STOP button twice. SETTING UP THE DVD PLAYER You can flexibly customize the unit to suit your preference. You can set the language and other video and audio settings so when playback starts it will always use your preferred settings. Important: 1. Load any disc into the unit before you can access the setup. 2. Press SETUP on the remote control. Settings Category Options Language OSD LANG Subtitle Select preferred options appear on screen Audio DVD Disc Version View Version Display TV Display Normal/PS, Normal/LB, Wide TV Type Auto, NTSC, PAL Angle Mark On, Off Screen Saver On, Off Audio Downmix LT/RT, Stereo... -
Page 16: Technical Specifications
The materials are recyclable as mentioned in this marking. By recycling, material recycling or other forms of re-utilization of old appliances, you are making an important contribution to protect our environment. Please inquire at the community administration for the authorized disposal location. ALL RIGHTS RESERVED COPY RIGHT DENVER ELECTRONICS A/S E 13 024174 www.denver-electronics.com...
