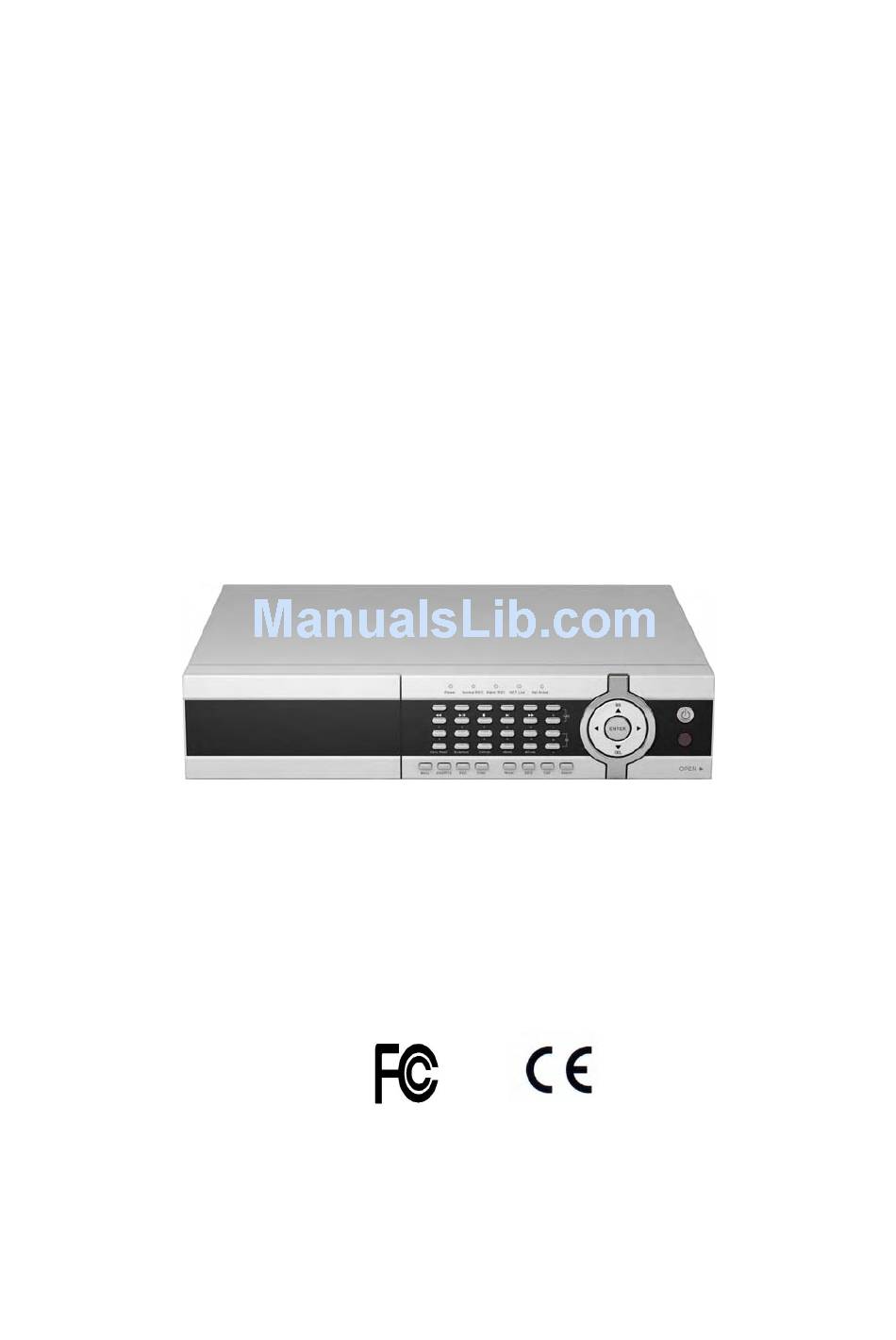

- Page 1 H.264 Digital Video/Audio Recorders User’s Manual 16-CH Models: 9-CH Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use.
- Page 2 CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE. PLEASE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. NOTE: This equipment has been tested and found to comply with the limits for a Class “A”...
-
Page 3: Limitation Of Liability
LIMITATION OF LIABILITY THIS PUBLICATION IS PROVIDED “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTIBILITY, FITNESS FOR ANY PARTICULAR PURPOSE, OR NON-INFRINGEMENT OF THE THIRD PARTY’S RIGHT. THIS PUBLICATION COULD INCLUDE TECHNICAL INACCURACIES OR TYPOGRAPHICAL ERRORS. - Page 4 PRECAUTIONS Please refer all work related to the installation of this product to qualified service personnel or system installers. Do not operate the appliance beyond its specified temperature, humidity or power source ratings. Use the appliance at temperatures between 0 C ~ +45 C (32 F ~ 113...
-
Page 5: Table Of Contents
Table of Contents 1. Product Overview················································································ 1.1 Features·························································································· 2. Panels And Remote Controller····························································· 2.1 Front Panel······················································································ 2.2 Back Panel······················································································ 2.3 Remote Controller············································································ 3. Installations························································································· 3.1 Basic Connections············································································ 3.2 Optional Connections······································································· 4. Main Screen And Basic Operations······················································· 4.1 Text Input························································································ 4.2 Login And Logout············································································ 4.3 Basic Operations··············································································... - Page 6 6.10.2 Advanced Network Setup························································ 7. PTZ Control························································································· 8. Search/Playback/Archive (Administrator/Supervisor) ························· 8.1 Search By Time··············································································· 8.2 Search By Event / Log Display·························································· 8.3 Search Archived Files······································································· 8.4 Playback/Archive For Search By Time··············································· 8.5 Playback/Archive For Search By Event·············································· 8.6 Playback For Archived Files····························································· ·····························································...
-
Page 7: Product Overview
1. Product Overview The H.264 digital video/audio recorders are designed for use within a surveillance system and are a combination of a hard disk recorder, a video multiplexer, and a web server. To achieve the highest inter-connectivity and inter-operability, this series of digital video/audio recorders are all based on industry-leading front-end to back-end surveillance infrastructure. -
Page 8: Panels And Remote Controller
2. Panels and Remote Controller 2.1 Front Panel 1. Front Door Conceal Hard Disk Tray (and internal DVD for DVD models). For internal DVD, please open the front door in order not to block the tray from ejecting, esp. while it’s in backup process. - Page 9 8. SEARCH Button Press this button to display the search menu in main screen display. In some dialogs, this button is used as a miscellaneous function key. 9. CALL Button Press this button to switch to or return from full screen display of the focus camera in main screen display.
- Page 10 control, press this button to tilt up the camera. In text editing mode, this button is used as “backspace” key. 20. Down/DEL Button (▼/DEL) Press this button to move the cursor or focus window in most circumstances. In PTZ control, press this button to tilt down the camera. In text editing mode, this button is used as “del”...
-
Page 11: Back Panel
2.2 Back Panel 1. Video Input Connectors (1-16/1-9) Connect system cameras to these BNC connectors. The corresponding 75Ω termination （see # 5） must be made unless the video output terminal is connected. 2. Video Output Connectors (1-16/1-9) Connect these BNC connectors for looping the corresponding camera video inputs. 3. - Page 12 11. RS-422/485 Selector Switch Used to select RS-422/485 3-line or 2-line. 12. RS-422/485 Connector Connect this connector to RS-422/485 compatible PTZ camera(s) or keyboard. Please set the Selector Switch correctly. Please refer to the manuals that come with the RS-422/485 compatible devices for the correct settings. Please refer to Appendix D the Keyboard Control Protocol for the digital video recorder.
-
Page 13: Remote Controller
2.3 Remote Controller The remote controller is an optional accessory to ease the user’s operations. You can do all the operations by the remote controller instead of the buttons on the front panel. The effective distance is about 10 meters without any obstacle. DVR ID selection buttons 1. -
Page 14: Installations
3. Installations The installations described below should be made by qualified service personnel or system installers. 3.1 Basic Connections Please refer to the following diagram for the connections. Please make sure to set the NTSC/PAL Selector Switch on the back panel according to the local TV system for the digital video/audio recorder to work correctly. -
Page 15: Optional Connections
Before connection After connection Power Plug 115 VAC or 230 VAC power source into the power socket. 3.2 Optional Connections Audio inputs Connect the audio input connectors to the audio line-outs from system cameras or other audio sources. Please make sure to associate the audio inputs with the cameras in Camera Setup as described in Section 6.2 accordingly. - Page 16 USB 2.0 disk drives, DVD+RW, card reader, etc. If the user wants to use USB2.0 peripheral device to retrieve important recorded images and/or audio, please connect it to the USB port connectors (one on the front panel, the other on the back panel). I/R remote controller If there are more than one digital video/audio recorders to be controlled by the I/R remote controller, please set the DVR ID on the front panel.
- Page 17 Set this unit to 3-line or 2-line according to the connected devices. For 4-line devices (such as keyboard) Devices TxD- TxD- TxD+ TxD+ RxD- RxD- RxD+ RxD+ For PTZ cameras Devices TxD- RS485- TxD+ RS485+ RxD- RxD+ MAIN-AUX monitor Please refer to the diagram below to connect the MAIN-AUX monitor output connector to a surveillance TV monitor or the MAIN-AUX monitor input connector of another digital video/audio recorder.
- Page 18 CALL-AUX monitor Please refer to the diagram below to connect the CALL-AUX monitor output connector to a surveillance TV monitor or the CALL-AUX monitor input connector of another digital video/audio recorder. The CALL-AUX monitor, if enabled, has the same output display as the call monitor, and is typically used with RS-485 keyboard controller for distant monitoring and control (e.g.
-
Page 19: Main Screen And Basic Operations
4. Main Screen And Basic Operations The split-window screen, as shown above, is the main screen after system startup. There are several types of split-window screens, including 1-Window, 4-Window, 7-Window, 9-Window, 10-Window, 13-Window, and 16-Window. The system will remember the last one before normal shutdown (as described in Section 5.7) of the system. -
Page 20: Login And Logout
(3) Press code in text editing mode to change text case. (If this entry can accept number only, pressing code will have no effects.) Indicators on the screen show the current setting: 123 = Number only abc = No capital letters ABC = All capital letters CODE = Internal code for the selected language, such as Chinese, Japanese, etc. -
Page 21: Basic Operations
There is one factory-preset login name/password aa/11 at Administrator level. The user can use it to login the system for the first time. Should the user have forgotten all the administrator-level passwords, please contact the local dealer or installer to recover from it. 4.3 Basic Operations The basic user’s operations after he/she has logged into the system are described below: Numeric (ENTER) -
Page 22: Digital Zoom
In split-window display, press this button to enter PTZ control mode if the focus camera is a PTZ camera. In full screen display, press this button to enter Digital Zoom mode. Please refer to Section 4.4 Digital Zoom for the detailed operations in Digital Zoom mode. ▲▼◄►... -
Page 23: Menu Display
ENTER Press this button to zoom in the zoom window, from X1 to X2 or from X2 to X4, if the zoom window is shown in the video window. Press this button to (a) show/hide the zoom window if the current zoom factor is X1/X2, or (b) zoom out the video window back to zoom factor X1 if the current zoom factor is X4. -
Page 24: Status Display
5.1 Status Display In Menu display, press ▲▼ to change the highlighted option to Status, and then press ENTER to call up Status display as shown. Status display includes Alarm Recording Status, Normal Recording Status, Camera Status, Alarm Input Status, Product Serial Number, and Product Version Number. Press ESC to escape from Status display, and return to Menu display. -
Page 25: Video Adjustment
5.3 Video Adjustment In Menu display, press ▲▼ to change the highlighted option to Video Adjustment, and then press ENTER to call up Video Adjustment display as shown. There are 4 items which can be adjusted, including Brightness, Contrast, Hue, and Saturation. The operations are as below: ▲▼... -
Page 26: Vga Display
5.4 VGA Display In Menu display, press ▲▼ to change the highlighted option to VGA Display, and then press ENTER to call up VGA Display dialog as shown. There are 5 items which can be adjusted, including Resolution (1280x1024, 1024x768, 800x600, 640x480), Brightness, Contrast, Hue, and Saturation. -
Page 27: Backup Device
5.5 Backup Device In Menu display, press ▲▼ to change the highlighted option to Backup Device, and then press ENTER to call up Backup Device display as shown below. The system supports internal DVD for Internal DVD models and a variety of USB 2.0 storage devices, including Storage Disk such as USB 2.0 storage disk drives and DVD Disc (including DVD+RW, DVD+R, and... - Page 28 Note 4: Some backup devices may have compatibility problems. Please contact your local dealer or installer for the supported devices. Note 5: For internal DVD, please open the front door in order not to block the tray from ejecting, esp. while it’s in backup process. Blocking the tray from ejecting may damage the DVD writer.
-
Page 29: Software Upgrade (Administrator)
Verbatim DVD+RW 1-4X 5.6 Software Upgrade (Administrator) In Menu display, press ▲▼ to change the highlighted option to Software Upgrade, and then press ENTER to call up Software Upgrade display as shown. The operations are as below: ▲▼◄► Press these buttons to select the items. Press this button to escape from this screen, and return to Menu display. -
Page 30: System Shutdown (Administrator)
5.7 System Shutdown (Administrator) In Menu display, press ▲▼ to change the highlighted option to Shutdown, and then press ENTER to shutdown the system. A confirmation dialog will be shown on the screen, press ENTER to confirm the shutdown. The system will save all the files and all the states, and then display a power-off message in the rolling screen message area. -
Page 31: Pre-Camera Setup
If the user wants to reset all the settings to factory default values, he/she may press ▲▼ to change the highlighted option to Factory Defaults, and then press ENTER. A confirmation dialog will be shown, press ENTER again to make the changes, ESC to not do it. 6.1 Pre-Camera Setup In Setup Menu display, press ▲▼... - Page 32 Installed – whether this camera is installed or not. If installed, the following items will be settable. Press ENTER to check/uncheck this item. The default setting is “ˇ” - checked. PTZ ID – the PTZ ID of this camera if it’s a PTZ camera. The PTZ ID has to be consistent with the setting of this camera.
-
Page 33: Camera Setup
6.2 Camera Setup In Setup Menu display, press ▲▼ to change the highlighted option to Camera, and then press ENTER to call up Camera Setup display as shown. The Camera Setup allows the administrator to define the attributes for each camera. There are up to 16, 9 cameras which can be connected to the system. - Page 34 Video Loss Settings.. – used to setup the action settings when video loss is detected for this camera. Press ENTER in Settings.. to call up Video Loss Setup display for the camera. Please refer to Section 6.2.1 for the details. Motion Detection –...
-
Page 35: Video Loss Setup
6.2.1 Video Loss Setup In Camera Setup, press ENTER to call up Video Loss Setup of the selected camera as shown when the highlighted option is Video Loss Settings.. of the camera to setup. The Video Loss Setup allows the administrator to define how the system responds to the detected video loss for the camera. -
Page 36: Motion Setup
Alarm Out – to define which Alarm Output will be triggered when video loss of this camera is detected. Press +/- buttons to select none (N/A) or one of the Alarm Outputs (1-4). Buzzer – to activate the internal Buzzer or not when video loss of this camera is detected. Press ENTER to check/uncheck this item. - Page 37 Press this button to escape from this screen, and return to Camera Setup display. If the Save dialog is shown, press ENTER to exit and save, ESC to exit without saving. Following is a brief description for each item and its specific operations: Duration –...
- Page 38 Following is a brief description for the operations: Numeric Press these buttons to select the camera. ▲▼◄► Press these buttons to move the Mask window. Press these buttons to resize the Mask window. ENTER Press this button to set/reset the area under the Mask window. MODE Press this button to set/reset the whole video area.
-
Page 39: Alarm Setup
6.3 Alarm Setup In Setup Menu display, press ▲▼ to change the highlighted option to Alarm, and then press ENTER to call up Alarm Setup display as shown. The Alarm Setup allows the administrator to define the attributes for each alarm input, and the actions if it’s triggered. There are up to 16 alarm inputs which can be connected to the system. - Page 40 Duration – response duration to define at most how long (in seconds) the Alarm Out relay and the Buzzer will keep being triggered after this alarm input is triggered. However, the Alarm Out relay and the Buzzer will be reset immediately once this alarm input returns to normal.
-
Page 41: Seq Display Setup
6.4 SEQ Display Setup In Setup Menu display, press ▲▼ to change the highlighted option to SEQ Display, and then press ENTER to call up SEQ Display Setup as shown. The SEQ Display Setup allows the administrator to define the display pages in SEQ Display for main monitor and call monitor. - Page 42 In Display Page Setup, the split window display for the current page is shown. And the title of the camera for the focus window . Following is a brief description is highlighted for the operations: ▲▼◄► Press these buttons to move the focus window. Numeric (ENTER) Press these buttons to change the camera for the focus window.
-
Page 43: Scheduled Record Setup
6.5 Scheduled Record Setup In Setup Menu display, press ▲▼ to change the highlighted option to Scheduled Record, and then press ENTER to call up Scheduled Record Setup as shown. The Scheduled Record Setup allows the administrator to define when and how to record for the system. -
Page 44: Hdd Setup
Normal – normal record mode, including No, V (Video only), or A/V (Audio/Video). Press +/- buttons to change the value. 6.6 HDD Setup In Setup Menu display, press ▲▼ to change the highlighted option to HDD, and then press ENTER to call up HDD Setup as shown. In the surveillance applications, alarm video/audio is much more important than normal video/audio. -
Page 45: Hdd Format/Clear
Auto Overwrite – automatic overwrite of the recorded video/audio from HDD#1 when the Alarm/Normal Record disk drive capacity reaches the end of the last HDD. If Auto Overwrite is disabled and the Alarm/Normal Record disk drive capacity reaches the end, the system will not overwrite the recorded video/audio, and hence not record Alarm/Normal video/audio, until the user presses the Alarm Reset button. - Page 46 Each of the HDDs must be formatted before it can be used to record video/audio. The HDD Format/Clear screen allows the administrator to format and/or clear each HDD, and set the size for Alarm Record partition and Normal Record partition for each HDD. Please note that the HDD IDs for the internal HDDs in the DVR start from ID 1, lower for IDE and higher for SATA, and the HDDs in the farthest Hard Disk Box have the lowest HDD ID next to internal HDDs.
-
Page 47: Advanced Hdd Setup
contents will be cleared. Press this button to escape from this screen, and return to HDD Setup display. If the Save dialog is shown, press ENTER to exit and save, ESC to exit without saving. Following is a brief description for each item and its specific operations: Alarm Recording HDD –... -
Page 48: Removable Hard Drive
Buzzer – to activate the internal Buzzer or not when the HDD is failed. Press ENTER to check/uncheck this item. The default setting is “ˇ” - checked. Log – to log to event logs or not. Press ENTER to check/uncheck this item. The default setting is “ˇ”... -
Page 49: System Setup
There are three password levels in the system, including Administrator (highest), Supervisor, and Operator (lowest). The Operator can operate live video display, the Supervisor live video display, image playback and archive, and the Administrator everything. The system allows up to 18 user accounts. There is one factory-preset login name/password aa/11 at Administrator level. - Page 50 The System Setup allows the administrator to set the system time, time zone, time synchronization, language, etc. The general operations are as below: ▲▼◄► Press these buttons to select the items. Press this button to escape from this screen, and return to Setup Menu display. If the Save dialog is shown, press ENTER to exit and save, ESC to exit without saving.
-
Page 51: Rs-232/422/485 Setup
Date – system date. Press +/- buttons to modify each of these items. Time – system time. Press +/- buttons to modify each of these items. Display Format – format used for the system time displayed on the lower-left corner of the main screen. -
Page 52: Network Setup
Parity – (Odd, Even, or None). Press +/- buttons to change the value. 6.10 Network Setup In Setup Menu display, press ▲▼ to change the highlighted option to Network, and then press ENTER to call up Network Setup as shown. The Network Setup allows the administrator to setup all Ethernet network related parameters. -
Page 53: E-Mail Setup
Input method described in Section 4.1 to modify these items. Username – PPPoE username for the system if PPPoE is used. Please follow the Text Input method described in Section 4.1 to modify this item. Password – PPPoE password for the system if PPPoE is used. Please follow the Text Input method described in Section 4.1 to modify this item. -
Page 54: Advanced Network Setup
The general operations are as below: ▲▼ Press these buttons to select the items. Press this button to escape from this screen, and return to Network Setup display. If the Save dialog is shown, press ENTER to exit and save, ESC to exit without saving. Following is a brief description for each item and its specific operations: SMTP Server –... -
Page 55: Ptz Control
The general operations are as below: ▲▼ Press these buttons to select the items. Press this button to escape from this screen, and return to Network Setup display. If the Save dialog is shown, press ENTER to exit and save, ESC to exit without saving. Following is a brief description for each item and its specific operations: Control Port –... - Page 56 ◄► Press these buttons to pan the camera left/right. ZOOM ( ) +/- Press these buttons to zoom in/out the camera. GOTO Press this button to move the camera to the preset position. Press numeric buttons 00-99 to enter the number of the preset position to move the camera to. NEXT Press this button for the next miscellaneous function.
-
Page 57: Search/Playback/Archive (Administrator/Supervisor)
8. Search/Playback/Archive (Administrator, Supervisor) There are five ways to search the recorded video/audio for playback: (a) Search by time, (b) Search by event, (c) Search archived files In split-window display, press SEARCH button to call up Search Menu display as shown. The user’s operations are described as the followings: ▲▼... -
Page 58: Search By Event / Log Display
Play Button ( Press this button to start playing the recorded video/audio with the selected search time and video/audio type. If there’s no camera in playback mode, up to 4 cameras in the current split window will be set to playback mode. Copy Button ( Press this button to backup (copy) the selected type of recorded video/audio starting from the Search Time (described below) in the HDD to the connected backup device without... - Page 59 The general operations are as below: ▲▼◄► Press these buttons to select the items. Press this button to escape from this screen, and return to split-window display. MODE => Refresh Press this button to refresh the log display. If there are new event logs after the screen is last updated, the log list shown will be updated accordingly.
-
Page 60: Search Archived Files
8.3 Search Archived Files The screen for Search Archived Files is shown below: The operations are as below: ▲▼◄► Press these buttons to select the items. Press this button to escape from this screen, and return to split-window display. Following is a brief description for each item and its specific operations: USB Device –... -
Page 61: Playback/Archive For Search By Time
8.4 Playback/Archive For Search By Time In split-window display, press MODE button to change circularly the live/playback mode for the focus window and the other windows that form a rectangle on the screen. The video windows for the windows in playback mode are grayed, while those in live mode display live video. - Page 62 Following is a brief description for the operations in Backup display: ▲▼◄► Press these buttons to select the items. Copy Button ( Press this button to start backup (copy) or apply the revised settings if it’s copying, and return to the previous display. There will be a Copy icon on the lower-right corner indicating that the selected video/audio is being archived to the storage device.
-
Page 63: Playback/Archive For Search By Event
Except the playback buttons, the user can still do all the other operations in split-window display as if there is no playback. Please refer to Section 4.3 Basic Operations for the operations of the other buttons. 8.5 Playback/Archive For Search By Event In Log display, press ENTER to enter Event Playback display of the selected event log, or press Play Buttons ( ) to playback it directly. - Page 64 Will playback the area 4 channels only, the other channels are real time. You may change each channel position: Move the cursor to the position you like and press the channel number. 8.7.2 Playback by 1ch Mode -> Search -> by Time/by Event/by Archived Files -> Play -> move to the channel you want to playback Will playback the channel only, the other channels are real time.
-
Page 65: Pc Remote Access
9. PC Remote Access The digital video/audio recorder can be accessed by using a web browser installed on a PC if this unit is connected to a network, either internet or intranet. Before Logging On Before accessing this unit through web browser, please make sure the followings (For most PCs, only step 4 &... - Page 66 Logon After the above-mentioned items have been done correctly, restart your web browser and enter the domain name or IP address (EX. http://192.168.1.100 if HTTP port is 80, or http://192.168.1.100:800 if HTTP port is 800) of the digital video/audio recorder in the Location/Address field of the web browser.
- Page 67 Note 1: The frame rate is limited by the bandwidth of the network and the pre-record IPS of the camera (Section 6.2). Note 2: The picture quality depends on the recording resolution and recording quality of the camera (Section 6.2). When the user leaves I.E., he/she may be asked to save changes to files, please click on OK or Yes to save the changes.
- Page 68 Click on this icon to backup video/audio, and the Backup dialog will be shown. Please select the DVR, cameras, event type, destination directory, execution time, and data range, and then click on “Apply” or “OK” to backup, or “Cancel” to cancel. Please note that Execution of “Now”...
- Page 69 Status indicators for alarm inputs 1-16 (GREEN for normal, RED for alarm) for the selected DVR. Alarm Out Alarm outputs 1-4 (GREEN for normal state, RED for triggered state) for the selected DVR. For Administrator, click on any of these icons to control the corresponding alarm output from normal to triggered, or from triggered back to normal.
- Page 70 Device Name – any meaningful name for the (DVR) device. Address – IP address or URL domain name for the (DVR) device. It should be the same as the IP address (for Static IP) or URL (for PPPoE) in Network Setup for the (DVR) device.
- Page 71 IBM PC/AT compatible. Intel ® Pentium ® 4, 1.7 GHz or above. MicroSoft ® Windows ® XP, Windows ® 2000 with SP4, or Windows ® Vista. Monitor 1024 x 768 or above. Memory (DRAM) 512MB, or 1024MB for Windows ® Vista. Network Interface Ethernet, 10/100 Base-T.
-
Page 72: G~3.5G Pda/Mobile Phone Remote Access
10. 2G~3.5G PDA/Mobile Phone Remote Access The digital video/audio recorder can also be remotely accessed by using a web browser installed on a PDA or mobile phone that (1) supports xHTML and MJPEG file format, and (2) has screen resolution at 320x240 or above. Please enter the domain name or IP address of the digital video/audio recorder in the Location/Address field of the web browser, and the remote login display will be shown. -
Page 73: Appendix A--Ms-Windows Hem Player
Appendix A--MS-Windows HEM player There are several MS-Windows utility programs in the bundled CD, HEM Player, Keyboard Control Simulator, and M4V/H.264 to AVI Conversion Utility. The HEM Player is meant to play archived/backup files on local PC. The AVI Conversion utility converts H.264 files to standard *.AVI files. - Page 74 The user may print the whole player screen (including the current video image) or the current video image by selecting File menu, and then select Print or Print Video respectively. M4V/H.264 to AVI Conversion Utility To run the M4V/H.264 to AVI Conversion Utility under MS-Windows, please select Start->Programs->Hyper Electronics Mappers->M4V2AVI or double-click on the file AVI_Converter.EXE, and the screen will be shown as below.
-
Page 75: Appendix B--The Mouse Operation Interface Reference
Appendix B--The mouse operation interface reference When you use the mouse operations of the DVR please move the cursor to screen bottom, you will see the icons of mouse function displayed, and press the diagram mark to choose an operation you need.. Under Control mode in the PTZ, please pick out to install channel of camera, put the mouse and move the direction, press left key of mouse and can immediately turn to move, The diagram object function and the front panel key or the remote control key function are basic and similar, The function shows as follows:... - Page 76 B-1 Motion detection setup Move the cursor to Menu －＞ Setup －＞ Camera －＞ Motion setting －＞ Detection setting Move the cursor to screen below, the icons of motion detection will be displayed. Set/Reset Set/Reset Sensitivity Test highlighted area whole area B-2 PTZ setup and control Menu－＞...
- Page 77 Go to Figure down Zoom Figure up Preset Focus Auto Focus Iris position Auto pan Speed Mark B-3 Video adjustment icons This camera default All camera default Default B-4 Common icons For each set up field/submenu, you may find these icons for operation: Down Enter Code...
- Page 78 Text input Digital input “123”/”abc”/”AB C” input switch Click the , it will appear the following symbol table for selection:...
-
Page 79: Appendix C - Specifications
Appendix C – Specifications O.S. Embedded Linux 2.6 Sixfold operation - simultaneous record, live, System Multiplex playback, backup, control, & remote access Certification FCC, CE, LVDS, etc. Format NTSC/EIA or PAL/CCIR Input 16/9-CH, BNC, 1Vp-p/75ohm BNC x 1, 1Vp-p/75ohm Main monitor VGA D-SUB 15-pin connector Main-AUX BNC x 2 (Input x 1, Output x 1), 1Vp-p/75ohm... - Page 80 Output 2 Normally Open, 2 Normally Closed relay output Buzzer Triggered by Sensor input, Video loss, & Motion Event log Ethernet 1 RJ-45 10/100BaseT Ethernet connector Remote setup, monitoring, backup, alarm notification, 1 I.E. for up to 4 DVRs E-mail Alarm notification to stationary or mobile devices Video 1/4/9/16 split-window &...
-
Page 81: Appendix D - Times Zone Table
Appendix D – Time Zone Table Time Zone Offset Start Samoa GMT – 11:00 Hawaii GMT – 10:00 ˇ Alaska GMT – 09:00 Mar, 2nd Sun, 2:00 Nov, 1st Sun, 2:00 ˇ Pacific Time (US & Canada) GMT – 08:00 Mar, 2nd Sun, 2:00 Nov, 1st Sun, 2:00 Arizona, US Mountain... - Page 82 ˇ Baku, Tbilisi, Yerevan GMT + 04:00 Mar, last Sun, 2:00 Oct, last Sun, 3:00 Time Zone Offset Start Kabul GMT + 04:30 ˇ Ekaterinburg GMT + 05:00 Mar, last Sun, 2:00 Oct, last Sun, 3:00 Islamabad, Karachi, Tashkent GMT + 05:00 Chennai, Mumbai, New Delhi GMT + 05:30 Kathmandu...
-
Page 83: Appendix E - Recording Table
Appendix E – Recording Table NTSC Recording Time (in Hour) - For Reference Only System Storage (GB): 200 Average Recording Rate (IPS) Resolution Quality Picture Size (KB)* 240 120 60 27.7 720x480 (Full D1) 24.5 21.0 18.4 14.0 11.3 111 241 1443 146 331 1984... - Page 84 PAL Recording Time (in Hour) - For Reference Only System Storage (GB): 200 Average Recording Rate (IPS) Resolution Quality Picture Size (KB)* 200 100 50 12.5 720x576 36.0 (Full D1) 32.0 27.3 21.3 18.3 14.7 10.0 111 222 1389 146 304 1903 231 473 946 1478 2955...
-
Page 85: Appendix F - Compatible Hdd List Table
Appendix F– Compatible HDD List The other HDDs, please test by yourselves. For 4ch DVR suggest Max 500G HDD only. Item Serial No. Size(GB) Drive WD5000AVJS-63YJAO WD3200JB (CARIAR-SE) WD2000JB-00GVC0 WD1600AAJB-00WRA0 WD2000JB-00KFA0 WD2500JB-00REA0 WD5000AACS-WD Caviar GP SATA WD5000AAKS-WD Caviar SE16 SATA WD7500AACS-WD Caviar GP SATA WD10EACS-WD Caviar GP... - Page 86 Seagate ST37500330AS, Barracuda 7200.11 SATA Seagate ST380815AS, Barracuda 7200.10 SATA Seagate ST3500320AS Barracuda 7200.11 SATA Seagate ST31000340AS-Barracuda 7200.11 1000 SATA SAMSUNG HA200JC...
