Power Up Sequence - Open Date IQ User Operating Instructions Manual

Please read the Thermocode iQ Power Supply Manual before Powering up the printer system for the
first time.

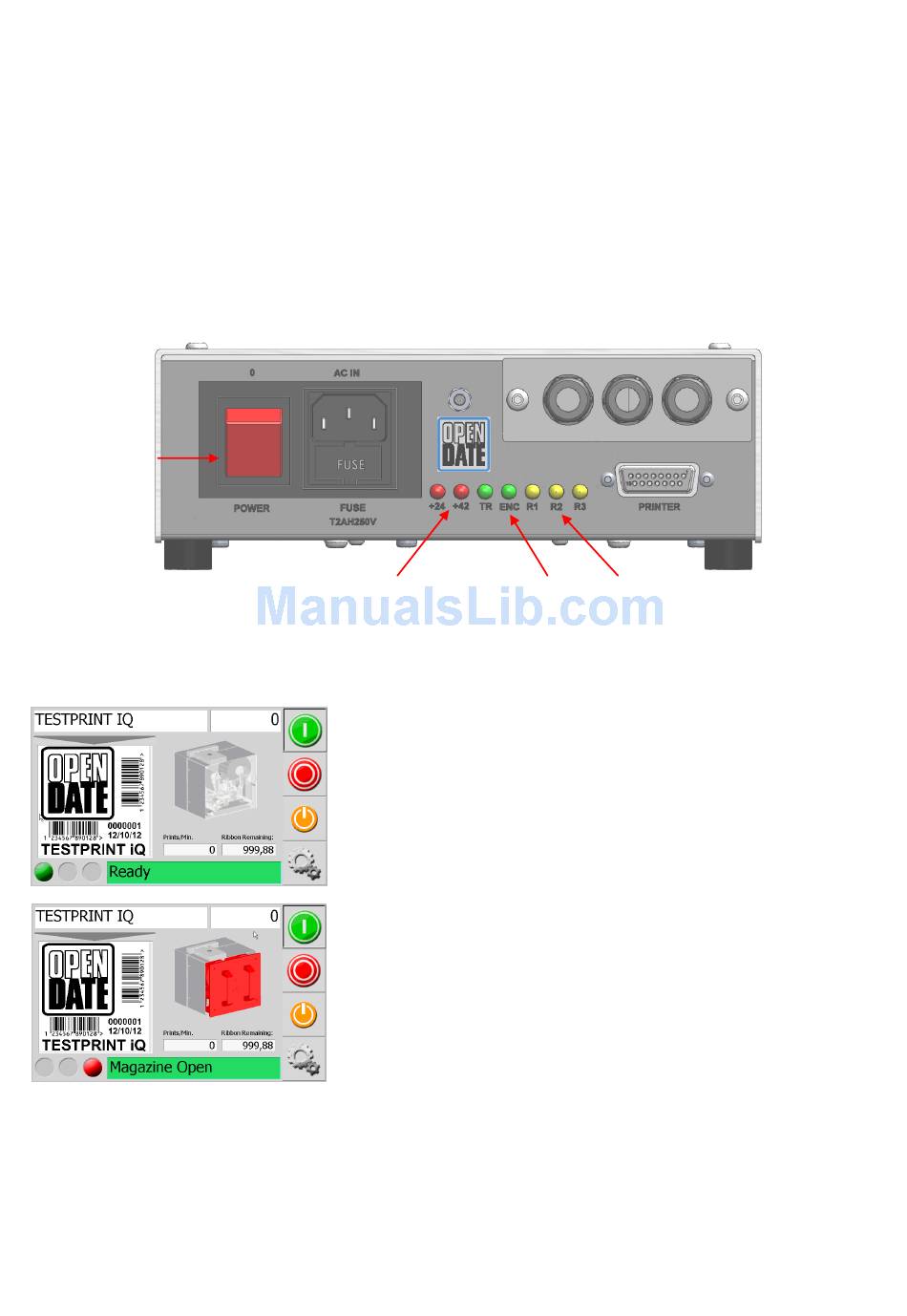

Power up the printer by turning on the red illuminated rocker Power Switch.
Both the +24 volt and +42 volt red LEDs will light immediately. The green encoder light will also be lit
however this has no function.
After approximately 15 seconds the Touch Screen (iQ Editor) will boot up and display the home screen
as shown below.
If any of the relays have been programmed they will also light after the iQ Editor has booted (please
refer to the iQ Software Manual for details)
Power Switch
If either the +24 volt or +42 volt LEDs fail to light the Editor will not boot.
Refer to Fault Finding section for possible reasons (chapter 10)
12.10.12

5.0 Power Up Sequence

+24 volt +42 volt LEDs
If the magazine is loaded with ribbon and fitted to the printer
body a Ready message will be displayed at the bottom of the
Editor home screen as shown.
The IQ is ready to print.
If the magazine is not present this screen is displayed.
Page 8
Encoder Relay indicators
Issue 1
