A standard Thermocode iQ thermal transfer printer system consists of these hardware components:
Printer
Display
Power Supply
PSU to Printer Cable (2m)
The printer contains the system computer which drives the printing mechanism and the display. It has
a user removable magazine for ribbon replacement.
The display has a touch screen for configuring and operating the printer, and shows information about
the printer status. It connects to the printer using a captive "D" connector cable.
The power supply has connections for print triggering and interfacing with external equipment. Three
software programmable relays can be set to indicate printer status to external equipment. The power
supply is connected to the printer using a 2 metre long "D" to "D" cable.
TOUCHSCREEN DISPLAY
Pt. No. DIS785100
!
See IMPORTANT SAFETY INFORMATION on page 6 before making
Disconnect the power supply by removing the mains cable before connecting or disconnecting system
components.
Make all connections to external equipment (iQ Software Manual) and connect the iQ system as
shown before powering up.
12.10.12

2.0 Thermocode iQ Printer System

Pt. No. PRI785000
Pt. No. DIS785100
Pt. No. POW783000
Pt. No. CAB783000

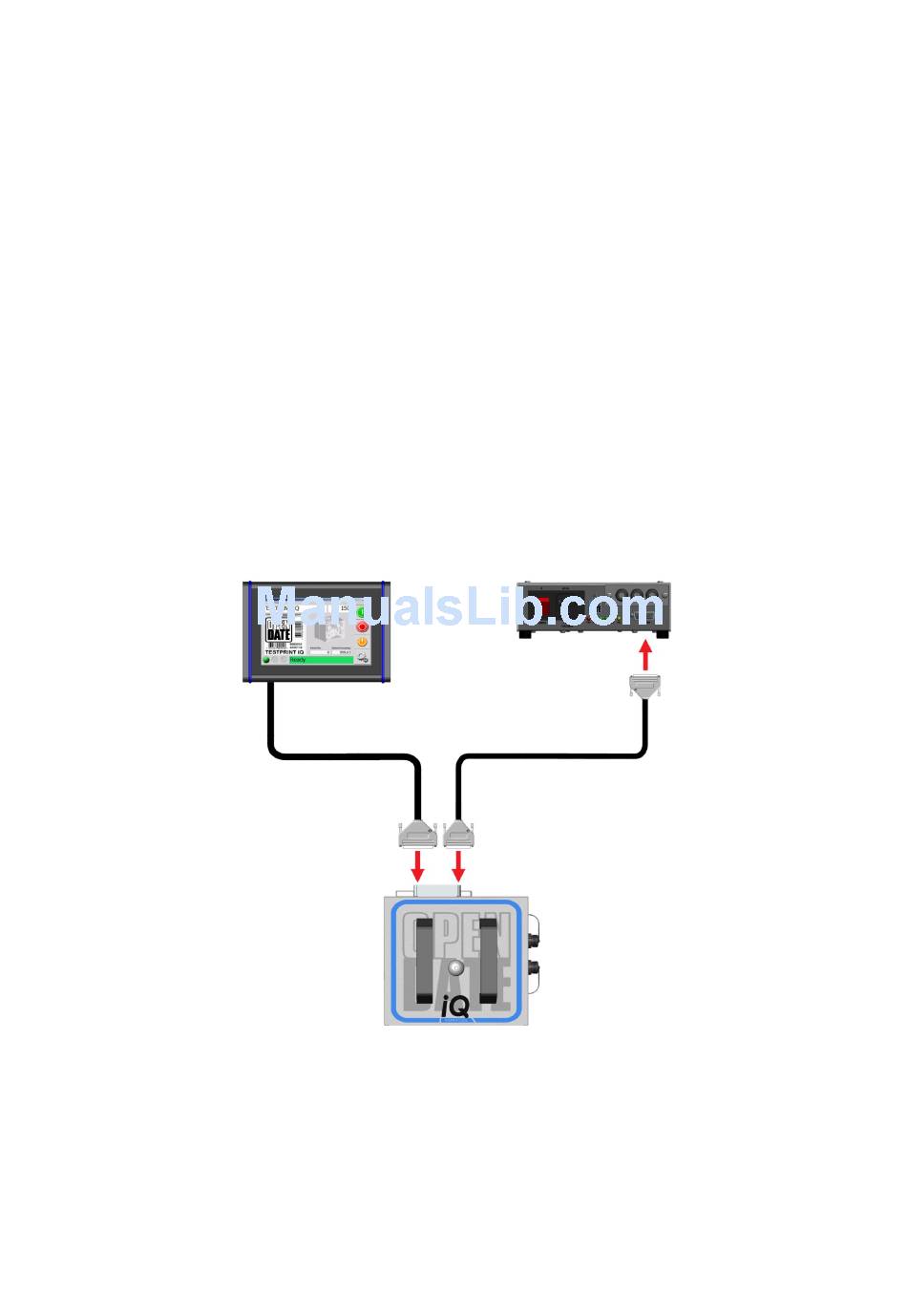

3.0 System Diagram

IQ PRINTER
Pt. No. PRI785000

4.0 System Connection

POWER SUPPLY CABLE
Pt. No CAB783023
Page 7
POWER SUPPLY
Pt. No. POW783000
connections.
Issue 1
