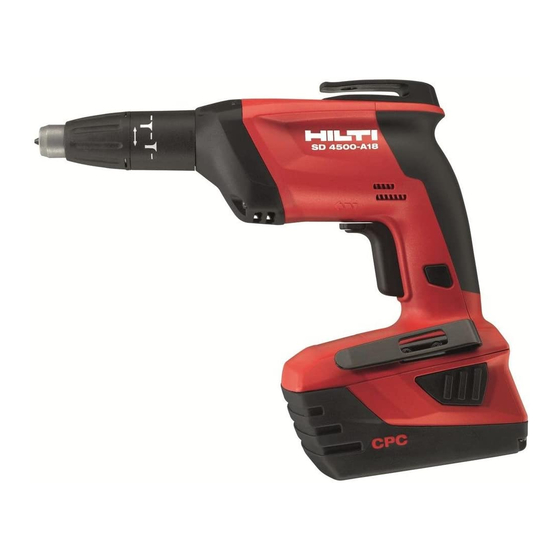

Hilti SD 4500-A18 Operating Instructions Manual

Drywall screwdriver
Hide thumbs Also See for SD 4500-A18:
Table of Contents

Advertisement

Quick Links

Printed: 08.07.2013 | Doc-Nr: PUB / 5070549 / 000 / 02
SD 4500-A18
Operating instructions
Mode d'emploi
Manual de instrucciones
Manual de instruções
en
fr
es
pt

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SD 4500-A18 and is the answer not in the manual?

Questions and answers

Related Manuals for Hilti SD 4500-A18

Summary of Contents for Hilti SD 4500-A18

  • Page 1 SD 4500-A18 Operating instructions Mode d’emploi Manual de instrucciones Manual de instruções Printed: 08.07.2013 | Doc-Nr: PUB / 5070549 / 000 / 02...
  • Page 2 +“ +≠ +± This Product is Certified Ce produit est homologué Producto homologado por Este produto está registrado Printed: 08.07.2013 | Doc-Nr: PUB / 5070549 / 000 / 02...
  • Page 3 Printed: 08.07.2013 | Doc-Nr: PUB / 5070549 / 000 / 02...
  • Page 4 Printed: 08.07.2013 | Doc-Nr: PUB / 5070549 / 000 / 02...
  • Page 5 Printed: 08.07.2013 | Doc-Nr: PUB / 5070549 / 000 / 02...

  • Page 6: Table Of Contents

    ORIGINAL OPERATING INSTRUCTIONS SD 4500‑A18 drywall screwdriver 1 These numbers refer to the corresponding illustra- It is essential that the operating instructions tions. The illustrations can be found on the fold-out cover are read before the power tool is operated for pages.

  • Page 7: Description

    Observe the information printed in the operating instructions concerning operation, care and maintenance. To avoid the risk of injury, use only genuine Hilti accessories and insert tools. Do not use the battery as a power source for other unspecified appliances.
  • Page 8 NOTE The power tool can also be used together with the SMD 57 magazine and the appropriate collated screws for the applications listed above. Please observe the operating instructions for the applicable drywall screw magazine. 2.3 Chuck ¼" bit holder 2.4 Switches Control switch for smooth speed control Lockbutton for sustained operation...

  • Page 9: Insert Tools, Accessories

    C 4/36‑90 Charger for Li-ion batteries C 4/36‑350 Battery B 18/3.3 Li‑Ion Battery B 18/2.6 Li‑ion Battery B 18/1.6 Li‑Ion Hilti toolbox Designation Description S‑B PH2 4 Technical data Right of technical changes reserved. Power tool SD 4500‑A18 Rated voltage 21.6 V...

  • Page 10: Spare Parts

    Item number Depth gauge S-DG-D 11 x 50 406292 Bit holder S‑BH 50M 257257 SD 4500-A18 belt hook SD-A BH 406293 SD 4500-A18 universal hook SD-A UH 406294 6 Safety instructions protected supply. Use of an RCD reduces the risk 6.1 General power tool safety warnings...
  • Page 11 c) Disconnect the plug from the power source b) It is recommended that ear protectors are worn. and/or the battery pack from the power tool Exposure to noise can cause hearing loss. before making adjustments, changing c) Keep the power tool, especially its grip surfaces, accessories, or storing power tools.

  • Page 12: Before Use

    NOTE DANGER Battery performance drops at low temperatures. Never Use only the Hilti batteries and Hilti chargers listed use the battery until the cells become fully discharged. under “Accessories”. Change to the second battery as soon as a drop in per- formance is noticed.

  • Page 13: Operation

    7.5 Transport and storage of battery packs (forward/reverse switch in the middle position). Use only the Hilti batteries approved for use with this Pull the battery pack out of the locked position (working power tool.
  • Page 14 8.4 Safe operation 7 8.9 Removing a previously-driven screw WARNING Remove the depth gauge or the magazine by pulling Do not grip the power tool by the depth gauge or bit it forward, away from the power tool. holder. A screw coming into contact with a concealed Set the forward / reverse switch to the reverse electric cable may result in electric shock.

  • Page 15: Care And Maintenance

    Charge the battery with the Hilti charger approved for use 9.1 Care of insert tools with Li-ion batteries. Clean off dirt and dust deposits adhering to the insert...

  • Page 16: Disposal

    Dispose of the batteries in accordance with national regulations or return them to Hilti. Most of the materials from which Hilti power tools or appliances are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, Hilti has already made arrangements for taking back your old power tools or appliances for recycling.

  • Page 17: Manufacturer's Warranty - Tools

    12 Manufacturer’s warranty - tools Hilti warrants that the tool supplied is free of defects in Additional claims are excluded, unless stringent na- material and workmanship. This warranty is valid so long tional rules prohibit such exclusion. In particular, Hilti...
  • Page 18 LI-9494 Schaan Tel.: +423 / 234 21 11 Fax:+423 / 234 29 65 www.hilti.com Hilti = registered trademark of Hilti Corp., Schaan W 3656 | 0613 | 00-Pos. 3 | 1 Printed in China © 2013 400172 / A4 Right of technical and programme changes reserved S. E. & O...
