- Page 1 SD 5000-A22 English Printed: 09.08.2018 | Doc-Nr: PUB / 5070562 / 000 / 05...
- Page 2 Printed: 09.08.2018 | Doc-Nr: PUB / 5070562 / 000 / 05...
-
Page 3: Information About The Documentation
Information about the documentation About this documentation • Read this documentation before initial operation or use. This is a prerequisite for safe, trouble-free handling and use of the product. • Observe the safety instructions and warnings in this documentation and on the product. •... - Page 4 The type designation and serial number are printed on the rating plate. ▶ Write down the serial number in the table below. You will be required to state the product details when contacting Hilti Service or your local Hilti organization to inquire about the product. Product information...
- Page 5 ▶ When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. ▶ If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.
- Page 6 ▶ Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 265 °F may cause explosion. ▶ Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions.

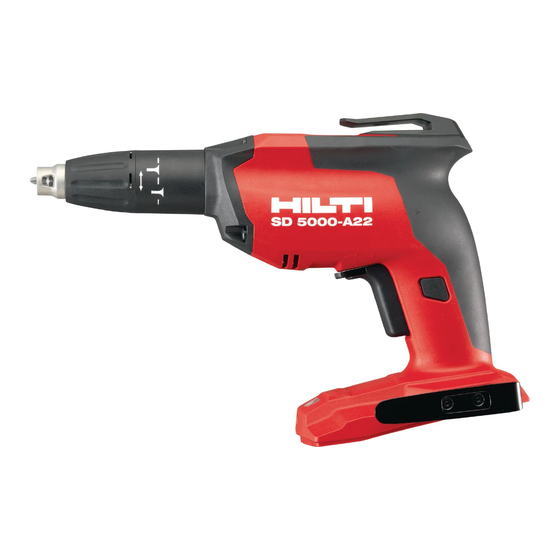

- Page 7 Description Overview of the product Chuck Control switch (with electronic speed control) Power tool / accessory interface (snap-on Lockbutton for continuous operation connection) § Universal hook Belt hook Motor cooling air intake Charge-status and fault indicator (Li-ion battery) Grip & Battery release buttons ∙...
-
Page 8: Technical Data
Items supplied Drywall screwdriver, operating instructions Other system products approved for use with this product can be found at your local Hilti Store or at: www.hilti.group | USA: www.hilti.com Overloading and overheating protection The drywall screwdriver is protected from overloading and overheating by an automatic cut-out. Overloading or overheating is indicated by the four LEDs blinking. -
Page 9: Preparations At The Workplace
Noise information and vibration values in accordance with EN 62841 The sound pressure and vibration values given in these instructions were measured in accordance with a standardized test and can be used to compare one power tool with another. They can also be used for a preliminary assessment of exposure. - Page 10 Fitting the belt hook (optional) The belt hook enables you to attach suitable power tools to your belt. It can be fitted to allow attachment on the left or right side of the body. CAUTION Risk of injury by falling power tools! ▶...
-
Page 11: Types Of Work
Forward / reverse The control switch is locked when the forward / reverse switch is in the middle position (safety lock). ▶ Set the forward / reverse selector switch to forward or reverse rotation. Types of work ATTENTION Risk of damage by incorrect handling! ▶... - Page 12 Removing screws 1. Pull the depth gauge off. 2. Set the screwdriver to reverse rotation. 3. Insert the bit in the head of the screw and use the control switch to regulate the speed of the screwdriver. 4. Refit the depth gauge after removing the screws. Switching on in sustained operating mode ▶...
-
Page 13: Care And Maintenance
To help ensure safe and reliable operation, use only genuine Hilti spare parts and consumables. Spare parts, consumables and accessories approved by Hilti for use with the product can be found at your local Hilti Store or online at: www.hilti.group | USA: www.hilti.com... -
Page 14: Rohs (Restriction Of Hazardous Substances)
▶ Cover the terminals with a non-conductive material (such as electrical tape) to prevent short circuiting. ▶ Dispose of your battery out of the reach of children. ▶ Dispose of the battery at your Hilti Store, or consult your local governmental garbage disposal or public health and safety resources for disposal instructions. - Page 15 Printed: 09.08.2018 | Doc-Nr: PUB / 5070562 / 000 / 05...
- Page 16 Hilti = registered trademark of Hilti Corp., Schaan 20180807 Printed: 09.08.2018 | Doc-Nr: PUB / 5070562 / 000 / 05...
