- Page 1 SD 4500-A22 English Printed: 11.08.2016 | Doc-Nr: PUB / 5295850 / 000 / 00...
- Page 2 Printed: 11.08.2016 | Doc-Nr: PUB / 5295850 / 000 / 00...
- Page 3 Direct current (DC) 1.4 Product information Hilti products are designed for professional use and may be operated, serviced and maintained only by trained, authorized personnel. This personnel must be informed of any particular hazards that may be encountered. The product and its ancillary equipment may present hazards when used incorrectly by untrained personnel or when used not as directed.
- Page 4 The type designation and serial number are printed on the type identification plate. ▶ Write down the serial number in the table below. You will be required to state the product details when contacting Hilti Service or your local Hilti organization to inquire about the product. Product information...
- Page 5 Power tool use and care ▶ Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. ▶ Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
- Page 6 ▶ Take breaks between working and do physical exercises to improve the blood circulation in your fingers. Exposure to vibration during long periods of work can lead to disorders of the blood vessels and nervous system in the fingers, hands and wrists. Electrical safety ▶...
- Page 7 Printed: 11.08.2016 | Doc-Nr: PUB / 5295850 / 000 / 00...
- Page 8 Printed: 11.08.2016 | Doc-Nr: PUB / 5295850 / 000 / 00...

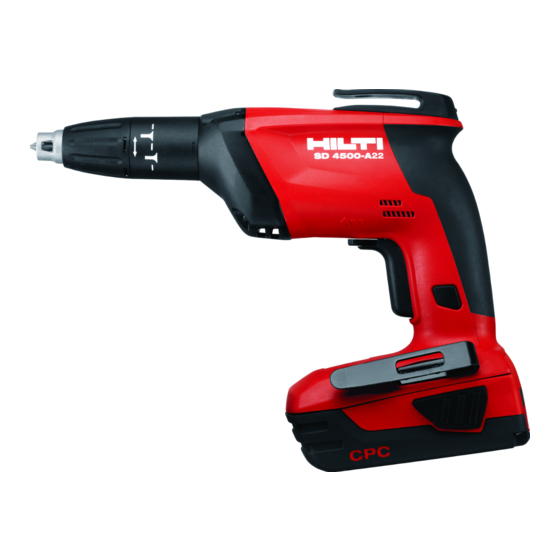

- Page 9 3 Description 3.1 Overview of the product Printed: 11.08.2016 | Doc-Nr: PUB / 5295850 / 000 / 00...
- Page 10 3.4 Items supplied Drywall screwdriver, operating instructions Note You can find other system products approved for use with your product at your local Hilti Center or online at: www.hilti.com. 3.5 Overloading and overheating protection The drywall screwdriver is protected from overloading and overheating by an automatic cut-out. Overloading or overheating is indicated by the four LEDs blinking.
- Page 11 Maximum torque 7.0 ftlb (9.5 Nm) Socket/bit drive Hex socket " Screw length ≤ 2.2 in (≤ 55 mm) Screw diameter ≤ 0.17 in (≤ 4.2 mm) 5 Preliminary and finishing work 5.1 Charging the battery Note Make sure that the outer surfaces of the battery are clean and dry before inserting the battery in an approved battery charger.
- Page 12 5.3 Fitting the belt hook in the alternative position 1. Press both battery release buttons simultaneously and pull the battery out of the screwdriver. 2. Unscrew both belt hook retaining screws. 3. Bring the belt hook and threaded piece into place on the other side of the tool. 4.
- Page 13 5.6 Changing the accessory tool. 1. Pull the depth gauge away from the power tool, releasing the snap-on connection. 2. Push the chuck towards the screwdriver, turning the chuck slightly at the same time, and then hold it in this position. 3.
- Page 14 6 Driving and removing screws 6.1 Driving screws WARNING Electrical hazards There is a risk of electric shock if a screw is driven into a concealed electric cable and, at the same time, the bit holder or depth gauge is touched. ▶...
-
Page 15: Troubleshooting
To help ensure safe and reliable operation, use only genuine Hilti spare parts and consumables. Spare parts, consumables and accessories approved by Hilti for use with the product can be found at your local Hilti Center or online at: www.hilti.com... - Page 16 Most of the materials from which Hilti tools and appliances are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, your old tools, machines or appliances can be returned to Hilti for recycling. Ask Hilti Service or your Hilti representative for further information.
