Introduction to the Digi TransPort WR11

Digi TransPort WR11 is a full-featured, cellular router offering the flexibility to scale from basic connectivity
applications to enterprise class routing and security solutions. With its high performance architecture, Digi
TransPort WR11 is designed for Wide Area Network connectivity including 2.5G and 3G networks.
Digi TransPort WR11 offers advanced routing, security and firewall features including stateful inspection firewall
and integrated VPN. Enterprise class protocols incorporate BGP, OSPF and VRRP+, a patented technology
built upon the popular VRRP failover standard providing true auto sensing, auto failure and auto recovery of
any line drop.

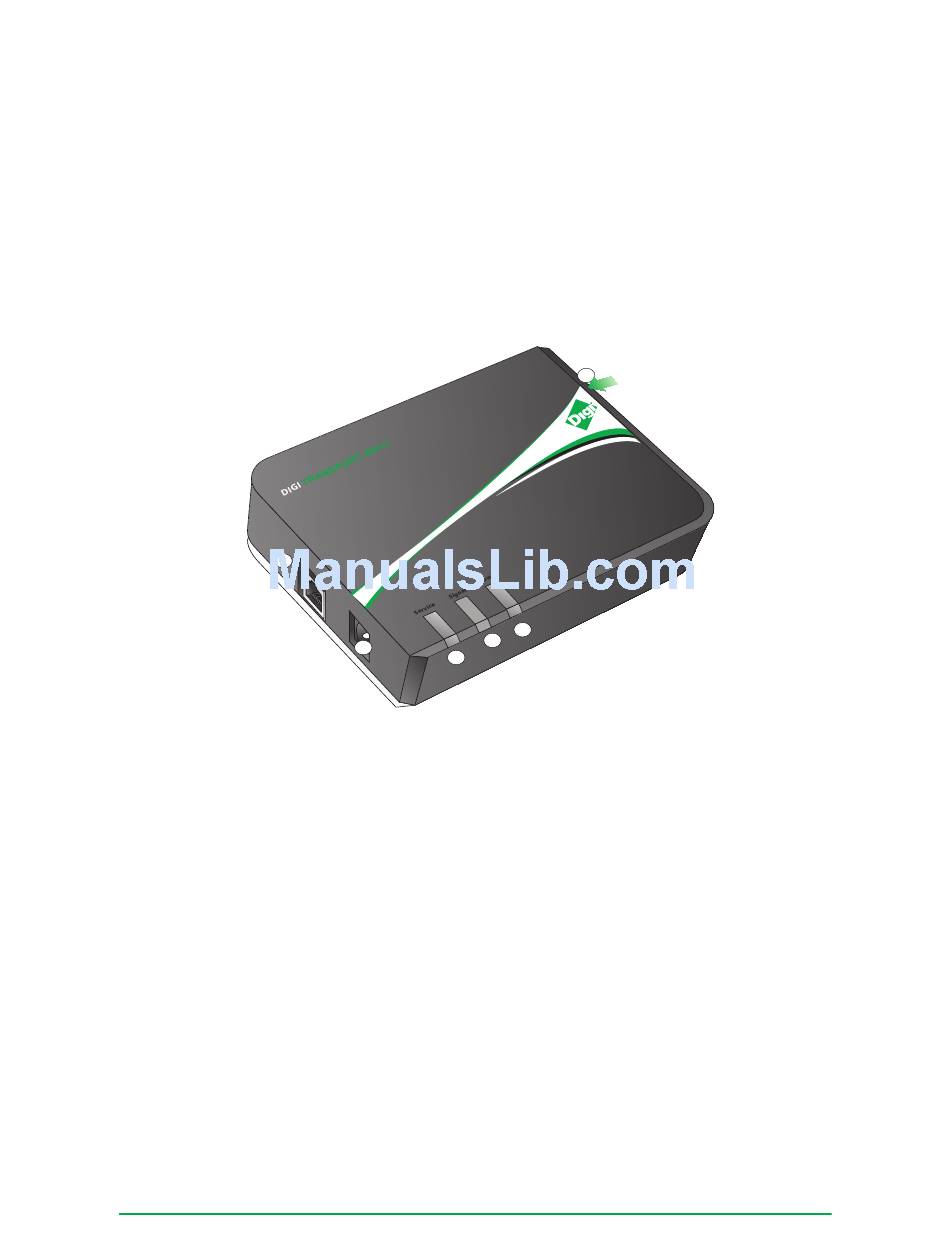

Digi TransPort WR11 EVDO Model Specifications

1. LAN: This Ethernet port connects the device to a 10/100 base-T Local Area Network (LAN). The port is
capable of auto-sensing for speed and wiring, so it can accept both straight-through or cross-over cable
connections.
2. Power Cord Input: This locking power connector connects the device to a power source. The connector
should be inserted and rotated to lock in place.
3. LED Status Indicator - SERVICE: Blinks to show the device's current network mode.
• Off:
• 1 Blink: 1xRTT
• 2 Blinks: EVDO Rev 0
• 3 Blinks: EVDO Rev A
4. LED Status Indicator - SIGNAL: This LED illuminates steadily when there is a network connection to the
WWAN interface and flashes when data is transmitted or received.
• Green: Signal strength >= -86dBm
• Amber: Signal strength between -87dBm and -101dB
5. LED Status Indicator - POWER: This LED illuminates steadily when power is connected.
• Green: Device on
• Off:
6. Cellular Antenna Connector: This SMA female connector connects the device's primary cellular antenna.
Digi TransPort ® WR11 Installation Guide
1
2
No cellular service
No power
6
5
4
3
