11. Wiring

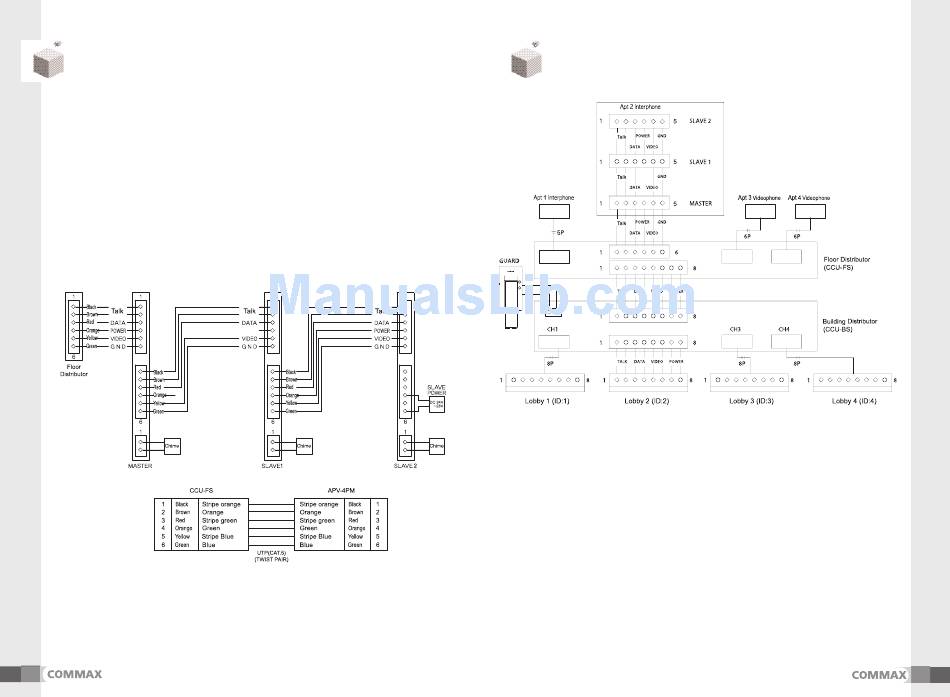

1) Wiring method
- Please pay attention to the polarity of the wires.
Units will not work properly when mis-wired
* Use UTP(CAT.5) cable and be careful to match the color of
the wires shown to the left
- The Power of the Master unit supplied from the Floor distributor
without an additional power supply, but additional sub units are needed
separate a power source.
(There is no power line connection between Mast unit and Sub units)
10
12. System diagam
CH2
11
