User Manual
Doorphone AP-3SG
• Thank you for purchasing COMMAX products.
• Thank you for purchasing COMMAX products.
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
instructions to use a product exactly.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
Advertisement
Table of Contents
Related Manuals for Commax AP-3SG
Summary of Contents for Commax AP-3SG
-
Page 1: User Manual
User Manual Doorphone AP-3SG • Thank you for purchasing COMMAX products. • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly. -
Page 2: Table Of Contents
......8 1. Greetings Thank you very much for purchasing of COMMAX products. Please read carefully this user manual and follow its rules. -
Page 3: Warnings And Caution
2. Warnings and caution Please follow the things described below in order to prevent any danger or property damage. Warning Prohibition. It may cause a serious damage or No disassembly injury if violated. No touch Must follow strictly. Caution Shows plugging out the power cord It may cause a minor damage or without an exception injury if violated. - Page 4 Warning Please don’ t disassemble, If an abnormal sound, burning Please don’t insert any Please use only the designated repair or rebuild this product smell or smoke is coming out metallic or burnable materials batteries for the products of arbitrarily (please contact the of the product, please plug out into the ventilation hole.
-
Page 5: Part Names

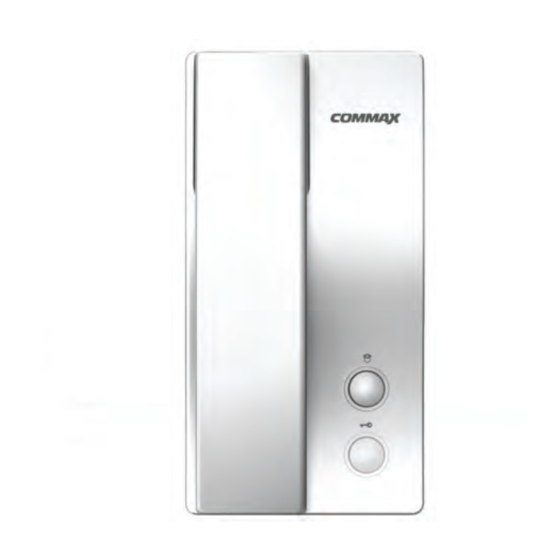

3. Part names Call Volume switch The part to control call volume Handset Guard button To call guardian Door open button S•code Functions Calling to Guard unit and talking Door release (Interlocking with Door phone) Talking to Common lobby and Individual front door... -
Page 6: Contents
5. Contents Mounting AP-3SG User’s guide bracket HAND SET Connector T4×18 (3P X 1 , 6P X 1) Mounting screw 6. Wiring AP-3SG AP-3SG... -
Page 7: Installation
7. Installation 1. AP-3SG Caution for Monitor When to install it, avoid the place where can be influenced by Magnetism, Humidity, Direct light and heater. 2. Audio Door Station... -
Page 8: Operating
8. Operating 1) Calling of Visitor ① When a visitor presses call button, with Calling sound from the speaker is emitted. For Visitors, please talk with the hanset (Currency time 60 second) ② ③ When lay the handset after the end of taking with a visitor, everything is done. When a visitor is allowed to be in, the door is released with the sound, if a user presses the door open button, (In case of using the camera which is interlocked with Door released function) -
Page 9: Trouble Shooting
(Call volume, Talk volume) the right(up), as you want. 10. Specifications Contents Description ( AP-3SG ) Wiring Common Lobby : 6 wires, Door camera : 4 wires Rated Voltage 220~230V~, 50/60Hz Power consumption Stan-by mode : 3W Operating : (Max.) 4W... - Page 10 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. Tel. : +82-31-7393-540~550 Fax. : +82-31-745-2133 Web site : www.commax.com Printed In Korea / 2011.11.104...
