User Manual

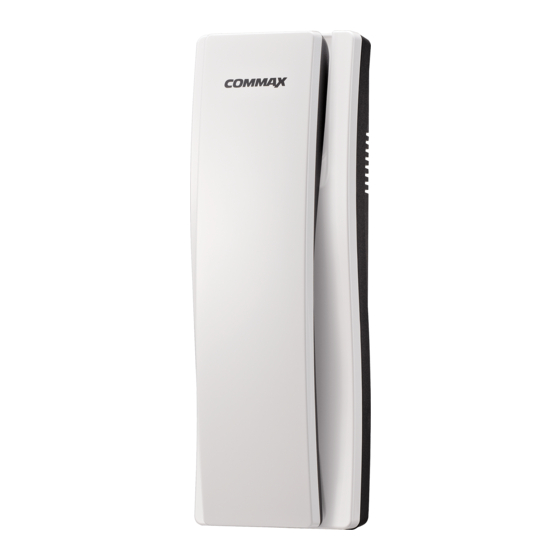

Audio Phone AP-2SAG
Thank you for purchasing COMMAX products.
Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
The company is not responsible for any safety accidents caused by abnormal operation of the product.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Commax AP-2SAG
Summary of Contents for Commax AP-2SAG
-
Page 1: User Manual
User Manual Audio Phone AP-2SAG Thank you for purchasing COMMAX products. Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly. The company is not responsible for any safety accidents caused by abnormal operation of the product. -
Page 2: Table Of Contents
Contents 1. Introduction ............2 2. Important Safeguards ........3 3. Part Names.............4 4. Wiring .............5 5. Installation ............6 6. Caution ............6 7. Operation ............7 8. Specification ...........8... -
Page 3: Introduction
The model number is located on the bottom and record the serial number in the space provided below(available). Refer to these numbers whenever you call upon your COMMAX dealer regarding this product. Model No. -
Page 4: Important Safeguards
2. Important Safeguards Damage Requiring Service: This equipment from the power source and source and refer servicing to qualified service personnel under the following conditions: when the power is damaged. if liquid has been spiled or objects have hallen into the unit if the equipment has been exposed to rain or water. -
Page 5: Part Names
3. Part names Handset ① HOOK switch ② Door release button ③ S-CORD ④... -
Page 6: Wiring
4. Wiring Non polarity... -
Page 7: Installation
5. Installation 6. Caution • It is only available with wall mount-type, not for desk type. • Please do not install the product in the following place. Where there is much humidity and big difference in temperature. Where there is much sunlight and rain. Where there is much vapor and gas. -
Page 8: Operation
7. Operation Call from a lobby phone • When the lobby phone pages, you can hear the ring tone. • When you pick up the handset, you can talk to a visitor at the lobby phone. • You can open the door if you press the door release button or hook switch while you are talking to a visitor at the lobby phone. -
Page 9: Specification
8. Specification AP-2SAG Model specification Power source (From floor distributor) Transmission 2 wires with non-polarity Paging sound Lobby : Electric chime bell, Guard : Melody Distance 100m( 0.65Ø ) Operation Temp. 0°C ~ +40°C Dimension(mm) With handset : 70(W) x 210(H) x 60(D) - Page 10 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133 Web site : www.commax.com Printed In Korea / 2013.12.105...
