1. Features & Specifications
This is a DC type B/W Video phone.
It can add up to a maximum of 2 sub units in each residence and is a
surface mount type video phone that connects to a guard station or external area.
It' s functions include Door release and intercommunicating
Features
1)
①
DC type B/W video phone
②
When installing only 1 master unit, a power is supplied from
a Floor distributor without an additional power supply.
③
Sub monitors need an extra power source.
④ 4" CRT Monitor
3 buttons : "Guard station call" , "door release" and "extension call" .
⑤
⑥
COMMAX chime(Sol, Mi, Do) is the ring tone call sound from Multi Entry Panel
And there is a doorbell Ding-Dong sound from a individual door
⑦
Entrance release
⑧
6 wires UTP Cable (CAT.5) including power source.
2. Specifications
ITEMS APV-4PM
Wiring Floor distributor: 6 wires
(TALK2, DATA1, POWER1, VIDEO1, GND1)
Power Voltage DC24V~28V / 5A (Master: Supplied from floor Distributor)
Transmission Method Full duplex
Screen Dimension 4" CRT
Power requirements Stand by : 60㎃/ Maximum operation :600㎃
Distance range Between Floor Distributor and
In-house unit UTP (Ø0.5) 50m
4
(Slave: Extra power sourse is required)

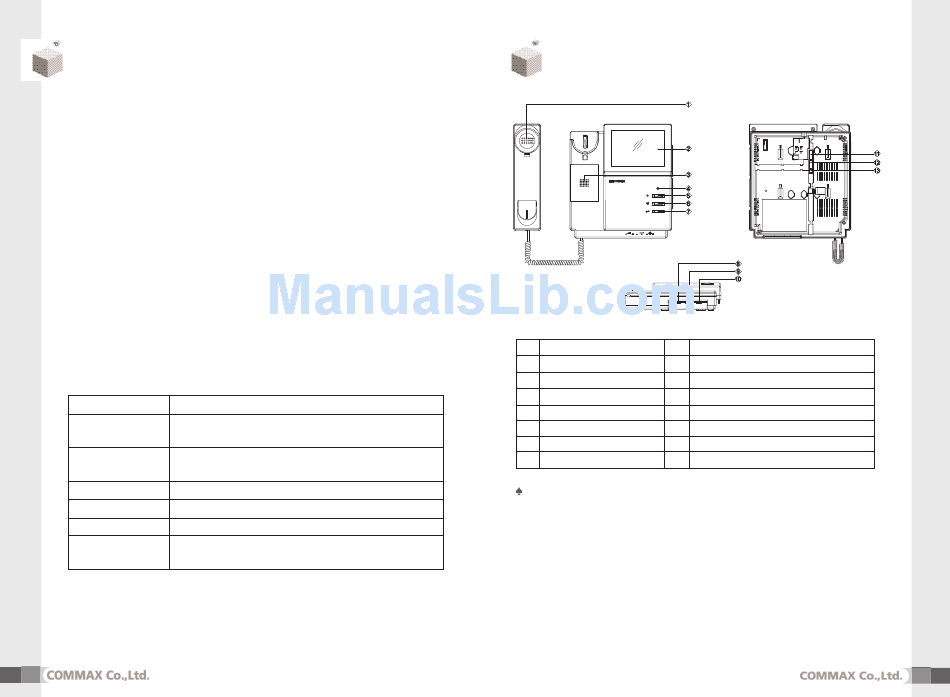

2. Parts names & Function
No. Details No.
1 Handset 8 Call volume control
2 CRT Screen 9 Power switch
3 Speaker 10 Video brightness control
4 Power Lamp 11 Connecting terminal to Floor distributor
5 Extension call button 12 Connecting terminal to sub unit
6 Guard station call button 13 Connecting terminal to Audio type Door bell
7 Door release button
This is an in-house unit which is a B/W video phone.
Up to 4 residences are connectable with a single Floor distributor
through a Building Distributor connected with the Multi Entry Panel.
Each residence can add 2 sub-units, which comes to 3 units
in total including master unit.
Details
