DOOR PHONE

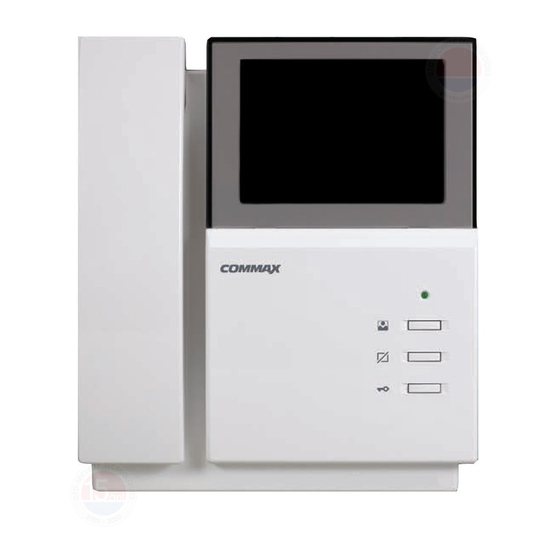

Model No. APV- 4PM
Thank you for purchasing our COMMAX product.
Please carefully read this User's Guide (in particular, precautions for safety)
before using the product and follow the instructions to use your productexactly.
The company is not responsible for any safety accidents caused in abnormal
operation of the product.
Advertisement
Table of Contents
Related Manuals for Commax APV-4PM
Summary of Contents for Commax APV-4PM
- Page 1 VIDEO DOOR PHONE Model No. APV- 4PM Thank you for purchasing our COMMAX product. Please carefully read this User’s Guide (in particular, precautions for safety) before using the product and follow the instructions to use your productexactly. The company is not responsible for any safety accidents caused in abnormal...
-
Page 2: Table Of Contents
Table of Contents Warnings and caution Features & Specifications Part Name & Function Multi Entry Panel Calling Sub unit calling (Intercommunication) Guard station or external area calling Call/ Talk duration Setting In-House unit as a Master and Sub Unite Chime sound Changing and initialization of the password Opening the entrance of a Multi-entry Panel With Password... -
Page 3: Warnings And Caution
It may cause an electric shock. It may cause a fire, an electric shock Otherwise, it may not function plug immediately and contact or an injury due to malfunction of the properly. Commax service center. product. -
Page 4: Features & Specifications
3 buttons : “Guard station call” , “door release” and “extension call” . ⑤ ⑥ COMMAX chime(Sol, Mi, Do) is the ring tone call sound from Multi Entry Panel And there is a doorbell Ding-Dong sound from a individual door ⑦... -
Page 5: Multi Entry Panel Calling
7. Setting In-House unit as a Master and Sub Unit ① When calling from the Multi-Entry Panel, you will hear the COMMAX chime - This setting should be set by Muliti entry panel which should be connected to chanel 1 and the image of the visitor will be shown on the screen - when a single unit is installed, the setting should be set as a master unit. -
Page 6: Chime Sound
⑤ Then, register the ID of the said residence, and press “ ” button to hear a sound of completion. 10. Opening the entrance of a Multi-entry Panel ⑥ The registration is complete when you hang up the handset. With Password (Repeat this process for other residentes) ⑦... -
Page 7: Wiring
11. Wiring 12. System diagam 1) Wiring method - Please pay attention to the polarity of the wires. Units will not work properly when mis-wired * Use UTP(CAT.5) cable and be careful to match the color of the wires shown to the left - The Power of the Master unit supplied from the Floor distributor without an additional power supply, but additional sub units are needed separate a power source. - Page 8 Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133 Web site : www.commax.com Printed In Korea/ 2007.10...
