LT- DMX-6803 DMX512 Decoder User's Manual Page 5 of 14

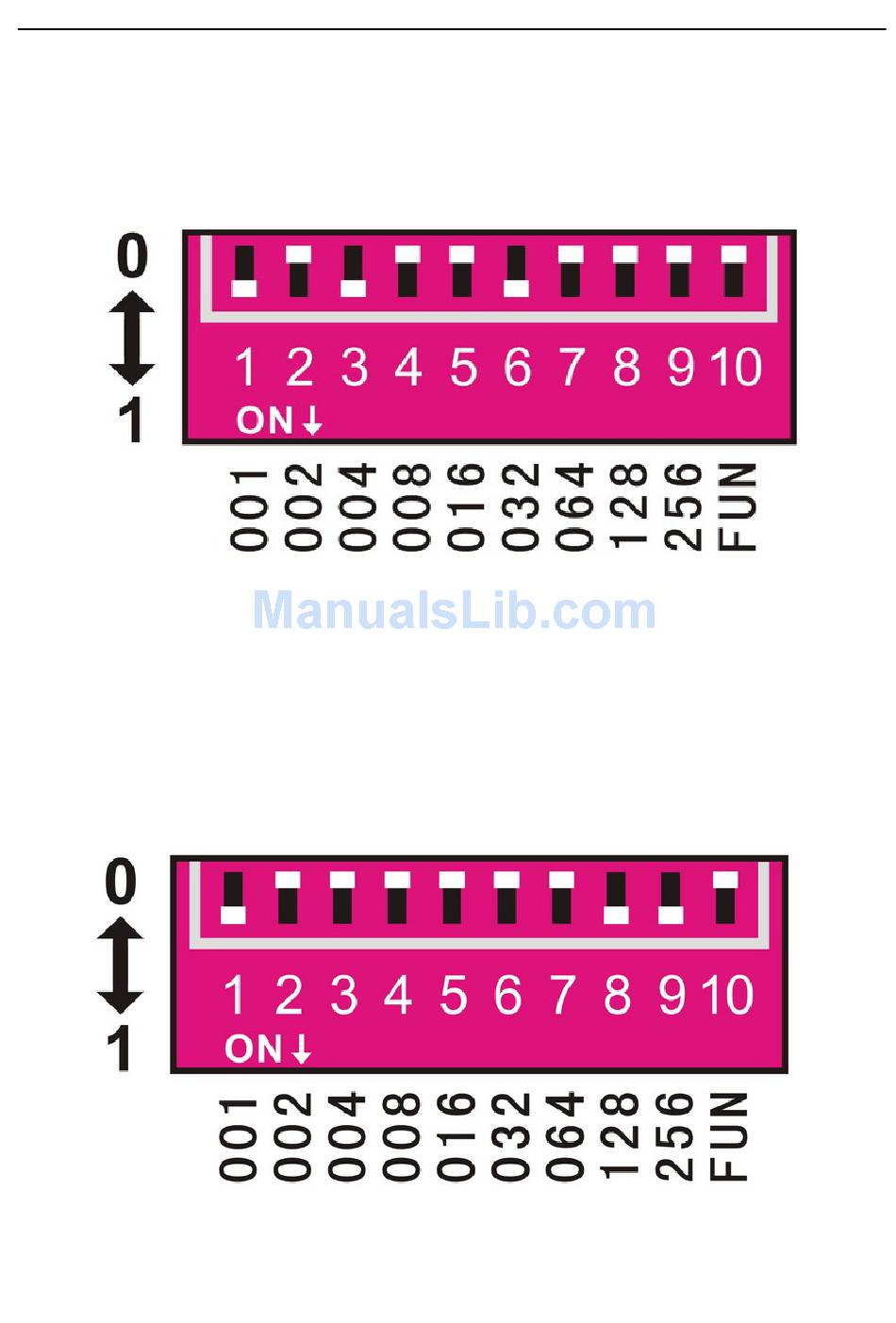

Example 1: Set to 37
th rd st
Set the 6 , 3 , 1 bit of the DIP switch downward to "1", others
to "0" (Figure 1), the total sum from 1 to 9 is 32+4+1, so the
DMX512 initial address code is 37.
Figure 1
Example 2:
th st
Set DMX512 original address code as 385: Set the 9 , 8th, 1 bit of
the DIP switch downward to "1", the rest to "0" (as Figure 2),
the total sum from 1 to 9 is 256+128+1, so the DMX512 original
address code is 385.
Figure 2
