Ltech LT-DMX-1809 Manual

LTECH
LT-DMX-1809
DMX-SPI Signal Decoder Manual

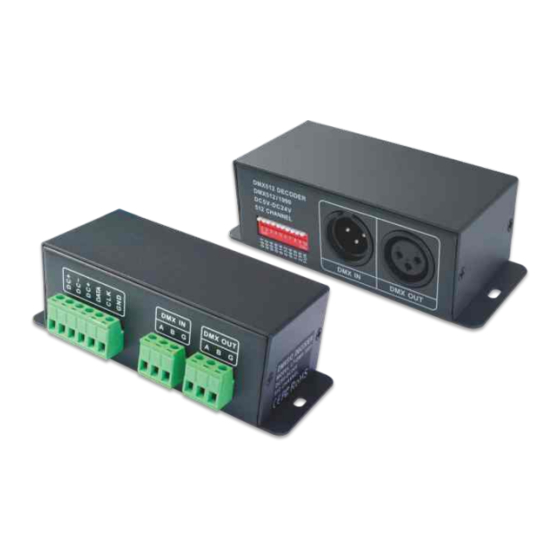

Welcome to choose our DMX decoder, DMX-SPI signal decoder works to convert DMX512 digital
signal to SPI (TTL)digital signal. It can control LED lights compatible with driving IC, and control
every channel of the LED lights, realize the function of 0~100% dimming or editing all sorts of
change effect.
DMX-SPI decoder are wildly used in LED flashing word string light, LED dot light, SMD strip,
LED digital tubes, LED wall light, LED pixel screen, Hi-power spotlight, flood light, etc.
1. Product Parameter:
LT-1809
Input Voltage
DC5V~DC24V
Input Signal DMX512
SPI (compatible with TM1803, TM1804, TM1809,
TM1812, UCS1903, UCS1909, UCS1912, UCS2903,
Output Signal
UCS2909,UCS2912,WS2811,WS2812 driving IC)
Decoding Channels
512 Channels/Unit
Output Grey Scale 256 levels/CH(8bit/CH)
DMX512 Connector XLR-3, Green Terminal
Product Dimension L125×W52×H40mm
Package Size
L135×W70×H50mm
Working Temperature
-30
Weight (G.W.) 300g
ZHUHAI LTECH ELECTRONIC TECHNOLOGY CO., LTD.
LT-DMX-1809 DMX512 Decoder Manual
warranty
5 years
℃ ℃
~65
1
Tel: +86 756 620 8823
LTECH
2. Configuration Diagram:
m m
5 2
DMX IN DMX OUT
115mm
Power Input/Signal Output DMX Port 1
)
( Side A
3. Output Port Definition:
No. Silk Screen
DC+
Power Supply
1
Input Port
DC-
DC+
DATA
Output Port
2
Connect Led
CLK
GND
4. How to Set DMX Address Via Dip Switch:
1) Set DMX512 Original Address
0
OFF
Figure 1
1 2 3 4 5 6 7 8 9 10
1
ON
ON
The Decoder enter into DMX control mode automatically, when receiving DMX signal.
Like figure 1: FUN=OFF is high speed(upward), FUN=ON is low speed (downward)
DIP 1
2 3 4
Address 001 002 004 008
1. The driving chip of this decoder has option for high and low speed(800K/400K), please choose
the suitable speed according to the design of your LED lights, in most cases, it is high speed.
2. DMX512 initial address is the total amount of the Dip switch 1-9, down dip switch to "ON"
position, User can get its place value, Up dip switch to "OFF" position, Its place value is 0.
For example, Set initial address to 37
As figure 2, set the 6th, 3rd and 1st bit of the DIP switch downward to "1", the rest to "0", the
total sum from 1 to 9 is 32+4+1, so the DMX512 initial address code is 37.
Fax: +86 756 620 8833 LT@LTECHONLINE.COM
LT-DMX-1809 DMX512 Decoder Manual
DMX512 DECODER
DMX512/1990
1 2 2 1
DC5V-DC24V
512 CHANNEL 3 3
1 2 3 4 5 6 7 8 9 10
DIP ON
DMX IN DMX OUT
125mm
Address Dip Switch DMX Port 2
)
( Side B
Function
DC5V-24V LED Power Supply Input
LED Power Supply Anode
Data Cable
Clock Cable(N/A)
Ground Wire(DC-)
0
OFF
Figure 2
1 2 3 4 5 6 7 8 9 10
1
ON
ON 4
5 6 7 8 9
016 032 064 128 256
Instructions
2
WWW.LTECHONLINE.COM
10
high/low
speed
