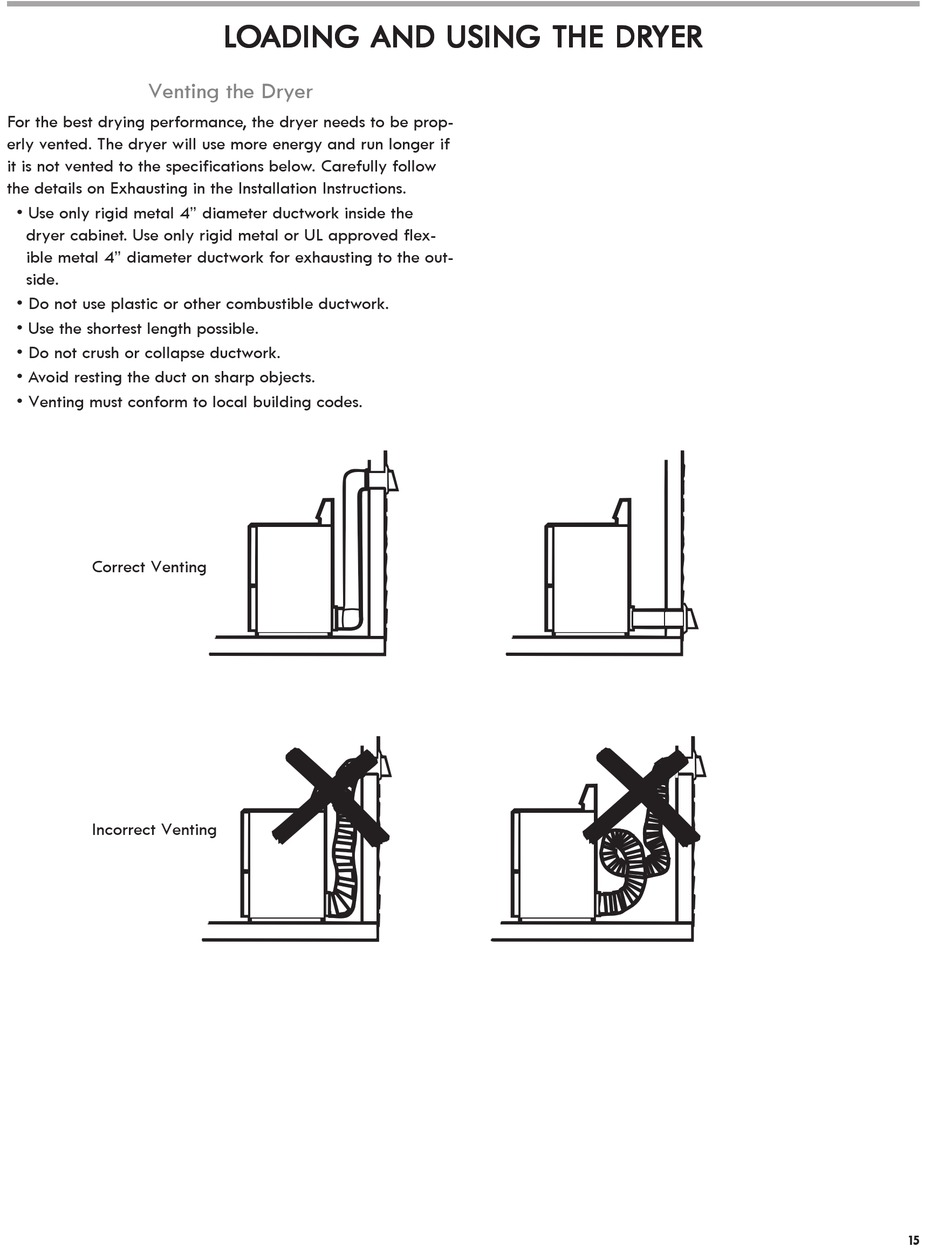

Venting the Dryer
For the best drying performance, the dryer needs to be prop-
erly vented. The dryer will use more energy and run longer if
it is not vented to the specifications below. Carefully follow
the details on Exhausting in the Installation Instructions.
• Use only rigid metal 4" diameter ductwork inside the
dryer cabinet. Use only rigid metal or UL approved flex-
ible metal 4" diameter ductwork for exhausting to the out-
side.
• Do not use plastic or other combustible ductwork.
• Use the shortest length possible.
• Do not crush or collapse ductwork.
• Avoid resting the duct on sharp objects.
• Venting must conform to local building codes.
Correct Venting
Incorrect Venting
L L L L L O O O O O ADING AND USING THE DR
ADING AND USING THE DR
ADING AND USING THE DR
ADING AND USING THE DR YER
ADING AND USING THE DR
YER
YER
YER
YER
15
