Batribike Sprint Owner's Manual

Electric high spec models
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

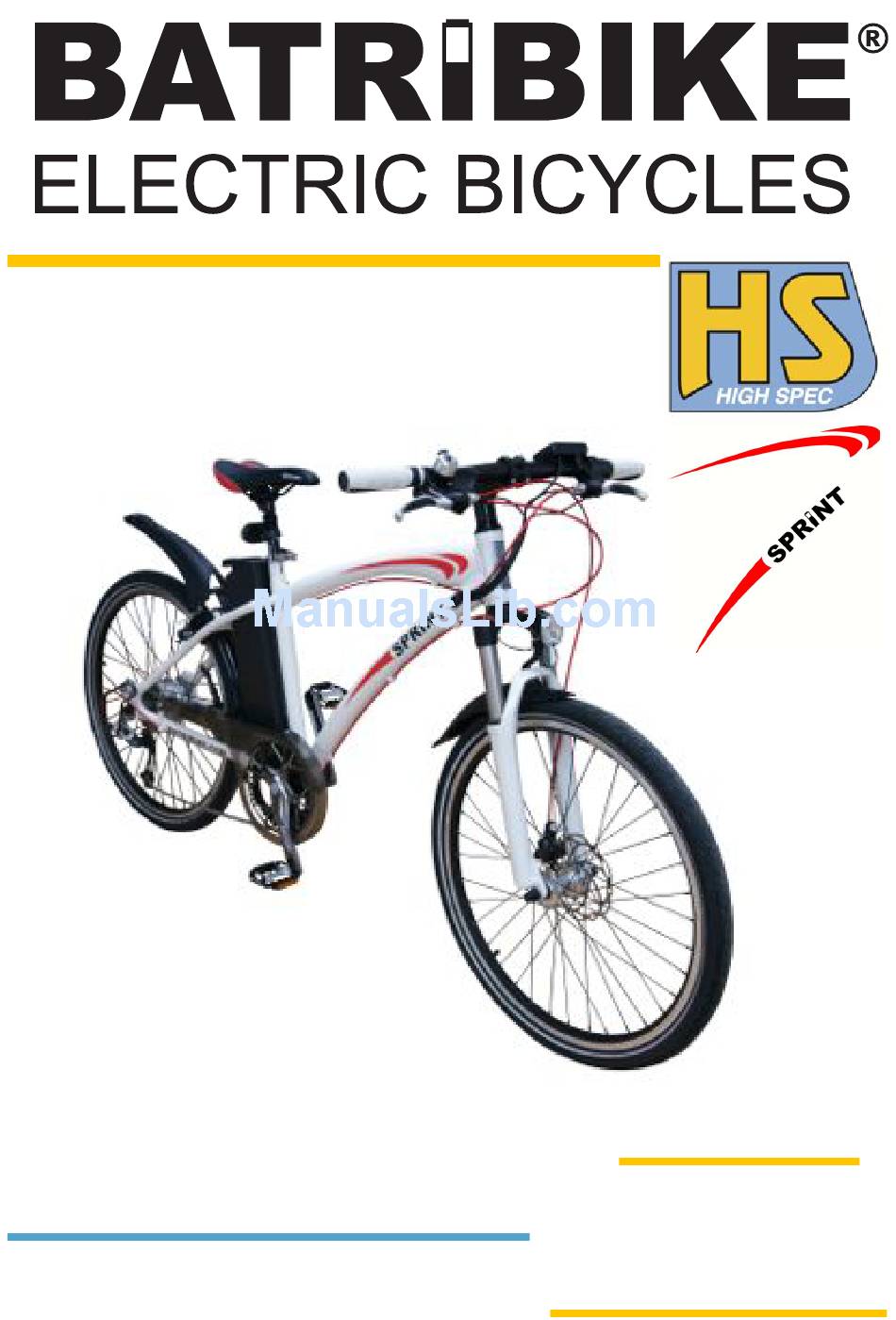

SPRINT
Owner
Manual
High Spec Models

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sprint and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Batribike Sprint

Summary of Contents for Batribike Sprint

  • Page 1 SPRINT Owner Manual High Spec Models...
  • Page 2 IMPORTANT PLEASE READ THIS MANUAL FULLY PRIOR TO ASSEMBLY AND USE For your safety and to ensure a long and trouble free life of your Batribike bicycle, check the operation of brakes, lights, bell and gears, and check tyre pressures are correct.

  • Page 3: Table Of Contents

    Thank you for purchasing a BATRIBIKE Electric Bicycle With care and correct usage your bicycle will give many years of service. Important PLEASE CHARGE THE BATTERY BEFORE FIRST USING THE BICYCLE Even though the battery indicator will show charge this cannot be relied upon until the battery has had the initial full charge.

  • Page 4: Parts Identification

    PARTS IDENTIFICATION We continually strive to ensure that we provide you with the best possible products, therefore SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE Battery Chain Guard Twist Grip Throttle Charging Socket Seat Height Adjuster Rear Brake Lever Charging Socket Cover Suspension Seat Post Front Brake Lever Rear Hub Motor...
  • Page 5 Left Side Right Side Detail view of Battery "Ignition" Lock Detail view of Battery Security Lock...

  • Page 6: Charging The Battery

    CHARGING THE BATTERY The battery can be charged on or off the bike. To remove the battery, remove the saddle, unlock the battery with one of the two keys provided and slide upwards and out of the frame. Insertion is the reverse of the above procedure.
  • Page 7 It is perfectly acceptable to recharge the battery after a short ride so that the battery is fully charged before the next ride. If your BATRIBIKE is not in use for an extended period it is imperative that you charge the battery before storage and then charge the battery once a month to prevent deterioration.
  • Page 8 Usage Your BATRIBIKE Electric Bicycle can be used as a normal pedal cycle by simply not switching on the battery. (or using in Assist Level 0 - see below) Display Information Areas BATTERY STATUS SPEED Buttons POWER DOWN ASSISTANCE CYCLE...
  • Page 9 ELECTRIC BICYCLE FUNCTIONS Switching On To use under electric power, Switch on the battery with the key located on the top left side of the battery Then press the POWER button on the handlebar LCD display. Control Buttons By means of the three buttons, UP, POWER and DOWN, on the handlebar mounted display unit, the various functions of the power controller and Cycle Computer can be utilised.
  • Page 10 Battery Meter The LCD shows the charge remaining in the battery in the upper left of the display. The indicators will gradually go out as the battery power is used up. Refer to the table below for details. BATTERY METER DISPLAYS THE CHARGE REMAINING IN THE BATTERY SYMBOL CHARGE FLASHING...
  • Page 11 Speed Display The centre large digits will normally display the current speed of the bicycle. For the UK market this is set to show miles per hour (MPH). The display is accurate to about 10% when the wheel size is correctly calibrated and the tyre inflated as per the manufacturers recommendations.
  • Page 12 Pedal Assistance There are 5 levels of pedal assistance available from the motor. Using the Up and DOWN buttons you can select from level 1 (LOW) to 5 (HIGH). The motor will then be activated upon pedalling. There is a rotation sensor located near the crank which senses when the pedals are being used.
  • Page 13 No Assistance - Normal Pedal Bicycle If the assistance level is set to 0, (ZERO) then the motor will not be turned on. Your BATRIBIKE will now act and feel like a normal bicycle. This is useful when you are feeling fit at the start of a journey or using your bike for exercise purposes.
  • Page 14 Using the Throttle - Country Specific To activate the throttle, select level 6. "Assist 6" will be displayed on the LCD panel. In this mode the throttle on the left handlebar, (twist-grip), is now live. In all other assistance levels the throttle is not functional.
  • Page 15 If you want continuous power then one of the Assist modes should be selected. BS EN15194 Compliance The BATRIBIKE SPRINT conforms to BS EN15194. For the British market, the addition of a throttle control has rendered this not compliant in some countries. ●...

  • Page 16: Cycle Computer Functions

    CYCLE COMPUTER The LCD models have useful Cycle Computer functions built in. There is a built in sensor and pickup located in the rear hub which activates the speed and distance readings. Normal Display When first turned on the display shows the Trip Time (TM) in the top right and the Trip Distance (DST) in the...
  • Page 17 Average Speed When Total Time and Odometer have been selected, clicking the UP or DOWN buttons sets the display to show Average EITHER Speed (AVS) or Maximum Speed (MXS) in the centre section. Average Speed Maximum Speed Momentarily pressing the POWER button will return the display to Normal showing the Trip Time (TM) and Trip Distance (DST).

  • Page 18: Standard Bicycle Functions

    You must be pedalling forwards as you change gears. Lights Lights are provided on your BATRIBIKE bicycle. These are power efficient LED units which achieve a long life on each set of batteries. SAFETY FEATURE - The power for the...

  • Page 19: Side Stand

    The rear light requires 2 AA batteries. You will require a small screwdriver to take off the red lens for battery replacement. It is switched on and off by the small red push button switch on the rear of the unit. Either of the types shown above may be fitted.
  • Page 20 Quick Release fittings for Seat Height Adjustment With the locking lever in the loose position, tighten the nut until finger tight. The final tightening is done by moving the lever to the locked position. To undo move the lever to the loose position to enable height adjustment. Loose Locked Adjusting the Front Suspension...
  • Page 21 All other operation of your BATRIBIKE Electric Bicycle is as per a normal pedal cycle.

  • Page 22: Maintenance Schedule

    Beyond this manual, it is good to consult your BATRIBIKE dealer for advice if you are at all unsure about any of the procedures described. Normal maintenance is not covered under the warranty and this service may be chargeable.

  • Page 23: Removing The Rear Wheel

    ● Hub motor and general inspection We recommend you arrange to have a thorough inspection of your bicycle by a BATRIBIKE dealer. This includes opening up the hub motor to inspect and lubricate the gears. Tyre Pressures The tyres should be pumped up to within the range stated on the sidewall.

  • Page 24: Warranty

    Warranty. The guarantee starts on the date of purchase. ● Warranty is non transferable and applies only to the original owner. The Frame of your new BATRIBIKE SPRINT is guaranteed for 3 ● years from date of purchase.
  • Page 25 Your Local Authority should have the necessary facilities in place. If you prefer you may take your original battery to BATRIBIKE for recycling. Never dispose of batteries in a fire or subject to puncture or crushing.
  • Page 26 SPRINT Technical Specifictaion...
  • Page 28 BATRIBIKE Electric Bicycles are exclusive to:- Fallowgate Limited Kellaway House Marton Road Sturton-by-Stow BATRIBIKE are Lincoln Full Members of LN1 2AH the British Electric Phone: 01427 787774 Bicycle Association E-mail: support@batribike.com ----- USER MANUAL SPRINT 2012 - ISSUE 1 - ©2012 Fallowgate Limited -----...
