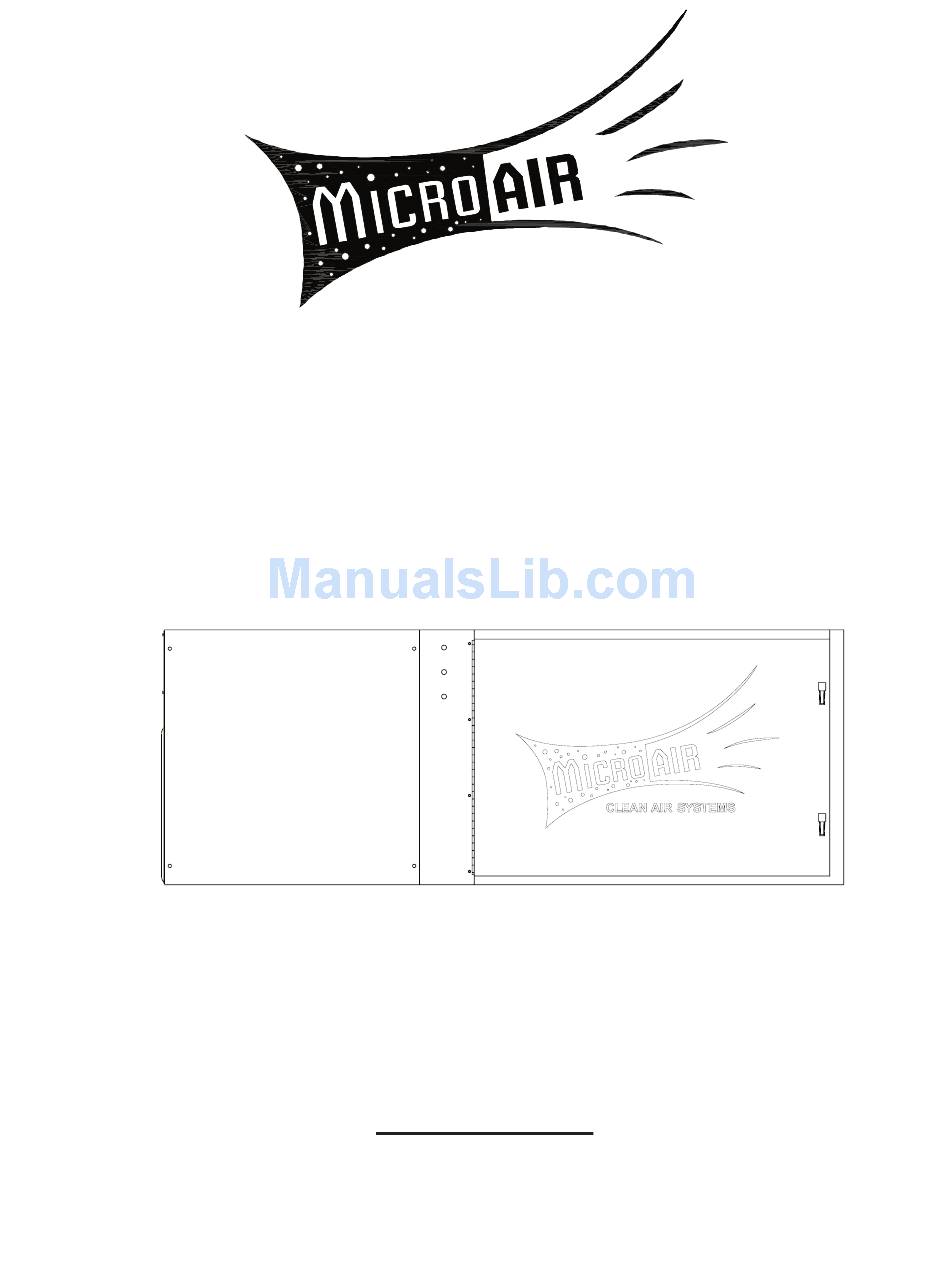

MICRO-AIR AIR CLEANER INSTALLATION AND OPERATION MANUAL MX3510 Includes Installation, Operation, and Service Instructions CAUTION Read complete instructions before operating. Please file for future reference.
Page 2
* Add 35lbs. per charcoal module as option Check current draw of motor. Do not exceed Amps specified. PACKAGE CONTENTS PRE-OPERATION CHECKLIST 1 Ea. MX3510 Unit 1 Ea. Owners Manual Before placing unit in service, check the following items: 4 Ea. 5/16” X 18” Eye Bolt •...
CAUTION: Always make sure that the unit is turned off before changing filters or servicing the unit. PRESSURE SWITCH ADJUSTMENT INSTRUCTIONS The MX3510 is equipped with a filter change light or The pressure switch which turns the light on with a optional Magnehelic Gauge. If the differential pressure...
Page 4
MICRO AIR MX3510 ® CLEAN AIR SYSTEMS UNITS WITH HEPA OR CHARCOAL OPTIONS FOR HEPA OR CHARCOAL AS SECOND MAIN FILTER MX3510 Place supports k in cabinet at a dimension of 13 1⁄4” and secure with self tapping screw. On units with optional HEPA or charcoal filters, an adjustable filter track kit is used to complete the seal of these filters to the filter Place track j in cabinet so it rests upon supports and 1⁄2”...
Page 6
NOTE: Slow pouring will minimize dust that will be present during pouring. After filling module, discard plastic bag and reinstall fill cover removed in step 2. NOTE: The MX3510 requires two modules when used as a second main filter and four modules when used as a first and second main filter.
Page 7
MX3510 MICRO AIR ® CLEAN AIR SYSTEMS OPTIONAL SILENCER INSTALLATION Remove Exhaust Grille from unit as shown in FIG. 7. Slide Silencer over Blower Assembly. Align holes from Silencer with those located on sides of the Blower Assembly. Attach Silencer to Blower Assembly using 3⁄8” bolt, lockwasher, & flat washer.
MICRO AIR MX3510 ® CLEAN AIR SYSTEMS Wrap Around Pre-filter INSTALLATION This Kit Includes: 1 Each 38086-01 WAP Pre-filter Assembly 1 Each Hardware Package - Containing: ” -18 X 0.75 Hex Bolt 6 Each P114 ⁄ ” -18 Hex Nut 6 Each P222 ⁄...
Page 9
MX3510 MICRO AIR ® CLEAN AIR SYSTEMS MX3510 WIRING DIAGRAM FIG. 9...
Page 10
MICRO AIR MX3510 ® CLEAN AIR SYSTEMS ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION P1977 Grille P3545 1 1/2 HP, 115V, 1 Phase Motor P1710 4.95” Blower Pulley 38010-01 Blower Access Panel P3546 1 1/2 HP, 208-230/460V, 3 Phase Motor P1974 5.93”...
Page 11
MX3510 MICRO AIR ® CLEAN AIR SYSTEMS NOTES:...
Page 12
MICRO AIR MX3510 ® CLEAN AIR SYSTEMS TROUBLESHOOTING CHART CAUTION: Before disassembling the unit or doing any inspection of the parts, make certain that the power has been cut off and the blower has come to a complete stop. Never run the unit with the access door open or removed.
