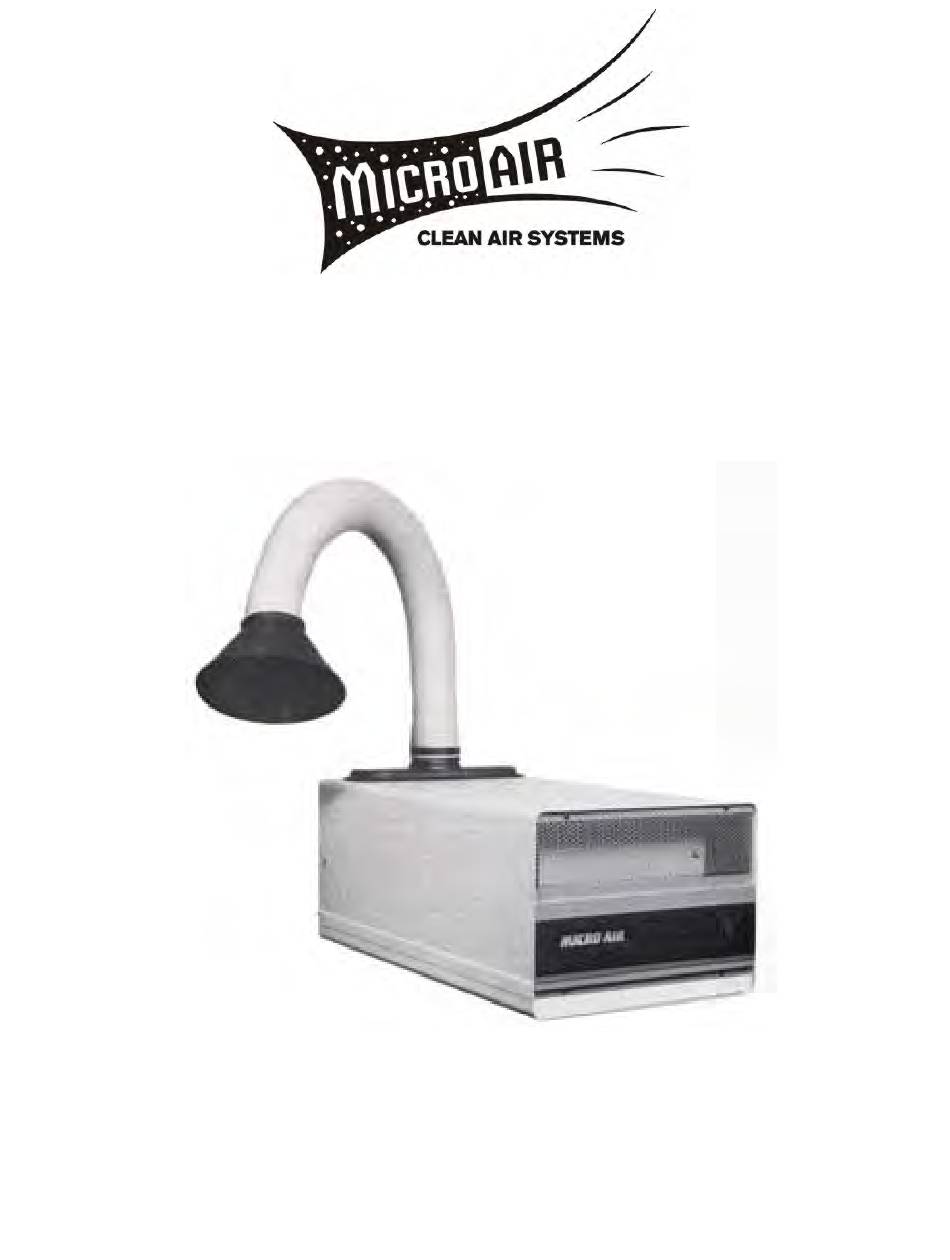

MICRO-AIR SC150 Installation And Operation Manual

Download this manual

MODEL SC150

Installation and Operation Manual

Important:

This manual contains speciﬁ c cautionary statements relative to worker safety. Read this manual thoroughly and follow

as directed. It is impossible to list all the hazards of dust control equipment. All persons involved with the equipment or

systems should be instructed how to operate in a safe manner.

Need help?

Do you have a question about the SC150 and is the answer not in the manual?

Page 1 MODEL SC150 Installation and Operation Manual Important: This manual contains speciﬁ c cautionary statements relative to worker safety. Read this manual thoroughly and follow as directed. It is impossible to list all the hazards of dust control equipment. All persons involved with the equipment or...
Page 2 1. Before operaating, simply plug the SC150 power cord into any grounded electrical outlet rated at nameplate voltage. 2. Once the SC150 has been plugged in, turn the unit on. Postion inlet nozzel(s) approximately 6” from point of containment to be captured.
Page 3: Optional Installation
Fig. 4 Fig. 3 B. Vertical Wall Mount Assembly (Fig. 4) This installation allows the SC150 to be mounted on a wall in a vertical position. The exhaust is then pointed upward, Fig. 5 and the arm(s) are at the bottom end, close to the work area.
Page 4: Maintenance
2. Set the SC150 upon wall brackets as shown, making sure that brackets are located between plastic feet. 3. Once the SC150 is in position as shown, secure the unit to the wall brackets using the #8 sheet metal screws supplied.
Page 5 SC150 MICRO AIR ® CLEAN AIR SYSTEMS SC150 PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 33057-01 End Cap P1993 Black Phillips Screw P1997 Logo P1998 Decal 33084-01 Filter Spring Retainer P719 Acoustical Foam P1990 1” Foam Pre-Filter...
Page 6 MICRO AIR SC150 ® CLEAN AIR SYSTEMS Serial Number: Supply Voltage: Date Installed: Installed By: Notes: L1118 03/16...
