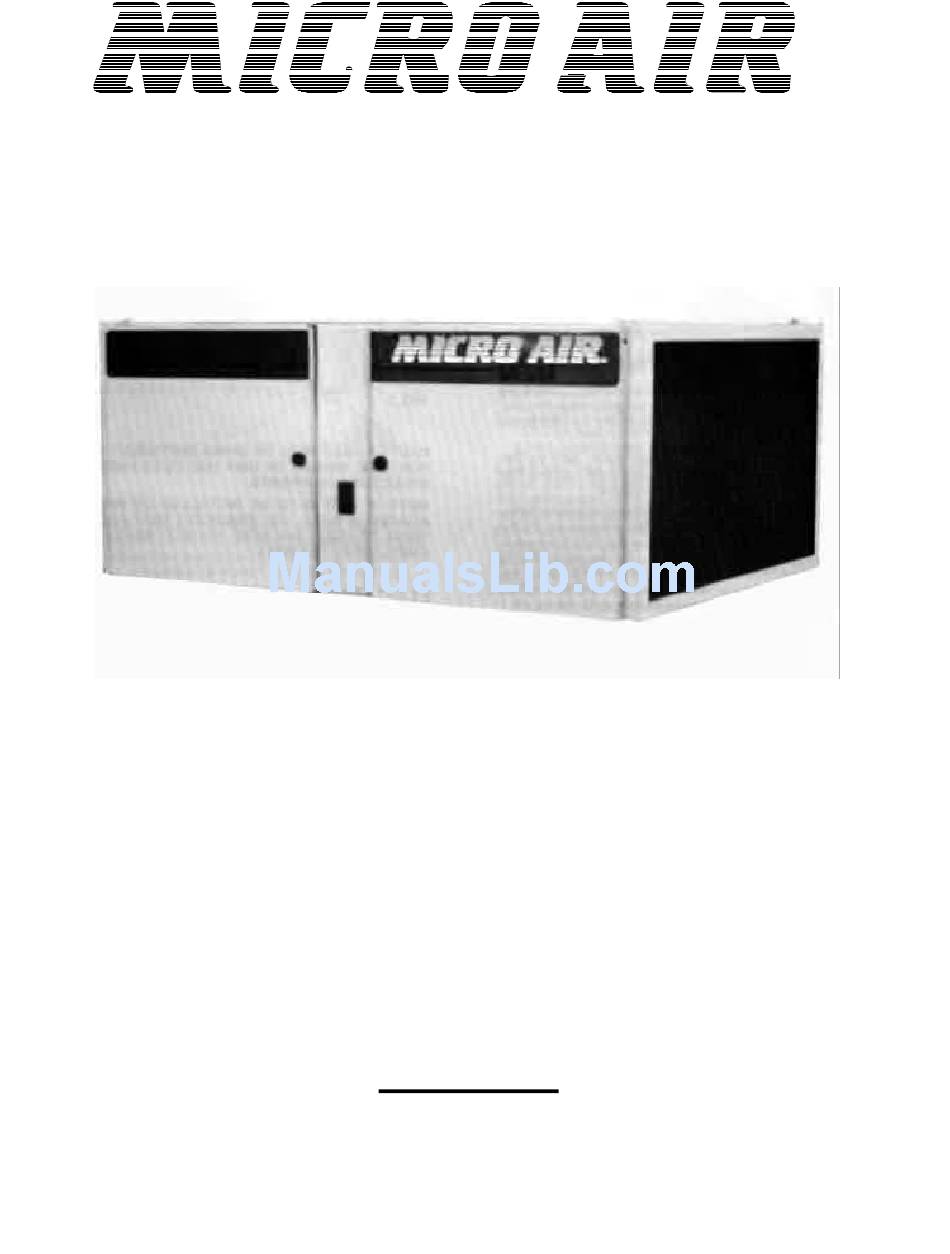

- Page 1 AIR CLEANERS MODEL MT1251 / MT1252 OWNER’S MANUAL CAUTION READ COMPLETE INSTRUCTIONS BEFORE OPERATING. PLEASE FILE FOR FUTURE REFERENCE.
-
Page 2: Electrical Installation
NOTE: For Wiring Diagram, see FIG. 4. MT1252 (Above ceiling applications): A remote wall switch is standard with the MT1252. The unit is installed by suspending above the ceiling, installing remote switch to nearby wall, and running wires from the remote switch to the MT1252. Once wiring is complete, connect name plate voltage to center terminals of the 2-speed switch. -
Page 3: Filter Replacement
ABOVE CEILING INSTALLATION has one or two filters. (Not applicable with charcoal filters.) The MT1252 comes standard with a set of rectangular plenums If necessary, replace with new filter(s). See parts list for filter part that include a 14” diameter collar (AM-14) to connect to flexible duct number. - Page 4 6”x12”x24” HEPA 99.997% DOP 34188-01 Remote Switch Kit (120 V.) (MT1251) (not shown) Switch not included ACCESSORIES 34188-02 Remote Switch Kit (230 V.) (MT1252) MT 1251 Remote Switch Kit 34188-01 (not shown) Switch included AM-14 Plenum Kit 1 ea. 14” collars...
