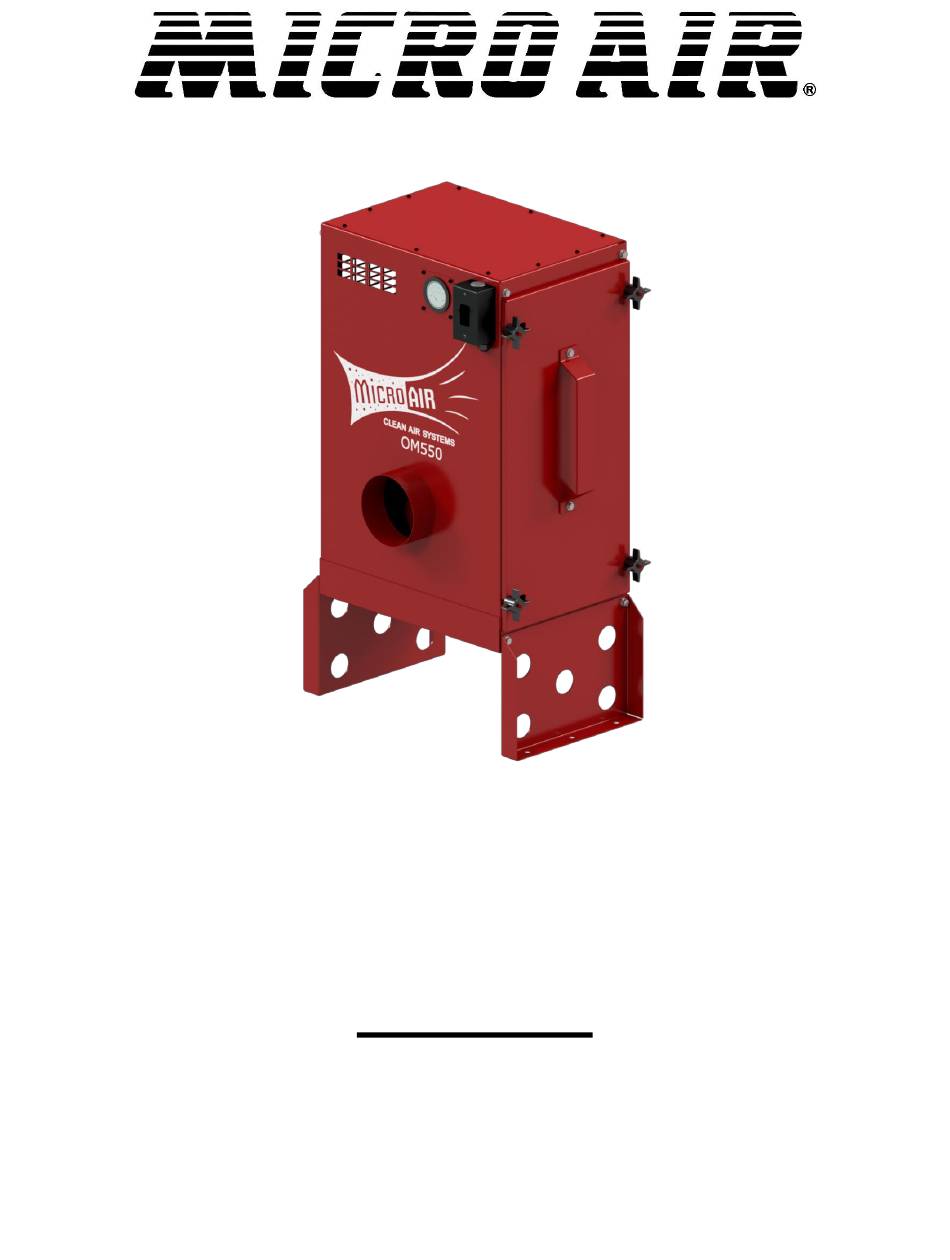

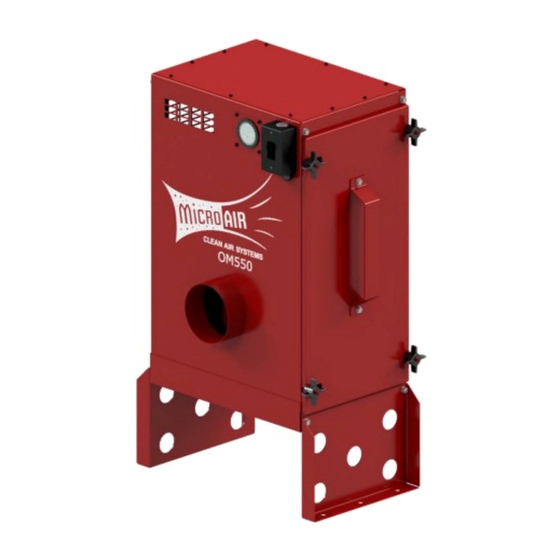

- Page 1 AIR CLEANERS OM55ODD OWNER’S MANUAL CAUTION READ COMPLETE INSTRUCTIONS BEFORE OPERATING. PLEASE FILE FOR FUTURE REFERENCE.
- Page 2 Secure to machine using standard bolts, nuts and lock washers. assembled) from crate packaging. CAUTION: The size and weight of the OM550DD requires Inspect unit for shipping damage and report any damage two persons or mechanical means to lift and hold during to freight carrier.
- Page 3 Thread one nut onto each rod. NOTE: It is recommended that a motor starter/protector be CAUTION: The size and weight of the OM550DD requires used in the supply circuit to this unit. See Wiring Diagram two persons or mechanical means to lift and hold during FIG.5.
- Page 4 CAUTION: Always make sure that the unit is turned off before changing filters or servicing the unit. GENERAL MAINTENANCE The OM550DD may be equipped with an optional Occasionally check the condition of the door seals for any Minihelic Gauge, which may be used to indicate when filter leaks.
- Page 5 FIG.5...
- Page 6 OM550DD PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 34451-01 Cabinet Weldment P3027 1/2 HP Blower Assy. 34461-01 Mounting Bracket P3028 3/4 HP Blower Assy. 34462-01 Door 39036-01 Minihelic Gauge Kit 30473-01 Door Handle 34465-01 Gauge Cover Plate (Not Shown)
- Page 7 NOTES _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________...
- Page 8 NOTES _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ Products of Metal-Fab Inc. P.O. Box 1138 • Wichita KS 67201 (316) 943-2352 •...
