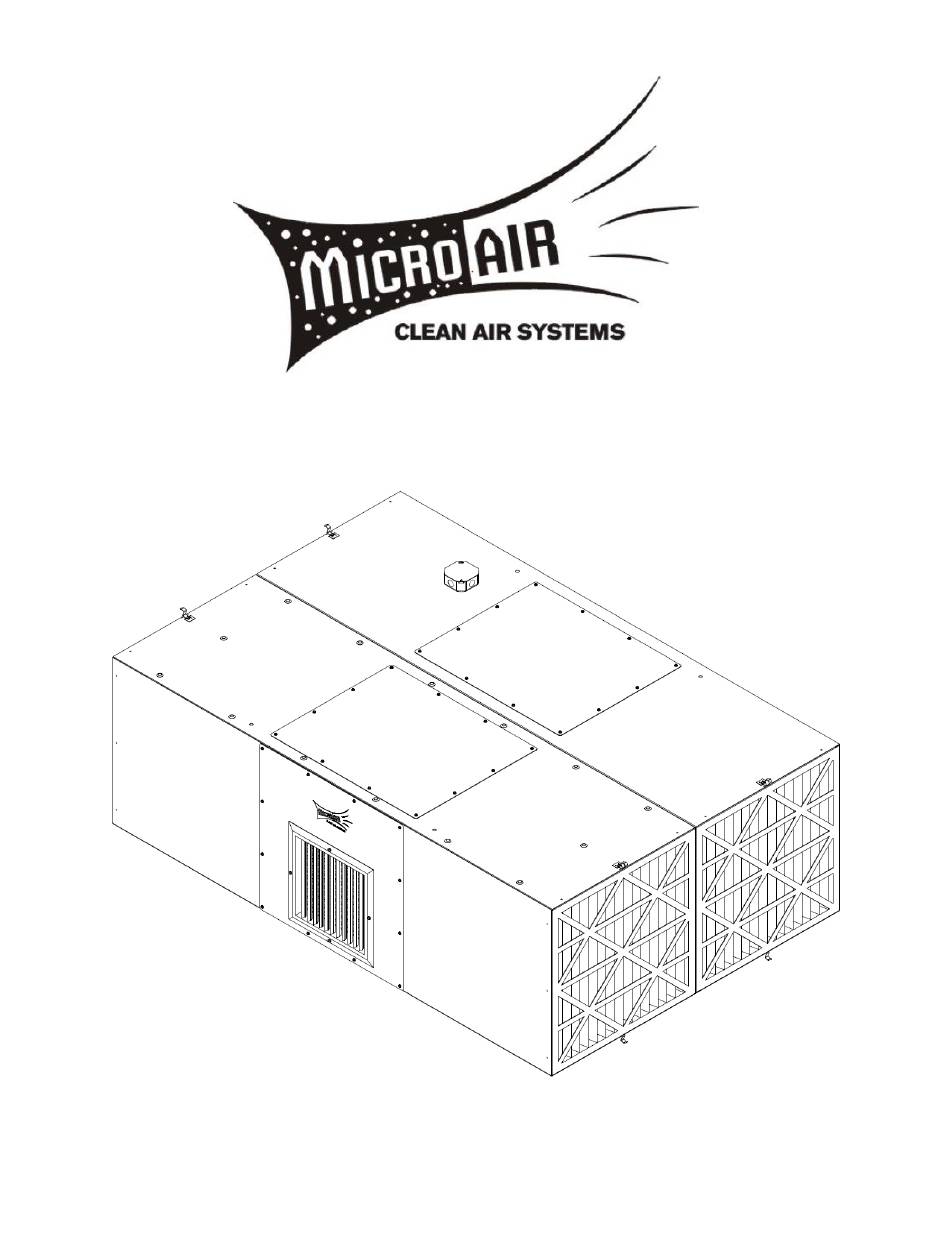

MXT5000/MXT7000
Installation and Operation Manual
This manual contains specific cautionary statements relative to worker safety. Read this manual thoroughly and follow as
directed. It is impossible to list all of the hazards of dust control equipment. It is important that use of the equipment be
discussed with a Micro-Air Representative. Persons involved with the equipment or systems should be instructed to
operate in a safe manner.
MICRO AIR
www.microaironline.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MXT5000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MICRO-AIR MXT5000

  • Page 1 It is impossible to list all of the hazards of dust control equipment. It is important that use of the equipment be discussed with a Micro-Air Representative. Persons involved with the equipment or systems should be instructed to operate in a safe manner.
  • Page 2 Improper installation or operation of this equipment can cause damage to equipment and / or injury to personnel. The installation / operation manual must be read and followed in its entirety. MXT5000 SPECIFICATIONS: Motor: 3 HP, 1760 RPM, TEFC Input Voltage:...
  • Page 3: Equipment / Tools Required

    MXT5000/MXT7000 MICRO AIR PRE-OPERATING INSTRUCTIONS: NOTE: The following instructions will vary depending on options ordered. 1. Inspect the unit for any visible damage that may have occurred during shipment. Report any damage to the delivery carrier. 2. Remove the shipping crate, shipping straps and plastic wrap from unit.
  • Page 4 MXT5000/MXT7000 MICRO AIR EYEBOLTS HANGING INSTRUCTIONS: 1. Remove the 4 threaded eyebolts and hardware from the Owner’s Manual envelope. 2. Place an eyebolt to each of the 4 through holes on top of the cabinet. Use 3/8-16 hex nut and 3/8” washer to fasten to cabinet.
  • Page 5 MXT5000/MXT7000 MICRO AIR Chain mounted to ceiling/roof truss Eyebolts (4) places FIG. 2 – Vertical Configuration. CHANNEL HANGING INSTRUCTIONS: 1. Remove 3/8” hardware from the Owner’s Manual envelope. 2. Lift unit to access the threaded holes on the bottom of the cabinet. Depending on the configuration, the number of bolts will be different.
  • Page 6 MXT5000/MXT7000 MICRO AIR Chain or all-thread mounted to ceiling/roof truss Mount C-channel (2) places 3/8” hardware (8) places 7/16” Dia. hole (4) places FIG. 3 – Horizontal configuration. Chain or all-thread mounted to ceiling/roof truss Mount C-channel (2) places 7/16” Dia. hole 3/8”...
  • Page 7: Wall Mount

    MXT5000/MXT7000 MICRO AIR WALL MOUNT: This option is only available for the vertical configuration of the MXT. 1. Remove 3/8” hardware from the Owner’s Manual envelope. 2. Install wall mount. The brackets have (8) 7/16” holes to mount to wall (4 holes on each angle).
  • Page 8 MXT5000/MXT7000 MICRO AIR 10’ FLOOR STAND: This option is only available for the vertical configuration of the MXT. 1. Remove 3/8” hardware from the Owner’s Manual envelope. Determine the location of where the unit is to be installed. 2. Install floor stand and anchor in place. Anchors must be sufficient to support dead, live, seismic, and other anticipated loads.
  • Page 9 MXT5000/MXT7000 MICRO AIR MXT5000 OPTIONAL SILENCER ASSEMBLY: Installation: 1. Remove parts from package and inspect for any damage during shipping. 2. Place silencer over exhaust panel. 3. Using supplied self-drilling sheet metal screws, attach silencer. See FIG. 8 for location of silencer assembly.
  • Page 10 MXT5000/MXT7000 MICRO AIR MXT7000 OPTIONAL SILENCER ASSEMBLY, NON-LOUVERED: Installation: 1. Remove parts from package and inspect for any damage during shipping. 2. Place silencer over exhaust panel. 3. Using supplied self-drilling sheet metal screws, attach silencer. See FIG. 10 for location of silencer assembly.
  • Page 11 MXT5000/MXT7000 MICRO AIR MXT7000 OPTIONAL SILENCER ASSEMBLY, LOUVERED: Installation: 1. Remove parts from package and inspect for any damage during shipping. 2. Place silencer over exhaust panel. 3. Using supplied self-drilling sheet metal screws, attach silencer. See FIG. 8 for location of silencer assembly.
  • Page 12 MXT5000/MXT7000 MICRO AIR OPTIONAL SCRIM PRE-FILTER: In order to access the filters, the Scrim pre-filter will need to be removed. Disengage the latch from the scrim pre-filter (6 places per side). The scrim pre-filter will be installed from the factory when purchased with the unit.
  • Page 13 MXT5000/MXT7000 MICRO AIR OPTIONAL MAGNEHELIC GAUGE: The Magnehelic assembly will be installed from the factory when purchased with the unit. Installation: 1. Remove parts from package and inspect for any damage during shipping. 2. Prepare the gauge. Install the male barb fittings on the pressure ports on the side of the gauge.
  • Page 14: Electrical Installation

    MXT5000/MXT7000 MICRO AIR ELECTRICAL INSTALLATION: All electrical work must be done by a qualified electrician according to local, state and national codes. 1. Remove the electrical box cover located on the top side of the unit. 2. Make electrical connections as shown in wiring diagram to the wires protruding from junction box.
  • Page 15: Changing The Filters

    NOTE: Typical pressure range for most applications is 1.0 in-w.g. for the MXT5000 and 2.0 in-w.g. for the MXT7000 until the filters will need to be replaced. Upon start up, the gauge should measure some amount of pressure drop (typically 0.4 in-w.g.).
  • Page 16 MXT5000/MXT7000 MICRO AIR MXT5000 PARTS LIST (HORIZONTAL CONFIGURATION): FIG. 17 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 30651-02 Blower Cabinet Weldment P2437 Eyebolts 30651-03 Motor Cabinet Weldment 30658-02 C-Channel Mount 30655-02 Exhaust Panel 30667-02 Scrim Pre-Filter 30656-02 Access Panel...
  • Page 17 MXT5000/MXT7000 MICRO AIR MXT5000 PARTS LIST (VERTICAL CONFIGURATION): FIG. 18 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 30651-02 Blower Cabinet Weldment P2437 Eyebolts 30651-03 Motor Cabinet Weldment 30658-02 C-Channel Mount 30655-02 Exhaust Panel 30667-02 Scrim Pre-Filter 30656-02 Access Panel...
  • Page 18 MXT5000/MXT7000 MICRO AIR MXT7000 PARTS LIST (HORIZONTAL CONFIGURATION): FIG. 19 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 30651-04 Horizontal Cabinet Weldment P2437 Eyebolts 30655-03 Exhaust Panel 30658-02 C-Channel Mount 30656-02 Access Panel 30667-02 Scrim Pre-Filter 30681-01 Access Panel 30672-02...
  • Page 19 MXT5000/MXT7000 MICRO AIR MXT7000 PARTS LIST (VERTICAL CONFIGURATION): FIG. 20 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 30651-05 Horizontal Cabinet Weldment P2437 Eyebolts 30655-04 Exhaust Panel 30658-01 C-Channel Mount 30656-02 Access Panel 30667-02 Scrim Pre-Filter 30681-02 Access Panel 30672-02...
  • Page 20 MXT5000/MXT7000 MICRO AIR NOTES ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ L3024 04/25...

This manual is also suitable for:

Mxt7000
