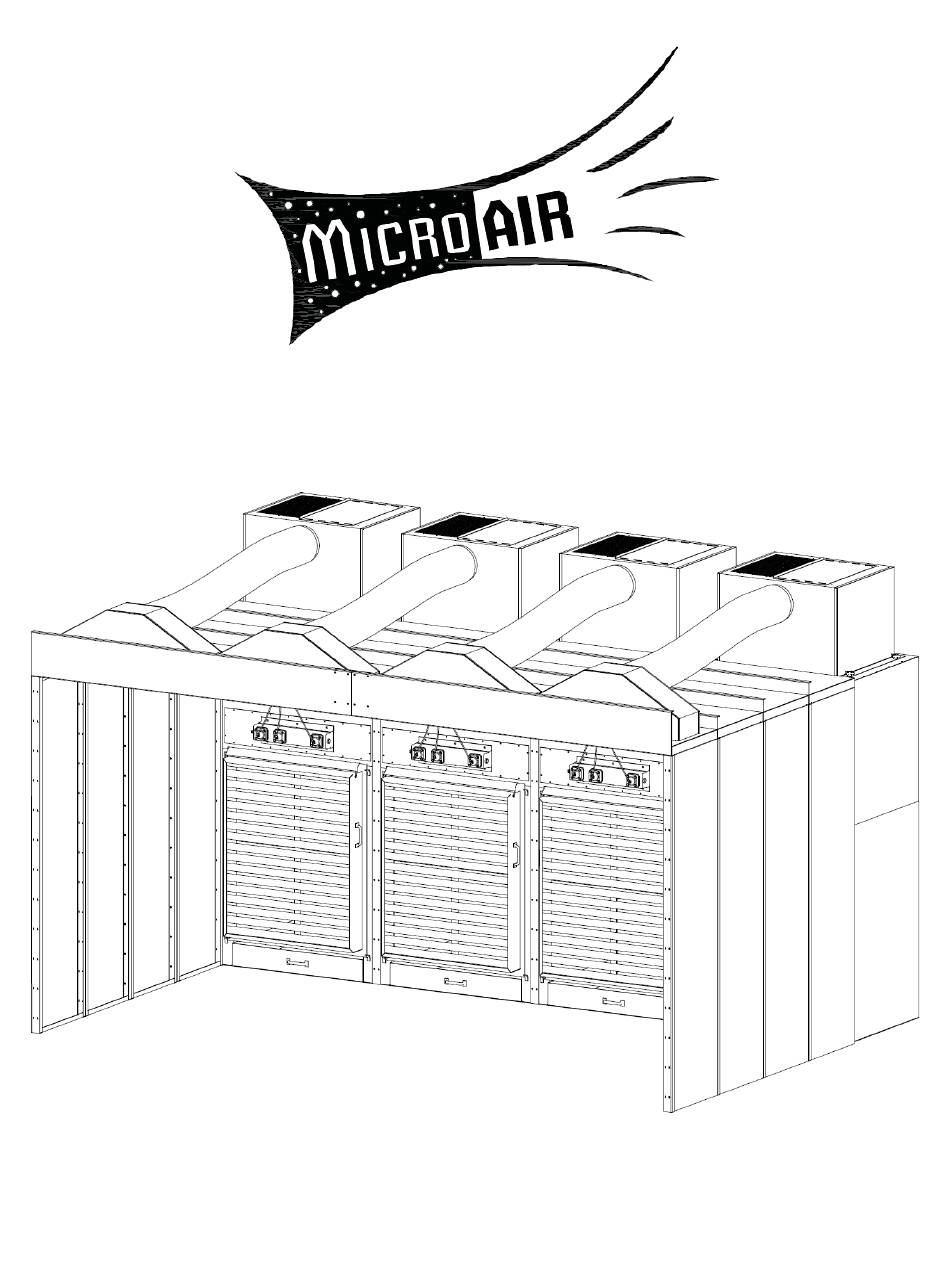

Page 1
This manual contains specific cautionary statements relative to worker safety. Read this manual thoroughly and follow as directed. It is impossible to list all of the hazards of dust control equipment. It is important that use of the equipment be discussed with a Micro-Air Representative.
BOOTH ASSEMBLY MICRO AIR CONTENTS TABLE 1 – 8’ W Booths COMPONENT DESCRIPTION CABIR1-888 CABIN1-888 CABUR1-888 CABUN1-888 CABIR2-888 CABIN2-888 CABUR2-888 CABUN2-888 INSULATED REGAIN SIDE PANEL BACK PANEL TOP PANEL REGAIN TOP PANEL VERTICAL SUPPORT HEADER HEADER BRACE HORIZONTAL SUPPORT HORIZONTAL SUPPORT BRACE 10"...
Page 3
BOOTH ASSEMBLY MICRO AIR Note: Before assembly, remove parts from packaging and inspect for any possible damage incurred during shipping. Identify each part and verify quantities. EQUIPMENT REQUIRED 1. Step ladders 2. Overhead Crane/Forklift 3. Lifting Straps 4. 3/8” Wrenches and/or Ratchet with appropriate sockets 5.
BOOTH ASSEMBLY MICRO AIR INSTALLATION 1. Assemble side panels to CAB module with the appropriate 1/4" hardware (See FIG. 1). Each panel is bolted on in twelve places onto the CAB module. Bolt through holes closest to the inside flange of the side panels. Make sure side panels are flush with CAB module at the bottom.
BOOTH ASSEMBLY MICRO AIR Back Side Panel Panel Connection Plate ¼” Hardware Anchor Module FIG. 2 FIG. 3 2. Assemble top panels together (Skip this step for 8’ W booths). The top panel assemblies consist of two panels. The outside edge of the panel is 5.25” to the center of the mounting slot.
Page 6
BOOTH ASSEMBLY MICRO AIR Panel ¼” Hardware FIG. 5 NOTE: For the 12’ W booth with regain, the regain portion of the top panel assembly will consist of 3 top panels bolted together. The outer panels are 48.25” wide each and the mid panel is 50.00”...
Page 7
BOOTH ASSEMBLY MICRO AIR 3. Seat horizontal supports at the front of the top panel segment (Skip this step for 8’ W booths). Bolt together the horizontal supports with the horizontal support brace (12 bolts total, see FIG. 7). NOTE: The horizontal support braces will have holes on the top flange. 8’ W booths do not include horizontal support braces.
Page 8
BOOTH ASSEMBLY MICRO AIR Module Top Panel Side Segment Panel FIG. 9 5. Once the top panel is set flush on the side panels, bolt to the CAB module and panels (see FIGS. 10, 11). The top panel assembly will bolt to the CAB module and in the side panels. Make sure to bolt through holes located nearest inside flange of panels.
Page 9
BOOTH ASSEMBLY MICRO AIR Top Panel Segment ¼” Hardware Module Side Panel FIG. 10 ¼” Hardware Top Panel Typ. (3) places Segment per side panel Side Module Panel FIG. 11...
BOOTH ASSEMBLY MICRO AIR 6. Bolt the next set of side panels to the booth. These side panels are joined with the vertical supports. Make sure the flange on the vertical support sits on the outside of the side panels (see FIGS.
BOOTH ASSEMBLY MICRO AIR Header Header Brace Side Panel Vertical Support Header FIG. 14 FIG. 15 Header ¼” Hardware Top Panel Side Panel FIG. 16...
Page 12
BOOTH ASSEMBLY MICRO AIR REGAIN NOTE: HEPA filtration is recommended for use with ALL Regain applications 1. Remove parts from packaging and inspect for any possible damage incurred during shipping. 2. Set the Regain module on top of the booth. 3.
