Page 1: Air Cleaners

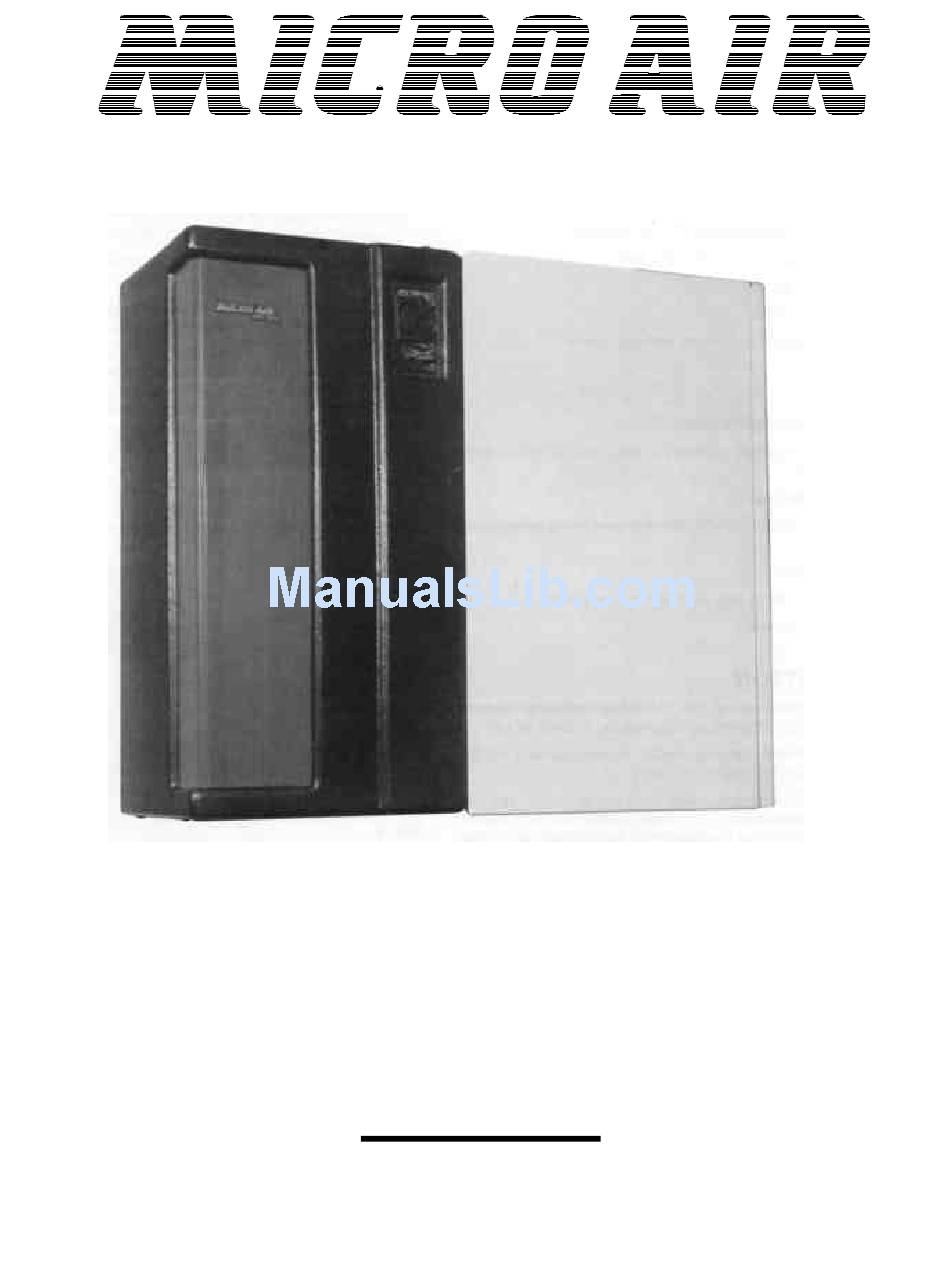

AIR CLEANERS MODEL WM 500 OWNER’S MANUAL CAUTION READ COMPLETE INSTRUCTIONS BEFORE OPERATING. PLEASE FILE FOR FUTURE REFERENCE. - Page 2 The high speed is used for heavier cleaning applications. 4. Once the wall bracket and unit bracket are in place, lift the WM 500 and mount to wall bracket.(Fig. 1)
- Page 3 1. Always be sure that unit is off before performing any service to the air cleaner. See wiring diagram attached to the inside of filter access cover for elec- trical reference. CAUTION: THE WM 500 DOES NOT HAVE INTERLOCK SWITCHES FOR INTERRUPTION OF POWER TO THE UNIT WHEN FILTER ACCESS COVER IS REMOVED. TO PERFORM WORK ON THE ELECTRICAL PORTION OF THE AIR CLEANER, DISCONNECT POWER TO UNIT FROM WALL OUTLET.
- Page 4 WM 500 ITEM# PART NO. DESCRIPTION ITEM# PART NO. DESCRIPTION P1296 SWITCH 32651-01 CABINET WELDMENT 15a. P1883 LOGO P443 CORD SET (120V.) 15b. P1293 LOGO RETAINER P1897 STRAIN RELIEF P1892 DECORATIVE PLASTIC COVER P1980 WALL GUARD P1893 SCREW FASTENERS (6 per unit)
