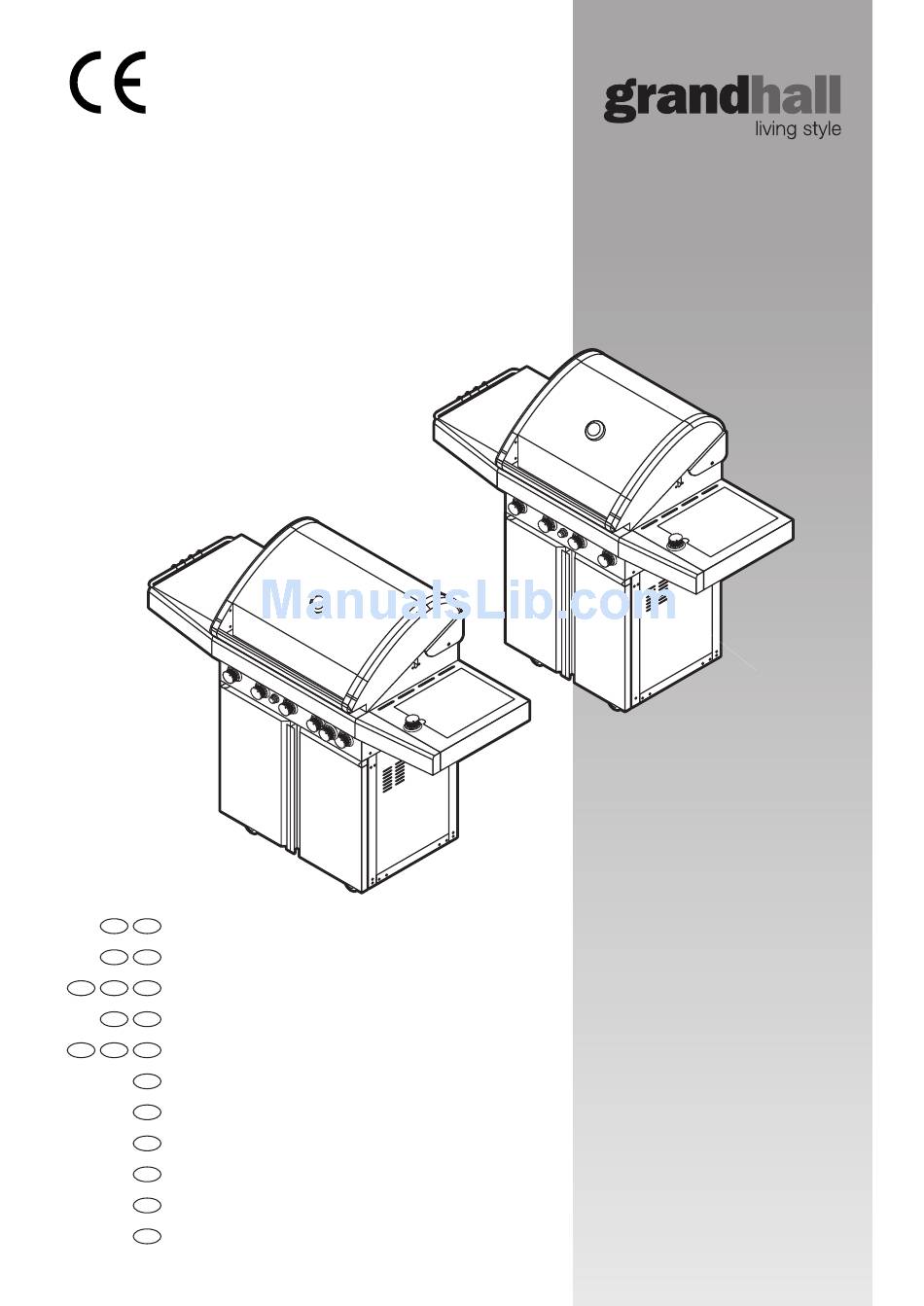

- Page 1 Maxim 423 425 Maxim 427B 429B Maxim 423, 425,427B and 429B Assembly instructions Instructions d’assemblage Montageanweisungen Istruzioni per il montaggio Montage-instructies Montering Kokoamisohjeet Instrucciones de armado Instruções para Montagem Monteringsvejledning Montering...
- Page 2 PART LIST - Maxim 423 Description Part Description Part Grease drainin g tra y Hood P0014632F6 P02706126A Hood hinge set Y0200007 Grease draining tray heat shield P06903025B Temperature gauge P00601451E Side shelf – left P01102020C Hood panel – left P0012744DM Side shelf decoration panel –...
-
Page 3: Service
Maxim 423 This diagram is provided to assist you identify parts if replacement is necessary. Contact your place of purchase to enquire about parts, availability and or service. - Page 4 PART LIST - Maxim 425 Description Part Description Part Grease receptacle P02701075B Hood P0014632EY Grease drainin g tra y P02706126A Hood hinge P05501142A Cotter pin P05501010B Grease draining tray heat shield P06903025B Hood trim plate P0014636DJ Side shelf – left P01102020C Temperature gauge P00601451E...
- Page 5 Maxim 425 This diagram is provided to assist you identify parts if replacement is necessary. Contact your place of purchase to enquire about parts, availability and or service.
- Page 6 PART LIST - Maxim 427B Ref Description Part Ref Description Part Hood P0015407F6 Side shelf decoration panel – left P07503026A Hood hinge set Y0200007 Side burner frame P02302014C Temperature gauge P00601451E Side shelf decoration panel – right P07502035A Hood panel – left P0012744DM Trolley bottom shelf P01004085R...
- Page 7 Maxim 427B This diagram is provided to assist you identify parts if replacement is necessary. Contact your place of purchase to enquire about parts, availability and or service.
- Page 8 PART LIST - Maxim 429B Ref Description Part Ref Description Part Hood P00154086A Side shelf decoration panel – left P07503026A Hood hinge P05501142A Side burner frame P023010254 Cotter pin P05501010A Side shelf decoration panel – right P07502035A Hood trim plate P0015409DJ Trolley bottom shelf P010040854...
-
Page 9: Purchase To Enquire About Parts, Availability And Or
Maxim 429B This diagram is provided to assist you identify parts if replacement is necessary. Contact your place of purchase to enquire about parts, availability and or service. - Page 10 ASSEMBLY Phillips flat-head screw " x " Qty: 16 Phillips flat-head screw " x 2" Qty: 8 Phillips flat-head screw " x " Qty: 2...
- Page 11 Phillips flat-head screw " x " Qty: 4 Phillips flat-head screw " x 2" Qty: 4...
-
Page 12: Maxim
INSTALL LEFT PARTITION PANEL – Maxim 429B model only Phillips flat-head screw " x Qty: 7 NOTE: For Maxim 429 model, four (4) screws to assemble partition panel to the trolley panels are stainless steel. Door hinges Phillips-head screw " x "... - Page 13 Barbeque body to trolley Phillips flat-head screw " x 1 " Qty: 4 Tool holder to side shelf Phillips-head screw M5 x 8 mm Qty: 2 Side shelves / side burner to barbeque head Phillips flat-head screw " x " Qty: 10 Socket Plug...
- Page 14 WARNINGS INFORMATION DO NOT OBSTRUCT THE VENTILATION DE VENTILATIEOPENINGEN IN DE TROLLEY NÃO OBSTRUA AS ABERTURAS DE OPENINGS IN THE TROLLEY. NIET BLOKKEREN. VENTILAÇÃO NO TRÓLEI. NE PAS BOUCHER LES OUVERTURES DE BLOCKERA EJ VENTILATIONSHÅLEN VENTILATIONSÅBNINGEN I TROLLEYEN MÅ VENTILATION DANS LE CHARIOT. I GRILLBAREN.
-
Page 15: Maxim 427B 3
COOKING COMPONENT INSTALLATION IGNITION BATTERY Maxim 423, 425 Secondary cooking / warming rack Grill plate Flame tamer battery Igniter Hot plate Spring Contact Slots for secondary cooking / warming rack Maxim 427B, 429B TEMPERATURE GAUGE Secondary cooking / warming rack... - Page 16 •Side 1.05 mm – I 3+ (28-30/37) – I 3B/P (30) 0.90 mm – I 3B/P (50) INPUT Maxim 423, 425 •Main 17.6 kW – 1278 grams / h •Side 4.5 kW – 327 grams / h Maxim 427B, 429B •Main...
- Page 17 COOKING WITH HOOD OPEN 250˚ COOKING WITH HOOD DOWN 250˚...
- Page 20 NB: Denne informasjon er kun veiledende. Spesifikasjoner kan variere Spesifikasjoner kan endres uten varsel. som stipulert av forhandler, eller i henhold til nasjonale krav. Manufacturer: Grand Hall Enterprises Co. Ltd. 9th Fl. No 298 Rueiguang Rd Neihu, Taipei, Taiwan P80184023K Printed 11/2010...
