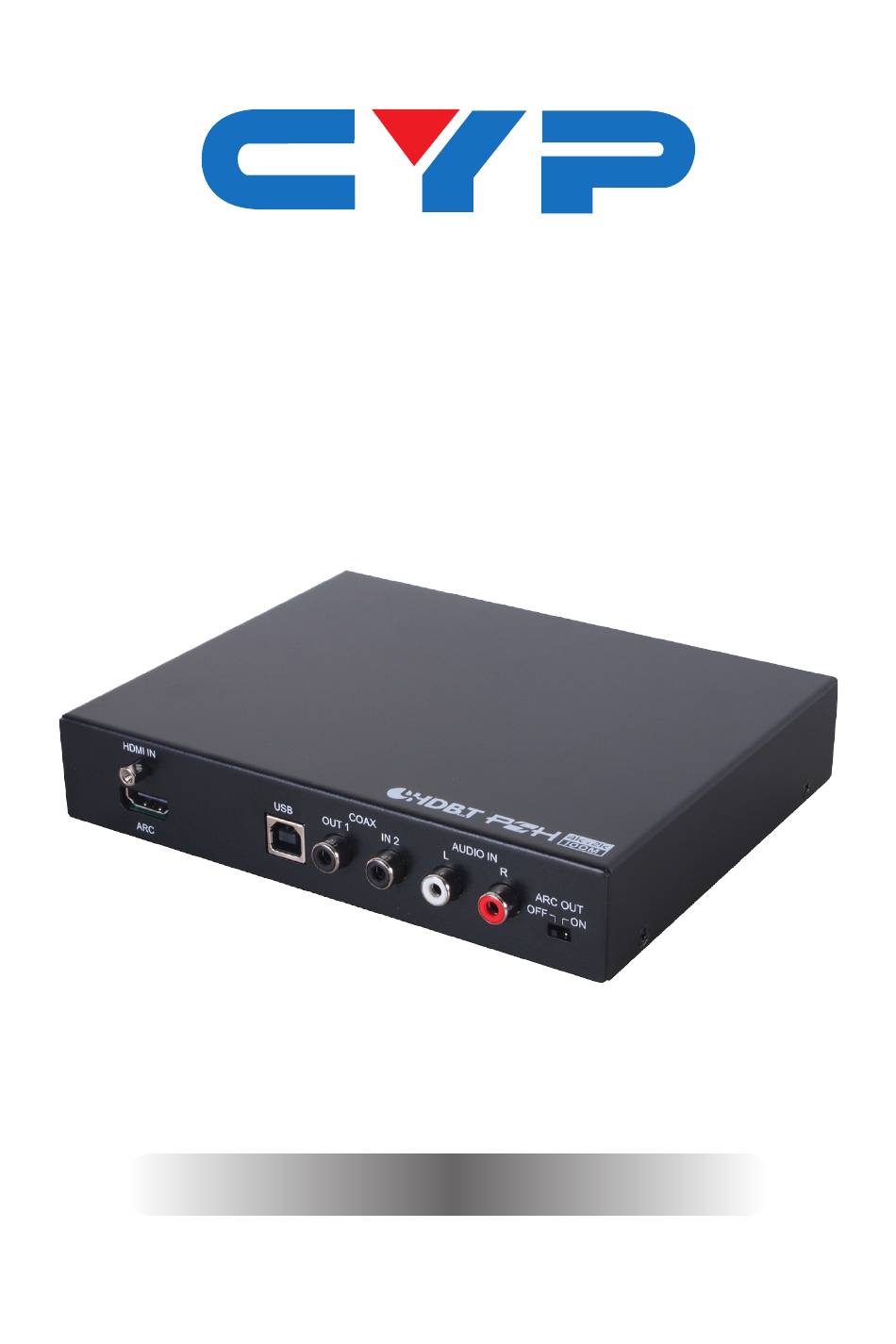

- Page 1 CH-1601TX HDMI/Audio over CAT5e/6/7 Transmitter with 48V PoE Operation Manual Operation Manual...
-
Page 3: Copyright Notice
DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........5 6.3 IR Cable Pin Assignment....6 6.4 D-Sub 9-Pin Assignment ....6 7. -
Page 6: Introduction
1. INTRODUCTION This HDMI and Audio over Single CAT5e/6/7 Transmitter can send uncompressed audio/video along with controls, IP and USB data over a single run of CAT5e/6/7 cable up to 100m. It has the added benefit of control through the built-in RS-232 and IR ports and a LAN serving connection. -
Page 7: Features
5. FEATURES • Supports HDBaseT 2.0 specification supporting over a single CAT6/7 cable up to 100m/328ft and CAT5e cable up to 90m/295ft • Fully compliant with HDMI 1.4, and compatible with HDMI 2.0 (4K2K 60Hz with 4:2:0) • HDMI (with 3D & 4Kx2K support), HDCP and DVI compliant •... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel RS 232 IN IR IN 2 IR OUT 1 CAT5e/6/7 OUT DC 48V UPDATE POWER Update Switch Switch this deep switch to right for firmware update use, under normal operation, leave the switch on left. RS-232 IN Connect to a PC or Laptop with D-Sub 9- pin female cable for the transmission of RS-232 commands. - Page 9 CAT5e/6/7 OUT Connect to the Receiver unit with a single CAT5e/6/7 cable for transmission of all data signals. The yellow LED will illuminate to represent the link from Receiver is steady, when it blink irregularly it represent the link error or when not illuminate it means no link with Receiver.
-
Page 10: Rear Panel
6.2 Rear Panel HDMI IN COAX AUDIO IN OUT 1 IN 2 ARC OUT HDMI IN Connect to HDMI source equipment such as a DVD or Blu-ray player. Connect from PC or Laptop for data transmit to or control from the Receiver’s USB slots. -
Page 11: Ir Cable Pin Assignment
6.3 IR Cable Pin Assignment IR Blaster Power IR Blaster Signal IR Receiver IR Signal Power Grounding 6.4 D-Sub 9-Pin Assignment Define TX / RX TxD / RxD RxD / TxD... -
Page 12: Connection Diagram
7. CONNECTION DIAGRAM HDMI IN COAX AUDIO IN OUT 1 IN 2 ARC OUT HDMI DVD or Blu-ray Player Active Speakers DVD or Blu-ray Player 60° PC or Note Book 1.5m 1.5m RS232 Equipped HDMI Switcher 60° 60° IR Extender IR Blaster RS-232 Note Book... -
Page 13: Specifications
8. SPECIFICATIONS Video Bandwidth 340MHz/10.2Gbps Input Ports 1 x HDMI 1 x LAN, 1 x RS-232, 1 x IR, 1 x USB, 1 x Coaxial, 1 x L/R Output ports 1 x CAT5e/6/7, 1 x IR 1 x Coaxial IR Frequency 30~50kHz Baud Rate Up to 115200bps... -
Page 14: Cat5E/6/7 Cable Specification
8.1 CAT5e/6/7 Cable Specification Cable Pixel clock Video Data Supported Range Type rate Rate Video CAT5e/6/7 100 m <=225 MHz <=5.3 Gbps Up to 1080p, (HD Video) 60 Hz, 36 bits, 3D (data rates lower than 5.3 Gbps or below 225 MHz TMDS clock). - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CH1601TX...
