- Page 1 CH-506TXWP & RXWP HDMI & IR over Single CAT5e/CAT6 Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Transmitter .........3 6.2 Receiver ..........4 7. D-Sub 9 Pin Definitions ......5 8. -
Page 6: Introduction
1. INTRODUCTION The device that can make your home or office more efficient, this unit of HDMI over Single CAT5e/6 can transmit and receive uncompressed audio/video, control through the built-in RS-232 and IR ports and Power on Ethernet(POE) over 100M with all plate design. Hence, if you want to make your home or office more efficient, get the HDMI &... -
Page 7: Features
5. FEATURES • HDMI 1.4 with 3D, 4k x 2k support, HDCP & DVI Compliant • Supports HDCP repeater and CEC bypass • Simultaneously uncompressed data sending over a single 100M/328ft with CAT6 or CAT5e cable • Uncompressed video 1080p, 60Hz, 36bits •... -
Page 8: Operation Controls And Functions

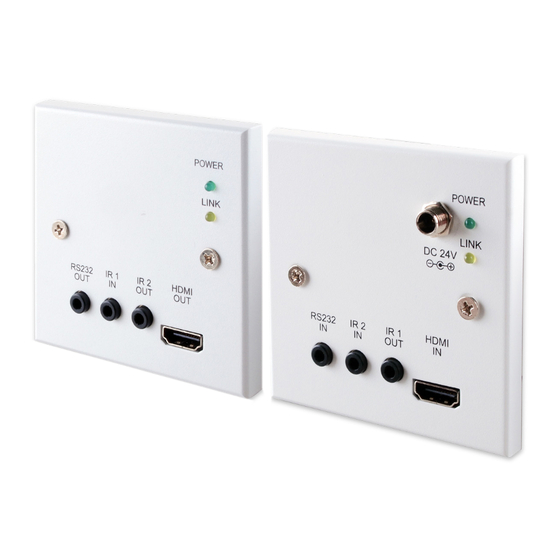

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter Front Rear POWER LINK DC 24V RS232 IR 2 IR 1 HDMI RS-232 IN: This slot is to connect with 3.5Ø phone jack RS-232 cable from PC/NB equipment for sending RS-232 commands. IR 2 IN: This slot is to connect with the IR receiver cable included in the package for IR signal receiving. -
Page 9: Receiver
6.2 Receiver Front Rear POWER LINK RS232 IR 1 IR 2 HDMI RS-232 OUT: This slot is to connect with 3.5Ø phone jack RS-232 cable from device equipment for receiving RS-232 commands. IR 1 IN: This slot is to connect with the IR receiver cable included in the package for IR signal receiving. -
Page 10: D-Sub 9 Pin Definitions
7. D-SUB 9 PIN DEFINITIONS Define TX/RX TxD/RxD RxD/TxD... -
Page 11: Connection Diagram
8. CONNECTION DIAGRAM POWER POWER CAT5e(100M)/ LINK CAT6(100M) LINK DC 24V RS232 IR 2 IR 1 HDMI RS232 IR 1 IR 2 HDMI RS-232 Cable RS-232 Cable HDMI Cable HDMI Cable IR2 Blaster IR1 Blaster IR2 Receiver IR1 Receiver 60° 60°... -
Page 12: Specifications
9. SPECIFICATIONS Transmitter Input 1×HDMI, 1×IR Extender, 1×RS-232 Output 1×CAT5e/6, 1×IR Blaster Receiver Input 1×CAT5e/6, 1×IR Extender Output 1×HDMI, 1×RS-232, 1×IR Blaster Power Supply 24V / 1.25A DC (US/EU standards, CE/FCC/ UL certified) ESD Protection Human-body Model: ±8kV (air-gap discharge) ±4kV (contact discharge) IR Frequency 30~50 kHz... -
Page 13: Acronyms
10. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 Cable Consumer Electronics Control Digital Visual Interface HDCP High-bandwidth Digital Content Protection HDMI High Definition Multimedia Interface Infrared... - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
