- Page 1 CH-507TXBD & RXBD HDMI to CAT5e/6 with LAN/IR/RS-232/ Bidirectional PoE Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Transmitter Front and Rear Panels ..3 6.2 Receiver Front and Rear Panels ..4 6.3. -
Page 6: Introduction
1. INTRODUCTION The HDMI with RS-232 over Single CAT5e/6 transmitter and receiver set can send uncompressed audio/video over a single run of CAT5e/6 cable up to 100 m with PoE feature and the added benefit of control through the built-in RS-232 and IR ports and a bi-directional LAN connection. -
Page 7: Features
5. FEATURES • HDMI 1.4 with 3D, 4k×2k support, HDCP & DVI Compliant • Supports CEC bypass • Simultaneous transmission of uncompressed data over a single 100 m/328 ft CAT5e/6 cable • Uncompressed video 1080p, 60 Hz, 36-bit • Audio support up to 7.1CH & Dolby TrueHD, DTS-HD •... -
Page 8: Operation Controls And Functions

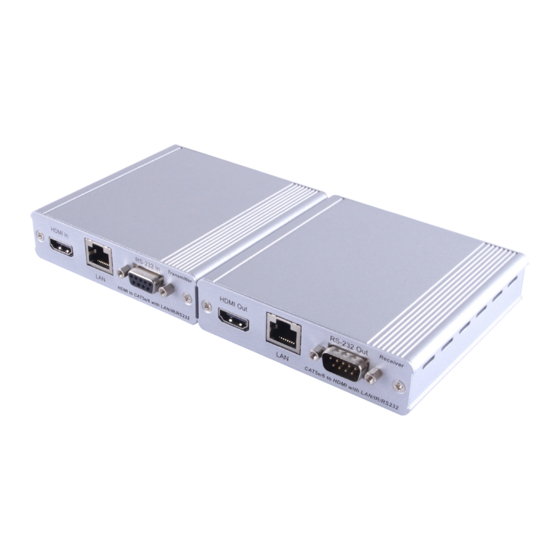

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter Front and Rear Panels Front Rear Transmitter IR1 Blaster RS-232 In HDMI In Power DC 24V IR2 Extender HDMI to CAT5e/6 with LAN/IR/RS232 HDMI In: Connect to HDMI source equipment such as a DVD or Blu- ray player. -
Page 9: Receiver Front And Rear Panels
6.2 Receiver Front and Rear Panels Front Rear Receiver IR2 Blaster RS-232 Out HDMI Out Power DC 24V IR1 Extender CAT5e/6 to HDMI with LAN/IR/RS232 HDMI Out: Connect to a HDMI equipped TV/monitor for display of the HDMI input source signal. LAN: Connect to a PC or Laptop to the Internet or network connection. -
Page 10: Ir Cable Pin Assignment
6.3. IR Cable Pin Assignment IR Blaster Power 5 V IR Blaster Signal IR Signal IR Receiver Power 5 V Grounding 6.4. D-Sub 9 Pin Definitions Define TX / RX TxD / RxD RxD / TxD... -
Page 11: Connection Diagram
7. CONNECTION DIAGRAM DVD or Blu-ray Player Internet Modem or Router 1.5m HDMI CAT5e/6 60° RS-232 IR Blaster Power Supply RS-232 In Transmitter HDMI In HDMI to CAT5e/6 with LAN/IR/RS232 IR1 Blaster 60° Power DC 24V IR2 Extender RS-232 Equipped IR Extender PC or Notebook IR Extender... -
Page 12: Specifications
8. SPECIFICATIONS Video Bandwidth 300MHz / 9Gbps Ethernet Speed 100 Mbps Transmitter Input 1×HDMI, 1×IR Extender,1×RS-232, 1×LAN Output 1×CAT5e/6, 1×IR Blaster Receiver Input 1×CAT5e/6, 1×IR Extender Output 1×HDMI, 1×RS-232, 1× IR Blaster, 1× LAN HDMI In/Out Cable Up to 10 Meters Distance CAT6 In/Out Cable Up to 100 Meters... -
Page 13: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 Cable Consumer Electronics Control Digital Visual Interface HDCP High-bandwidth Digital Content Protection HDMI High Definition Multimedia Interface Infrared... - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
