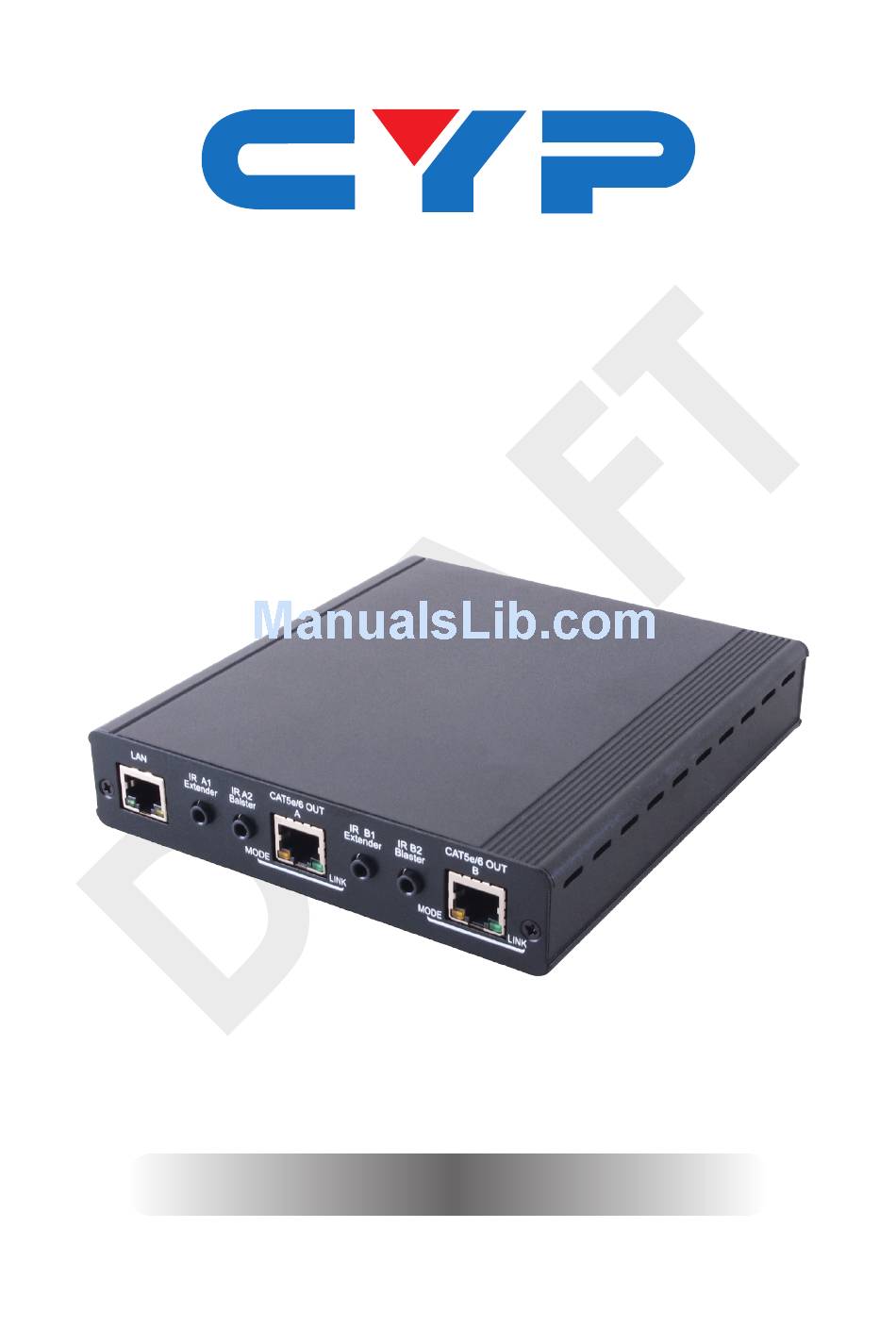

- Page 1 CHDBT-1H2CE 1 by 3 HDMI to HDMI & CAT5e/6/7 with LAN/IR/ RS-232 Transmitter Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 7. Connection Diagram ......5 8. -
Page 6: Introduction
1. INTRODUCTION The HDMI over HDMI & CAT5e/6/7 transmitter can supports resolutions up to 1080p Full HD, Deep Color and 4Kx2K timing, 3D and multichannel digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD from Hi-Def sources to one HDTV and CAT5e/6/7 outputs. -
Page 7: Features
5. FEATURES • HDMI v1.4 with 3D & 4Kx2K supported, HDCP and DVI compliant • The HDMI and CAT5e/6/7 output are play the same source simultaneously • Supports Deep Color up to 1080p 36-bit • Supports wide range of PC from VGA to WUXGA and HDTV resolutions up to 4Kx2K •... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel DC 24V HDMI OUT HDMI IN LINK POWER SERVICE RS232 IN RS232 IN RS232 IN A/B Connect to a PC/laptop or RS-232 enabled device (with supplied 3.5mm phone jack to D-Sub 9 pin adaptor) for the transmission of RS-232 commands. -
Page 9: Rear Panel
6.2 Rear Panel CAT5e/6 OUT CAT5e/6 OUT IR A1 IR A2 IR B1 IR B2 Extender Extendrt Blaster Blaster MODE LINK MODE LINK Connect to an internet or network connection. IR A1/B1 IR Extender Connect to the IR extender for IR signal reception of the remote control of this deice or the source and display equipment. -
Page 10: Connection Diagram
7. CONNECTION DIAGRAM TV/Display 1.5m 60° RS-232 Equipped PC or Notebook 60° DVD/Blu-ray Player RS-232 Equipped PC or Notebook DC 24V HDMI OUT HDMI IN LINK POWER SERVICE RS232 IN RS232 IN CAT5e/6 OUT CAT5e/6 OUT IR2 Blaster IR A1 IR A2 IR B1 IR B2... -
Page 11: Specifications
8. SPECIFICATIONS Video Bandwidth 300Mbps/10.2Gbps Input port 1 x Female HDMI type A, 2 x 3.5mm RS232, 2 x IR Digital Eyes, 1 x LAN (Ethernet),1 x USB (Service Only) Output port 1 x HDMI, 2 x CAT5e/6/7, 2 x IR Emitters Resolution Up to 4Kx2K Power Supply... -
Page 12: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Digital Theater System EDID Extended Display Identification Data HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface HDTV High-Definition Television... - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw 20121116 MPM-CHDBT1H2CE...
