AIA Cable Pinout

32
SenSys User Manual
1
35

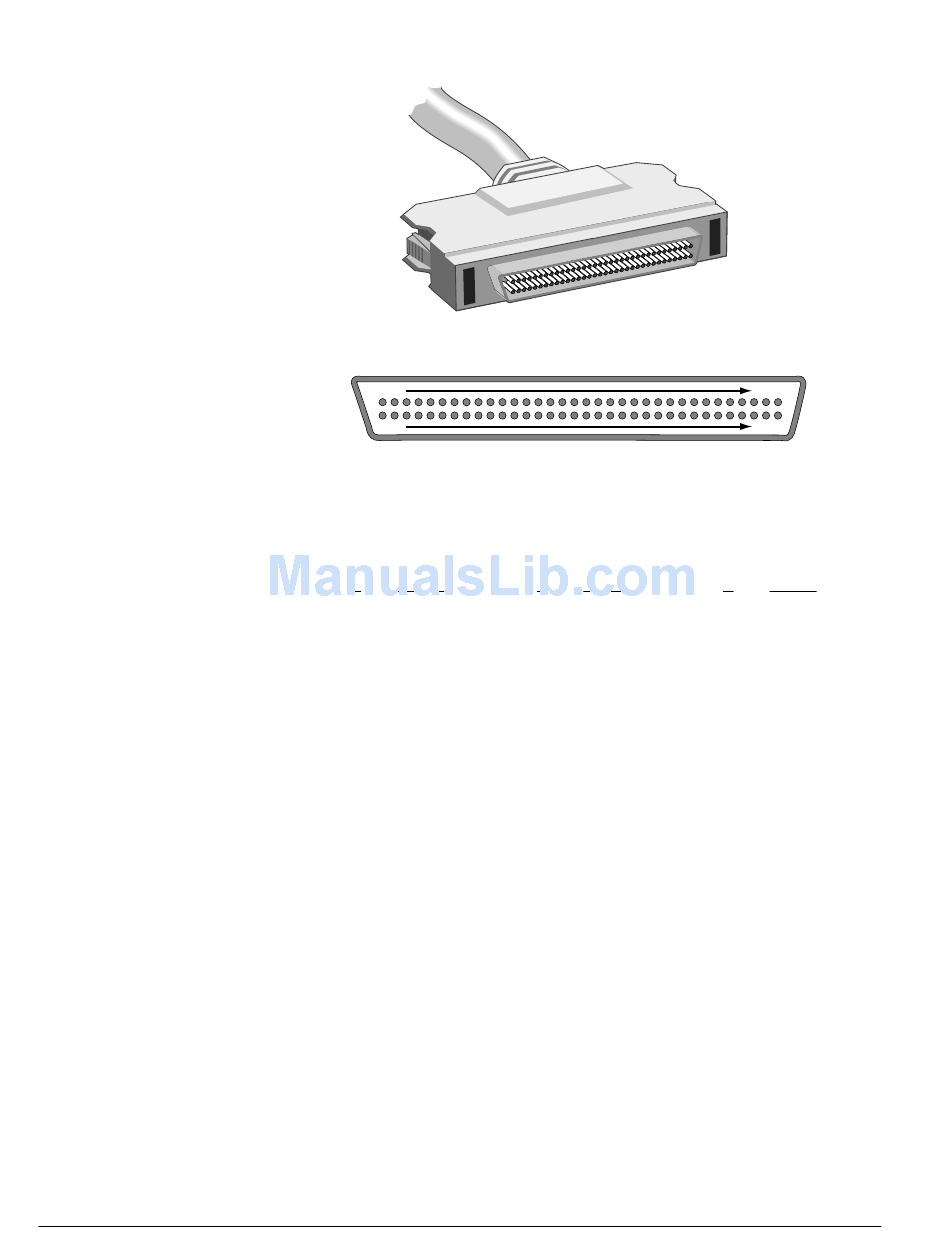

AIA Cable Pinout
Pin Signal
# Name
1 Ground
2 VD15+
3 VD14+
4 VD13+
5 VD12+
6 VD11+
7 VD10+
8 VD9+
9 VD8+
10 VD7+
11 VD6+
12 Ground
13 VD5+
14 VD4+
15 VD3+
16 VD2+
17
18
19 VD1+
20 VD0+
21
22 TX+
23 RX+
Pin Signal
# Name
24
25 FEN+
26 LEN+
27
28
29 PIX+
30
31
32
33
34 Ground
35 Ground
36 VD15-
37 VD14-
38 VD13-
39 VD12-
40 VD11-
41 VD10-
42 VD9-
43 VD8-
44 VD7-
45 VD6-
46 Ground
34
68
Pin Signal
# Name
47 VD5-
48 VD4-
49 VD3-
50 VD2-
51
52
53 VD1-
54 VD0-
55
56 TX-
57 RX-
58
59 FEN-
60 LEN-
61
62
63 PIX-
64
65
66
67
68 Ground
