Connecting the
Power Brick
6
SenSys User Manual
The power brick is a switched supply that is shipped with a power supply cord.
Caution: Connecting or removing a live power cable to or from the SenSys camera can
damage the camera's electronic components. Do not attach or remove any cables while
the power brick is switched on (On = |, Off = 0) and plugged into an electrical outlet.
To connect the power brick to the camera:

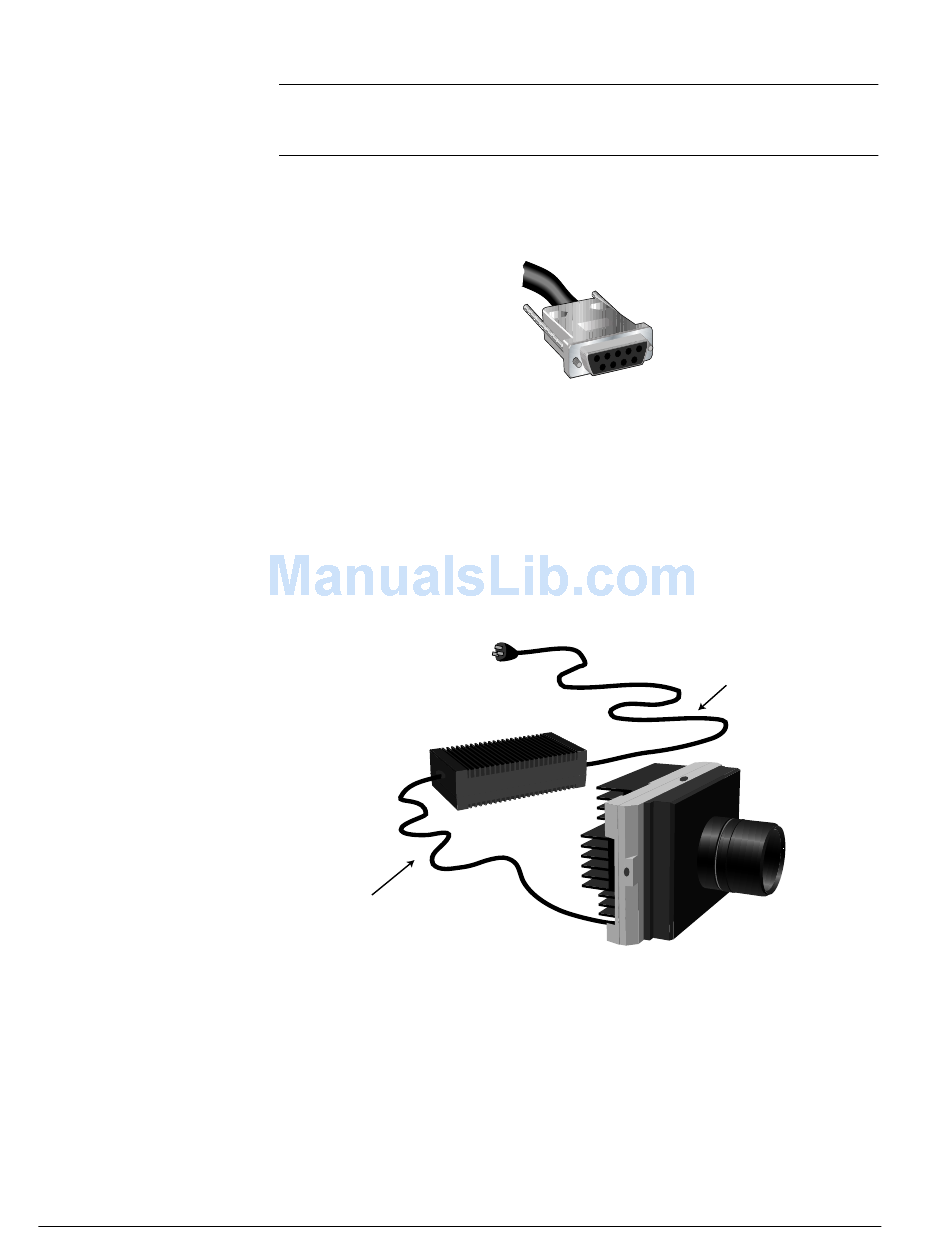

Power Brick Cable with 9-pin, D Connector
1. Connect the power brick cable's 9-pin, D connector to the power port on
the back of the camera (see the diagram on page 14). Secure by
tightening the connector screws. Do not extend this cable.
2. With the power brick switched off and the power cord unplugged from
an electrical outlet, connect the power cord to the power brick (and later
to an electrical outlet).
Power
Off (0)
Power Brick Cable
Instructions for powering on and powering off the camera system are provided
in the Software Guide. When you turn on your camera later (after installing the
interface hardware), the red light on the camera illuminates immediately,
indicating that the camera has power. In 20-40 seconds, the green light
illuminates, indicating that the camera has reached operating temperature. See
Status Lights on page 14 of this User Manual for more information.
Power
Cord
