C-Mount Adapter - Photometrics SenSys User Manual

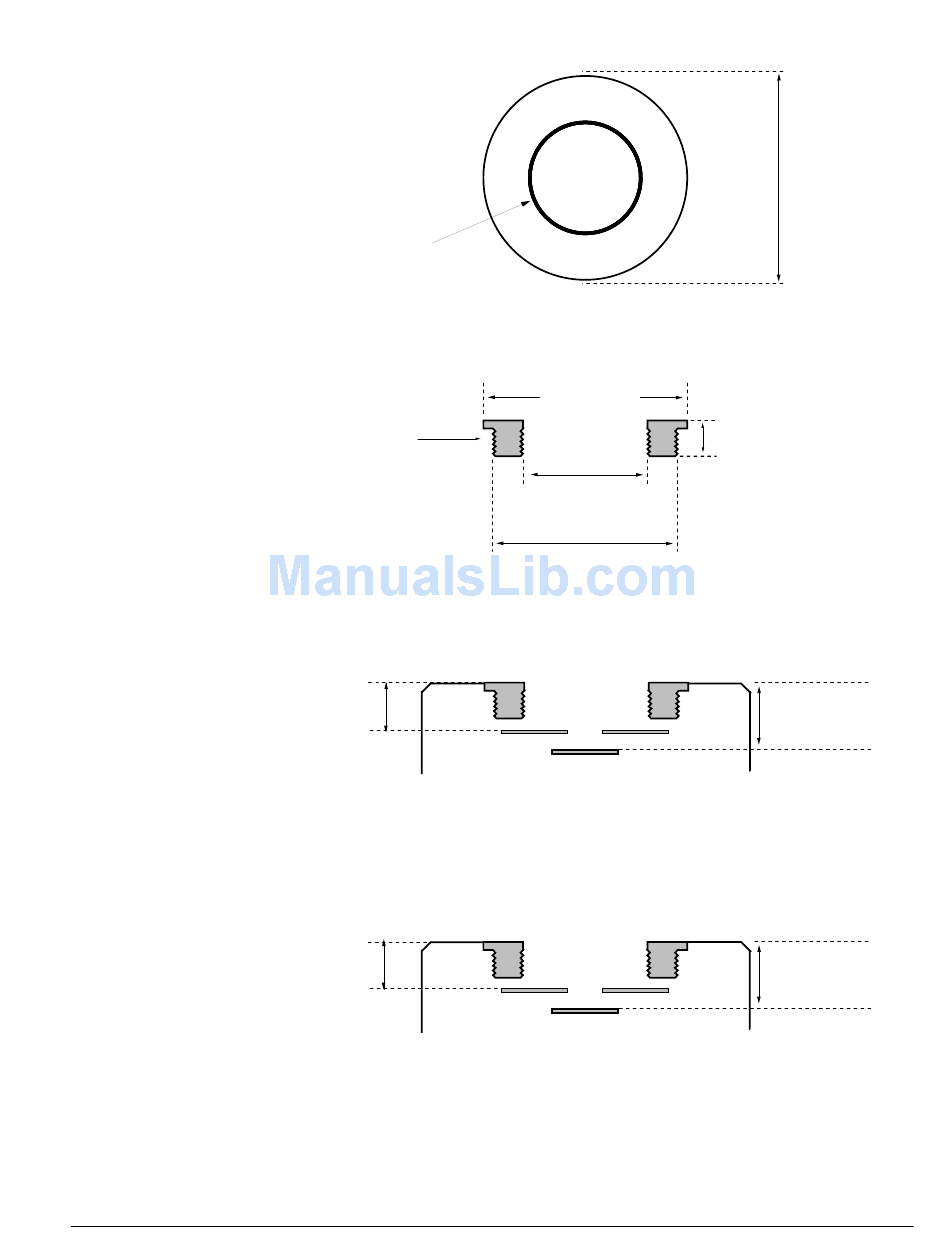

C-Mount Adapter

1.00-32 UN Thread
Top View of C-mount
Threads at
32 threads/inch
Side View of C-mount (unmounted)
Shutter Blades
.32 in
(8.0 mm)
CCD Focal Plane
Side View of C-mount (mounted) for KAF 0400 and KAF 1600
Shutter Blades
.32 in
(8.0 mm)
CCD Focal Plane
Side View of C-mount (mounted) for KAF 1400
1.60 in dia.
(40.6 mm)
.26 in
.96 in dia. (6.6 mm)
(24.5 mm)
1.50 in dia.
(38.1 mm)
Chapter 6. Specifications
1.60 in dia.
(40.6 mm)
.63 in
(16.0 mm)
minimum
distance
.65 in
(16.6 mm)
minimum
distance
27
