J
U
S
T
P
L
A
Y
I
T
D
10B
Instrument Microphone
User Guide
G
O
A
N
G
-
F
A
N
N
C
O
.
,
L
T
D
.
2007, SUPERLUX I
nc.
LB100D10B02EN (Rev. 1)
Specifications
Type
Dynamic microphone
Polar pattern
Unidirectional (Super Cardioid), rotationally symmetrical about
microphone axis, uniform with frequency. (Figure 1)
Frequency response
50 to 18,000 Hz (Figure 2)
Sensitivity
(at 1,000 Hz Open Circuit Voltage)
-54.0dBV/Pa (2.0mV/Pa)
±
3dB , 1Pa=94dB SPL
Rated impedance
200Ω
Connector
Integral 3 pin male XLR type
Finish
Black paint body and silver housing
Environmental conditions
The D10B operates between -10℃ to +50℃(14℉ to 122℉) with
relative humidity between 0 to 95%.
Dimensions
Φ42.5mm x 144.0mm (1.67in. x 5.67in.),figure 3.
Net weight
220.0 grams (7.76 oz)
RoHS
The D10B including the product and packages follow the instruction of
EU 2002/95/EC and comply to RoHS.
-1-
250 Hz
2000 Hz
500 Hz
4000 Hz
1000 Hz
8000 Hz

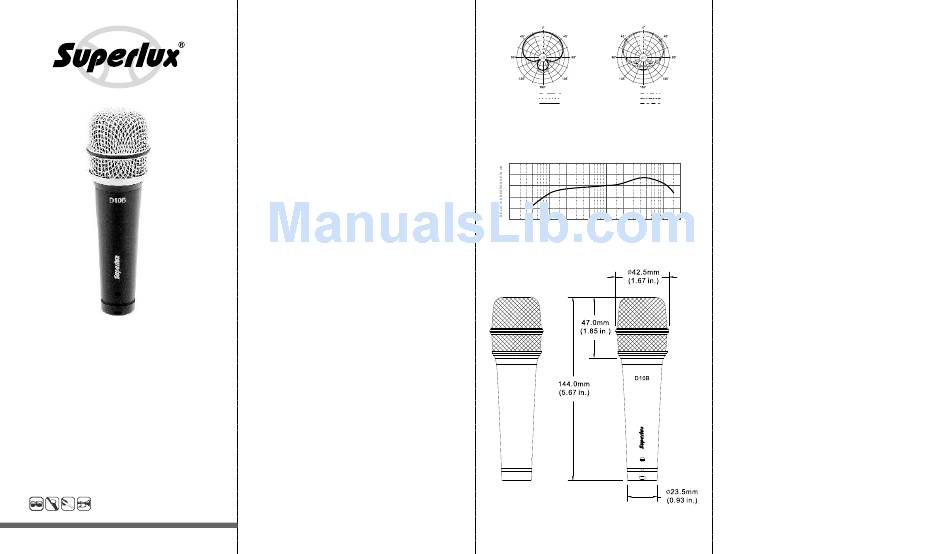

TYPICAL POLAR PATTERN (Figure 1)
Fre quency Response
dB
10
0
-10
-20
20
50
100
200
500
1000
2000
5000
10000
20000 Hz
FREQUENCY IN Hz
TY PICAL FR EQUENCY RESPONSE (Fi gur e2 )
Dimensions (Figure3)
-2-
Description

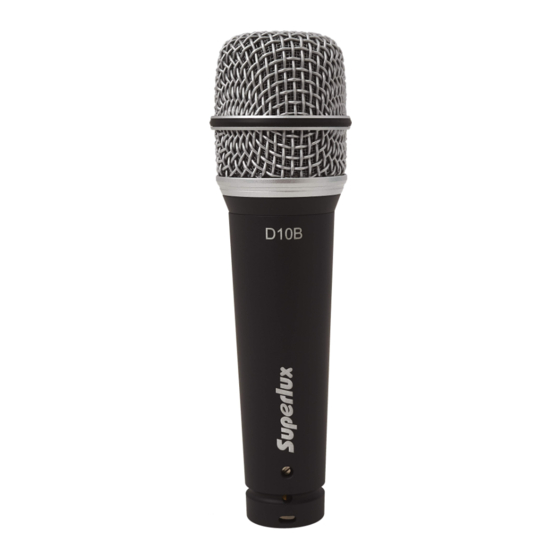

The D10B is a dynamic super-cardioid microphone designed for music
instrument live sound and recording applications. D10B exhibits wide and
flat frequency response that capture sound naturally. With its high SPL
ability, it works well with very loud sound sources. The directivity is super-
cardioid pattern, this polar pattern effectively rejects off-axis sound such as
stage monitors, and neighborhood sound sources to prevent crosstalk and
feedback.
A fine tuned shock mount within the D10B also greatly reduced mechanical
vibration and stage noises.
All metal construction with strengthen grill makes D10B very durable for
stage assignments, and occasional drops or drum stick hitting will not
damage the D10B.
Non-gloss black coating on the body with low reflection silver white grill to
assemble low profile appearance with natural beauty sound. The D10B is a
good candidate to various job. From drum sets to speech podium, from
stages to churches.
Features
! Balanced and clean original sound reproduction.
! Super cardioids, high gain before feedback.
! Anti-bucking coil to reject power line interference.
! Metal structure with scratch resist coating.
! Supplied with clip, shock mount, drum clamp and carrying pouch.
-3-
