Superlux D 107 Series User Manual

J U S T P L A Y I T

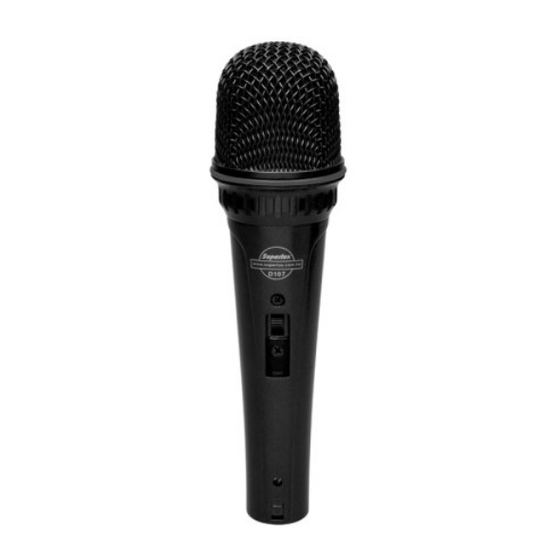

D 107 Series
Dynamic Vocal Microphone for Professionals
User Guide
G G O O A A N N G G - - F F A A N N N N C C O O . . , , L L T T D D . .
2009, SUPERLUX Inc.
LB10D10701TC (Rev. 1)

Specifications

Type
Dynamic microphone
Polar pattern
Uni-directional (Super-cardioid), rotationally symmetrical round
microphone axis, while maintaining uniform frequency response(Figure 1)
Frequency response
50 to 16,000 Hz (Figure 2)
Sensitivity
(at 1,000 Hz Open Circuit Voltage)
-54dBV/Pa (1.85mV/Pa)
3dB , 1Pa=94dB SPL
Rated impedance
250Ω
Polarity
Positive pressure on diaphragm produces positive voltage on pin 2 with
respect to pin 3
Max. SPL
(1 kΩ load)
160dB SPL (THD≦1% 1kHz)
Connector
Three-pin professional audio connector (male XLR type)
Finish
Metal structure, strengthened steel grille head and scratch-resistant titanium
coating for D1O7A, and textured black satin body for D107B
Environmental conditions
The D107 Series operates between -10 to +50 (14 to 122 )
with relative humidity between 0 to 95%.
Dimensions
Φ42.3mm x 152mm (1.67in. x 6.00in.), Figure 3
Net weight
188.0 grams (6.6 oz)
RoHS
The D107 Series including the product and packages follow the
instruction of EU 2002/95/EC and comply to RoHS.
－1
250 Hz 2000 Hz
500 Hz 4000 Hz
1000 Hz 8000 Hz

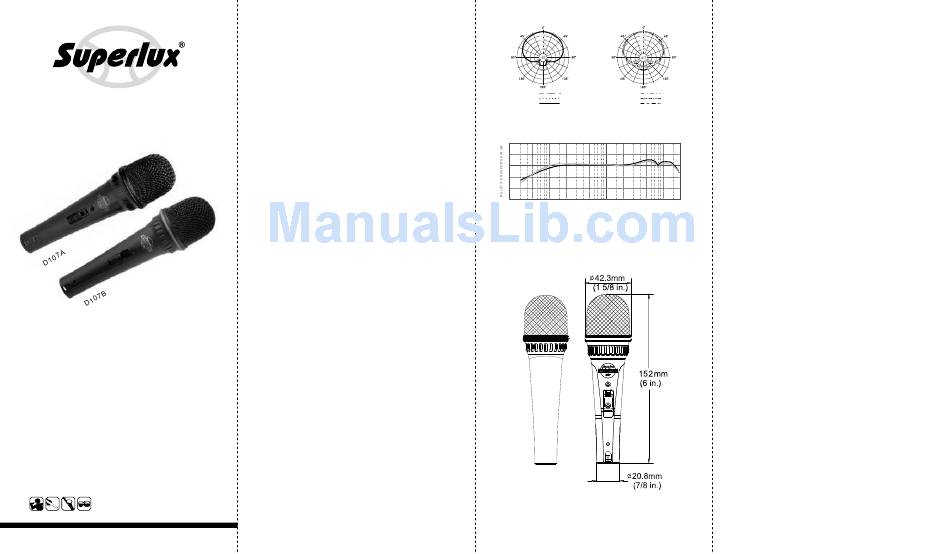

TYPICAL POLAR PATTERN (Figure 1)
F r e q u e n c y R e s p o n s e
dB
10
D107B
0
D107A
-10
-20
20 50 100 200 500 1000 2000 5000 10000 20000 Hz
F R E Q U E N C Y I N H z
TY PICAL FR EQUENCY RESPONSE (Fi gur e 2)
Dimensions (Figure 3)
－2
Description
Building on the success of Superlux D108 series vocal microphones,
Superlux now presents the D107 series dynamic microphone which is a
milestone in the world of professional vocal microphones, exhibiting
exceptionally uniform frequency response not only on-axis, but also off-
axis. And D107 series inherits the balanced tone and natural sound profiles
and structure of D108 series. With its more compact and ergonomically-
designed body and easy handling, the D107 series brings a new concept in
professional vocal use.
D107 series comes with two versions, one is D107A designed for recording
with tailored vocal response best tor close miking, and the other is D107B
best for live sound performance with a tailored bass punch response.
The modular design of the D107's capsule with its gold-plated connectors
permits easy separation of the grille and capsule from the body of the
microphone, facilitating maintenance.
The D107 has a super-cardioid pickup pattern which isolates the main
sound source while minimizing background noise.
Constructed of durable metal with a strengthened mesh grille, foam filter
and shock-mount system to cut down handling noise, the D107 is very
sturdy, withstanding even the occasional dropping while still producing a
sound quality that is unsurpassed. No matter whether indoor or outdoor,
singing or speech, the D107's performance will satisfy the most demanding
professionals.
Optimized pick up pattern
! D107A for Recording with tailored vocal response best tor close miking
! D107B for performance with tailored enhanced bass punch
New concepts for professional vocal mic
! For the most demanding professionals
! New compact size combines minimization and optimization
Features
! Balanced tone and truly natural sound reproduction
! Ideal for professional vocal use with its brightened midrange, bass roll
off and carefully crafted frequency response, providing excellent
presence
! Super-cardioid capsule gives exceptionally high gain before feedback
! High sound pressure level capability
! High quality ON/OFF switch with locking plate
! Modular design capsule with gold coated connectors
! All-metal construction with strengthened steel grille head and scratch-
resistant titanium coating for A version and textured black satin body for
B version
－3
