Superlux D108 Quick Manual

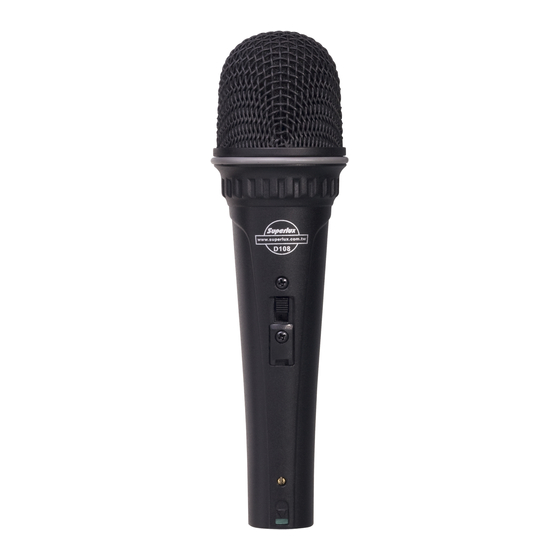

D108 Series
DYNAMIC VOCAL MICROPHONE

Description

Superlux now presents the D108 series dynamic micro-
phone which is a milestone in the world of profession-
al vocal microphones, exhibiting exceptionally uniform
frequency response not only on-axis, but also off-axis.
And D108 series features the balanced tone and natural
sound profiles and delivers clear and warm vocal repro-
duction.
D108 series comes with two versions, one is D108A de-
signed for recording with tailored vocal sound and best
for close miking, and the other is D108B best for live
sound performance with a tailored bass punch response.
The modular design of the D108's capsule with its
gold-plated connectors permits easy separation of the
grille and capsule from the body of the microphone, facil-
itating maintenance. The D108 has a super-cardioid pick-
up pattern which isolates the main sound source while
minimizing background noise.
Constructed of durable metal with a strengthened mesh
grille, foam filter and shock-mount system to cut down
handling noise, the D108 is very sturdy, withstanding
even the occasional dropping while still producing a
sound quality that is unsurpassed. No matter whether
indoor or outdoor, singing or speech, the D108's perfor-
mance will satisfy the most demanding professionals.

Features

• Tailored to deliver clear and warm vocal reproduction
• Frequency response is good for voice feature and the
mid-high frequency band is bright, the low frequency
band is solid powerful
• Exceptional uniform frequency response not only
on-axis, but also off-axis
• High SPL capacity
• ON/OFF switch with locking function
• Module capsule design, capsule or grille can be
turned counterclockwise for easy replacement
www.superlux.com.tw
D108A

Specifications

Type
Polar Pattern
Frequency Response
Sensitivity
Max. SPL
Finish
Connector
Dimensions
Net Weight
D108 Frequency Response ( Supercardioid )

Included

Pouch
D108B
Dynamic
Supercardioid
50 – 16,000 Hz
-54 dBV / Pa (2 mV)
150 dB SPL
D108A: Titanium grey
D108B: Black
XLR3M
Ø48 × 177 mm
(Ø1.89" × 6.97")
290 g (10.2 oz)
YA2 Threaded
HM38S
MIC Clip Adapter
EN
