- Page 1 ECM999 1/2" MEASUREMENT MICROPHONE Contact Marketing and sales Goang-Fann Co.,Ltd +886-2-26931323 sales@superlux.com.tw support@superlux.com.tw Manufacturing & logistics Superlux Enterprise Development ( Shanghai ) Co., Ltd. English...

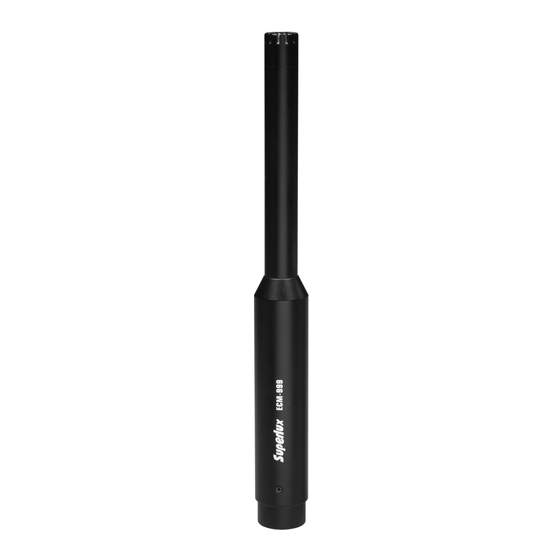

- Page 2 ECM999 MEASUREMENT MICROPHONE GENERAL DESCRIPTION The ECM999 is an omni-directional microphone for free- field measurement with built-in highly-reliable circuit, 1/4” pre-polarized condenser capsule, high stability, low distortion, and less noise in performance. Its excellent flat frequency response make it an ideal candidate for sonic analysis systems and for special recording as well.
-
Page 3: Specifications
Specifications *Note:Specifications are subject to change. Back electret, 6mm( 0.24”) Type Polar Pattern Omni Frequency Response 20-20,000Hz Sensitivity -37dBV/Pa (14mV) Output Impedance 200Ω Minimun Load Impedance 1,000Ω S/N Ratio 70dB Equivalent Output Noise 24dB Max. SPL 132dB SPL Dynamic Range 108dB Power Requirements 12-52V DC, 2mA... - Page 4 Ø12.7mm (0.50 in.) 192mm (7.56 in.) Ø21mm (0.83 in.) Ø19mm (0.75 in.) Unit: mm/inch...
- Page 5 KNOWING YOUR MICROPHONE TYPE OF TRANSDUCER CONDENSER With an extremely light weight diaphragm, it is very sensitive to sound. Very small versions are available for hidden applications. High performance condenser microphones are regarded as standard equipment in recording studios for extreme detail capturing. They operate with phantom or bayberry power.
-
Page 6: Limited Warranty
Superlux; claims based upon any misrepresentations by the seller; any Superlux product on which the serial number has been defaced, modified or removed. Service and repairs of Superlux products are to be performed only at a factory-authorized facility or authorized distributors or dealers. Unauthorized service, repairs, or modification will void this warranty.
