- Page 1 L401U LARGE DIAPHRAGM USB MICROPHONE Contact Marketing and sales Goang-Fann Co., Ltd. +886-2-26931323 sales@superlux.com.tw support@superlux.com.tw Manufacturing & logistics Superlux Enterprise Development ( Shanghai ) Co., Ltd. English...

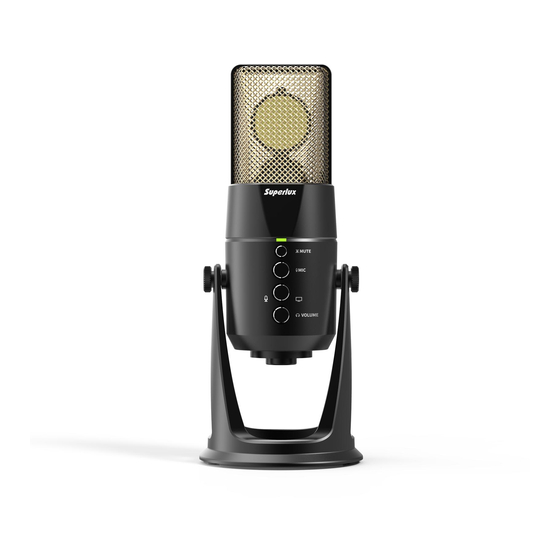

- Page 2 L401U LARGE DIAPHRAGM USB MICROPHONE DESCRIPTION The Superlux L401U USB microphone is equipped with a 1”, 3μm ultra-thin gold-plated diaphragm capsule to ensure studio-grade recording quality in any stage, even at home! The plug-and-play system can be compatible with both Windows and Mac OS system and support most of available DAW software.
- Page 3 • Ø 1”, 3μm ultra-thin gold-plated diaphragm capsule which can capture exquisite and warm sound. • The cardioid pickup pattern makes L401U very suitable for vocal recording, acoustic instruments and any other sources. • The built-in headphone amplifier ensures extremely clear and rich playback details even under high volume.
-
Page 4: Specifications
SPECIFICATIONS True condenser, Ø1" Type （Ø25.4 mm） Polar Pattern Cardioid Frequency Response 20-20,000Hz Sensitivity -34 dBV/Pa（20mV/Pa） 110 dB Max. SPL （THD <1%, at 1kHz） Power Requirement Powered by USB（5V DC） Bit Depth 24 bit Sampling rate 192 kHz Direct / mixing monitoring Volume Control volume control, headphone monitoring volume control... -
Page 5: Function Description
FUNCTION DESCRIPTION USB Connection indicator： When the LED lights up, it indicates that the USB cable has been connected correctly and gotten power from USB port. Microphone mute button： When pressing this button, it only stops the input signal from going into the computer. If choosing “direct monitoring”... -
Page 6: System Requirement
Microsoft Windows XP Home/PRO（Service Pack 3.0 version or above） Apple Computer Mac OS X 10.7 version or above INSTALLATION The furnished 3m USB cable can connect L401U USB microphone to the computer / equipment. The USB-B type connector of the cable can be attached on the USB microphone. -
Page 7: Quick Start
QUICK START Adjust the volume of microphone. Windows operating system Put the L401U on the desk surface. Turn the Proceed the recording in DAW recording side of L401U with Superlux trademark and software. Or enter into the Control Panel LED indicator to the source. Adjust the grille / Sound / Play Sound playback to find to face the sound source directly. -
Page 8: Windows Operating System
USB AUDIO EQUIPMENT DRIVER If you encounter a problem, please check whether driver has been setup successfully. If not, you can download at www.superlux.com.tw WINDOWS OPERATING SYSTEM Click “Sound” at the control panel. - Page 9 Find L401U equipment in the Audio tab.
- Page 10 MAC OS OPERATING SYSTEM Superlux L401U Open the sound setting window from the system setting.
- Page 11 Superlux L401U Choose L401U at the tabs of input and output.
-
Page 12: Troubleshooting
Check the volume of headphone and microphone volume headphone. control. The volume of Adjust the microphone gain knob on L401U first. If the volume microphone is still not enough, please refer to the adjustment as below : not enough. Windows operating system : Control Panel / Sound and Audio Devices / Audio tab / Record- ing, click “Volume”... -
Page 13: Knowing Your Microphone
KNOWING YOUR MICROPHONE Type of transducer Type of directivity Condenser Cardioid With an extremely light weight dia- It picks up most signal on axis, rejects phragm, it is very sensitive to sound. side noise, and picks up least to the Very small versions are available for back. -
Page 14: Limited Warranty
In the validity period, if there’s any material, producing quality, or any function unavailable, Superlux will repair or replace the parts. This warranty is only for the product which selling by distribu- tor or agent which authorized by Superlux. However, the situation below is excluded in the warranty :...
