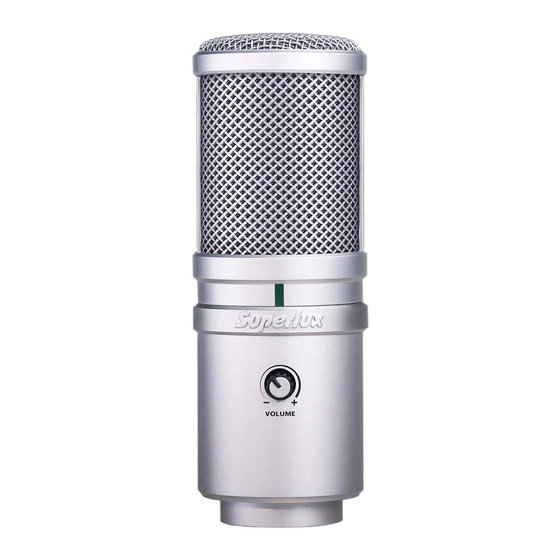

- Page 1 E205U USB CONDENSER MICROPHONE Contact Marketing and sales Goang-Fann Co., Ltd. +886-2-26931323 sales@superlux.com.tw support@superlux.com.tw Manufacturing & logistics Superlux Enterprise Development ( Shanghai ) Co., Ltd. English...
- Page 2 GarageBand. The E205U offers premium quality audio recording with ease and mobility, and with its pivoting stand mount and 9.8 ft. (3-meter) USB cable, the E205U is a valuable kit for any project studio. FEATURES • Smooth, flat frequency response.
-
Page 3: Specifications
E205U FREQUENCY RESPONSE (SUPERCARDIOID) SPECIFICATIONS *Note:Specifications are subject to change. Type Back Electret Condenser Polar Pattern Supercardioid Frequency Response 30-18,000 Hz Sensitivity -38 dBV/Pa (12.6 mV) (at 1k Hz Open Circuit Voltage) Max. SPL >135 dB SPL Power Requirements USB 5V, 30 mA... -
Page 4: Operating System
SYSTEM REQUIREMENTS 64MB RAM (minimum) USB 1.1 or 2.0, powered OPERATING SYSTEM Microsoft Windows 7 Microsoft Windows 10 Microsoft Windows 2000 Professional Edition Microsoft Windows XP Home / Professional Edition (service pack 1.0 or later, or use the USB audio driver update from Microsoft) Microsoft Windows Vista™... -
Page 5: Function Description
USB Power Indicator Headphone Output Jack When it is lit up, it means the USB connec- 1/8-inch (3.5mm) stereo jack for connect- tion is done and E205U get the power from ing headphones or studio monitors. USB interface. USB connector... -
Page 6: Installation
INSTALLATION ON A TABLE Through optional table stand HM6, You may put the E205U on a table and do recording. ON A STAND By using a micro- phone stand, the E205U can be mounted on it for CONNECTIONS USB CONNECTOR recording. -
Page 7: Quick Start
*Notice: If the microphone level of E205U are too loud or not enough, please check your DAW software or refer to Trou- bleshooting page in this manual to adjust the level in Windows and Mac computer system. -
Page 8: Windows Operating System
USB AUDIO EQUIPMENT DRIVER If you encounter a problem, please check whether driver has been setup successfully. WINDOWS OPERATING SYSTEM Hit “Control Panel” >> Hit “Hardware and Sound”... - Page 9 Sound >> Hit “Manage audio devices”...
- Page 10 Superlux E205U as the default microphone. *Notice: If there is already the green tick next to the E205U microphone symbol and the “Set Default” button is not able to be hit (dark gray color), the Superlux E205U has been selected as the default device successfully.
- Page 11 Hit “Properties” >> hit “Level” tab to adjust the microphone input gain.
- Page 12 Superlux E205U as the default microphone. *Notice: If there is already the green tick next to the E205U speaker symbol and the “Set Default” button is not able to be hit (dark gray color), the Superlux E205U has been selected as the default device successfully.
- Page 13 Hit “Properties” >> hit “Level” tab to adjust the headphone output volume. After that, please use the headphone volume knob on the E205U to do re- al-time adjustment.
- Page 14 MAC OS OPERATING SYSTEM Open the Sound Preference window from System Preferences. Select Superlux E205U from both the Input and Output tabs.
- Page 15 Superlux E205UMKII Garage Band users: open Garage Band before plugging in the microphone to automatically select the USB device.
- Page 16 MAC OS USING THE DIRECT MONITOR To turn direct monitoring on or off, open the Audio/MIDI Setup utility located in the Utility folder inside the Applications folder.
- Page 17 Now click the checkbox in the Thru column in Audio/MIDI Setup.
-
Page 18: Troubleshooting
TROUBLESHOOTING Problem Solution No sound in Check the headphone volume control and microphone gain at headphones computer control panel. Microphone Windows: sound is too week Audio tab, click Volume under Record and turn up Microphone or distorted Gain Control. Mac: From System Preferences, Choose Sound, Select Input tab and turn up Input gain. -
Page 19: Limited Warranty
Superlux will repair or replace the parts. This warranty is only for the product which selling by distributor or agent which authorized by Superlux. However, the situation below is excluded in the warranty :...
