Superlux DRKB5C2MKII User Manual

J U S T P L A Y I T

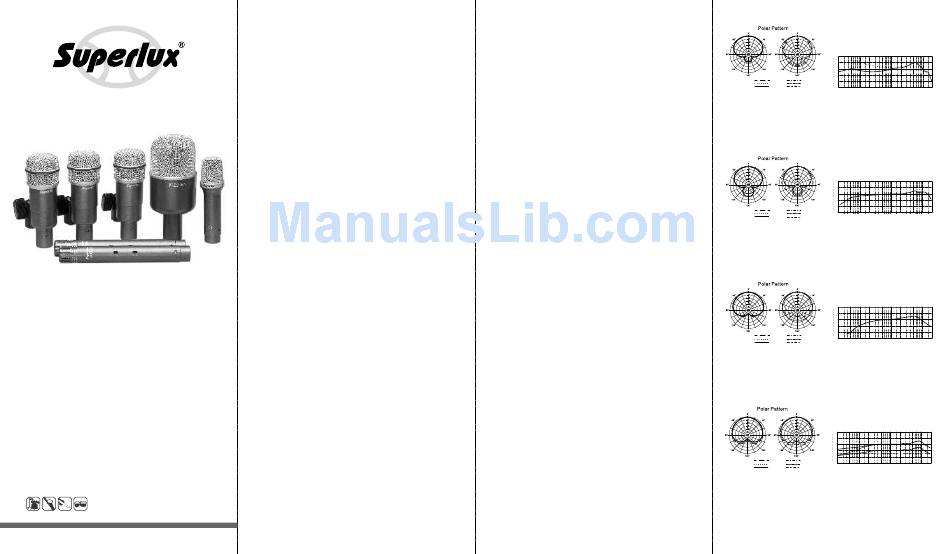

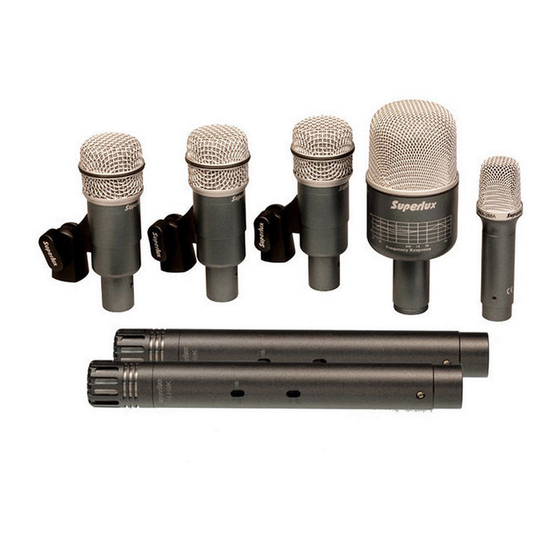

DRKB5C2MKII
Microphone Set for
Recording Studio

User Guide

G O A N G - F A N N C O . , L T D .
© 2007, SUPERLUX I
LB1B5C2MK01EN (Rev. 1)

Specifications

PRO218A PRO228A
Type Type
Dynamic microphone Dynamic microphone
Polar pattern Polar pattern
Unidirectional (Super Cardioid), Unidirectional (Super Cardioid),
rotationally symmetrical about rotationally symmetrical about
microphone axis, uniform with microphone axis, uniform with
frequency. (Figure 1) frequency. (Figure 3)
Frequency response Frequency response
20 to 10,000 Hz (Figure 2) 50 to 16,000 Hz (Figure 4)
Sensitivity Sensitivity
(at 1,000 Hz Open Circuit Voltage) (at 1,000 Hz Open Circuit Voltage)
-64dBV/Pa (0.63mV/Pa) -54dBV/Pa (2.0mV/Pa)
1Pa=94dB SPL 1Pa=94dB SPL
Rated impedance Rated impedance
45Ω 300Ω
Max. SPL (1 kΩ load) Max. SPL
170dB SPL (THD≦1% 1kHz) 150dB SPL (THD≦1% 1kHz)
Polarity Polarity
Pin 2 produce a positive voltage
Pin 2 output positive voltage
(related to pin 3) when diaphragm
(relative to pin 3 ) when diaphragm
receives positive pressure.
accept a frontal pressure
(Diaphragm moving inward)
Connector
Connector
Integral 3 pin male XLR type
Integral 3 pin male XLR type
Finish
Finish
Titanium blue
Titanium blue
Dimension
Dimension
Φ58.0x140.0mm
Φ43.0(L)x123.0(W)x80.0(H)mm
(2.28x5.51 in.)
〔1.70(L)x4.85(W)x3.15(H) in.〕
Net weight
Net weight
350.0 grams (12.5 oz.)
180.0 grams(6.3 oz.)
－1－
nc.
Specifications
PRA288A
Type
Dynamic microphone
Polar pattern
Unidirectional (Cardioid),
rotationally symmetrical about
microphone axis, uniform with
frequency. (Figure 5)
Frequency response
80 to 20,000 Hz (Figure 6)
Sensitivity
(at 1,000 Hz Open Circuit Voltage)
-56dBV/Pa (1.6mV/Pa)
1Pa=94dB SPL
Rated impedance
500Ω
(1 kΩ load) Max. SPL (1 kΩ load)
140dB SPL (THD≦1% 1kHz)
Polarity
Pin 2 produce a positive voltage
(relative to pin 3 ) when diaphragm
accept a frontal pressure
Connector
Integral 3 pin male XLR type
Finish
Titanium blue
Dimension
Φ29.0x107.0mm
(1.14x4.21 in.)
Net weight
110.0 grams (3.9 oz.)
PRO268B
Type
Back electret condenser microphone
25 0 Hz
50 0 Hz
10 00 Hz
Polar pattern
Unidirectional (Cardioid),
TYPIC AL POLAR PATTERN (Fig ure 1)
rotationally symmetrical about
microphone axis, uniform with
frequency. (Figure 7)
Frequency response
40 to 20,000 Hz (Figure 8)
Sensitivity
(at 1,000 Hz Open Circuit Voltage)
-43dBV/Pa (7.0mV/Pa)
25 0 Hz
1Pa=94dB SPL 50 0 Hz
10 00 Hz
Rated impedance
TYPIC AL POLAR PATTERN (Fig ure 3)
200Ω
Max. SPL
(1 kΩ load)
140dB SPL (THD≦1% 1kHz)
Dynamic range
at 1 k Ω Load
115dB
Power supply
9 to 52 Vdc phantom power
25 0 Hz
50 0 Hz
Current consumption
10 00 Hz
2mA
TYPIC AL POLAR PATTERN (Fig ure 5)
Polarity
Pin 2 produce a positive voltage
(relative to pin 3 ) when diaphragm
accept a frontal pressure
Connector
Integral 3 pin male XLR type
Finish
25 0 Hz
Titanium blue
50 0 Hz
10 00 Hz
Dimension
PRO268B
TYPIC AL POLAR PATTERN (Fig ure 7)
Φ29.0x240.0mm (1.15x9.45
in. )
Net weight
270.0 grams (9.5 oz.)
－2－
F r e q u e n c y R e s p o n s e
dB
2 5 m m
10
0
0 . 6 M
-10
20 00 Hz
-20
40 00 Hz
80 00 Hz
20 50 100 200 500 1000 2000 5000 10000 20000 Hz
F R E Q U E N C Y I N H z
PRO218A PRO218A
TYPIC AL FREQUENCY RESPONSE (Fig ure 2)
F r e q u e n c y R e s p o n s e
dB
10
0
-10
-20
20 00 Hz
40 00 Hz
20 50 100 200 500 1000 2000 5000 10000 20000 Hz
F R E Q U E N C Y I N H z
80 00 Hz
PRO228A PRO228A
TYPIC AL FREQUENCY RESPONSE (Fig ure 4)
F r e q u e n c y R e s p o n s e
dB
10
0
-10
-20
20 00 Hz
40 00 Hz 20 50 100 200 500 1000 2000 5000 10000 20000 Hz
80 00 Hz F R E Q U E N C Y I N H z
PRA288A PRA288A
TYPIC AL FREQUENCY RESPONSE (Fig ure 6)
F r e q u e n c y R e s p o n s e
dB
10
0
Low Cut
-10
-10dB Cut
-20
20 00 Hz
40 00 Hz 20 50 100 200 500 1000 2000 5000 10000 20000 Hz
80 00 Hz F R E Q U E N C Y I N H z
PRO268B
TYPIC AL FREQUENCY RESPONSE (Fig ure 8)
－3－
