Superlux WH5 User Manual

J U S T P L A Y I T
W H 5

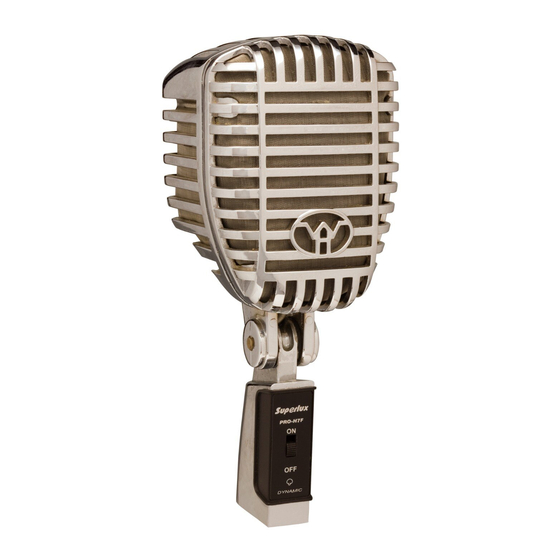

Classical Vocal Microphone
User Guide
G O A N G - F A N N C O . , L T D .
2007, SUPERLUX I nc.
LB1000WH501EN (Rev. 1)

Specifications

Type Polarity
Dynamic microphone
Pin 2 output positive voltage
(related to pin 3) when diaphragm
receives positive pressure.
Polar pattern
(Diaphragm moving inward)
Unidirectional (Super Cardioid),
rotationally symmetrical about
microphone axis, uniform with Connector
Integral 3 pin male XLR type
frequency. (Figure 1, 2, 3)
Finish
Frequency response
Metal construction with chrome
Drum: 30 to 10,000 Hz (Figure 4)
gloss finish.
Instrument: 20 to 12,500 Hz
(Figure 5)
Vocal: 50 to 16,000 Hz (Figure 6)
Environmental conditions
The WH5 operates between -10
℃ ℉
Sensitivity
to +50 (14 to 122 ) with
(at 1,000 Hz Open Circuit Voltage)
relative humidity between 0 to
Drum: -62dBV/Pa (0.8mV/Pa)
95%.
Instrument: -55dBV/Pa
(1.8mV/Pa)
Dimensions
Vocal: -54dBV/Pa (2.0mV/Pa)
Φ80.0mmx76.5mmx200mm
1Pa=94dB SPL
(3.15in.x3.00in.x7.87in.)
Rated impedance
200Ω
Net weight
750g (26.45oz.)
Ω
Max. SPL
(1, 000 load)
Drum: 147 dB SPL
Instrument: 134 dB SPL
Vocal: 134 dB SPL
≦
THD 1% 1kHz
250 Hz
500 Hz
1000 Hz
TYPICAL DRUM POLAR PATTERN (Figure 1)
250 Hz
500 Hz
℃ 1000 Hz
℉
TYPICAL INSTRUMENT POLAR PATTERN (Figure 2)
250 Hz
500 Hz
1000 Hz
TYPICAL VOCAL POLAR PATTERN (Figure 3)
Frequency Response
dB
10
0
-10
-20
2000 Hz
20 50 100
4000 Hz
8000 Hz
TYPICAL DRUM FREQUENCY RESPONSE (Figure 4)
Frequency Response
dB
10
0
-10
-20
20 50 100
2000 Hz
4000 Hz
8000 Hz
TYPICAL INSTRUMENT FREQUENCY RESPONSE (Figure 5)
Frequency Response
dB
10
0
-10
-20
20 50 100
2000 Hz
4000 Hz
8000 Hz
TYPICAL VOCAL FREQUENCY RESPONSE (Figure 6)
200 500 1000 2000 5000 10000 20000 Hz
FREQUENCY IN Hz
200 500 1000 2000 5000 10000 20000 Hz
FREQUENCY IN Hz
200 500 1000 2000 5000 10000 20000 Hz
FREQUENCY IN Hz
