Summary of Contents for Multitech MultiConnect rCell100 Cat M1/NB-IoT Series

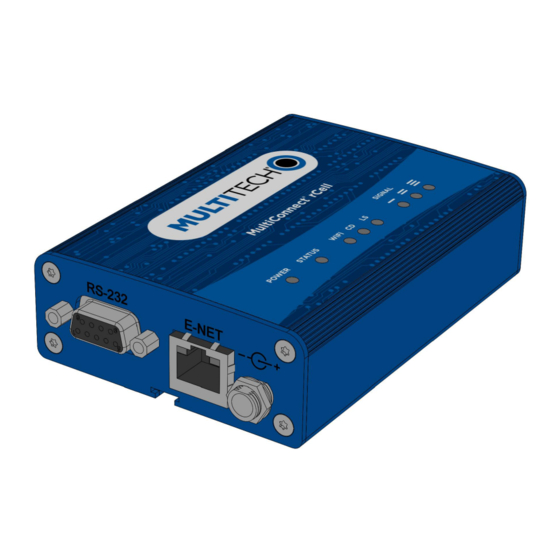

- Page 1 ® MultiConnect rCell 100 Cat M1/NB-IoT MTR-MNG2 Hardware Guide...
- Page 2 Legal Notices The MultiTech products are not designed, manufactured or intended for use, and should not be used, or sold or re-sold for use, in connection with applications requiring fail-safe performance or in applications where the failure of the products would reasonably be expected to result in personal injury or death, significant property damage, or serious physical or environmental damage.
-
Page 3: Table Of Contents
CONTENTS Contents Chapter 1 – Product Overview ..........................5 About MultiConnect rCell 100 Series Router........................ 5 Documentation ................................5 Dimensions..................................6 Descriptions of LEDs..............................7 Ethernet LED Descriptions ............................7 Side Panel Connectors ..............................9 Product Build Options ..............................10 MNG2 Specifications .............................. - Page 4 CONTENTS Restriction of the Use of Hazardous Substances (RoHS) .................... 22 REACH Statement ............................... 23 Registration of Substances............................23 Waste Electrical and Electronic Equipment Statement ....................23 WEEE Directive................................23 Instructions for Disposal of WEEE by Users in the European Union ................ 23 Information on HS/TS Substances According to Chinese Standards .................
-
Page 5: Chapter 1 - Product Overview
The device has an integrated cellular modem and includes 10/100 BaseT Ethernet and RS-232 serial connectivity. Documentation The following documentation is available at http://www.multitech.com/brands/multiconnect-rcell-100-series. Document Description... -
Page 6: Dimensions
PRODUCT OVERVIEW Dimensions ® MultiConnect rCell 100 Cat M1/NB-IoT MTR-MNG2 Hardware Guide... -
Page 7: Descriptions Of Leds
PRODUCT OVERVIEW Descriptions of LEDs The top panel contains the following LEDs: Power and Status LEDs—The Power LED indicates that DC power is present and the Status LED blinks when the unit is functioning normally. Wi-Fi—Indicates if the device is serving as a Wi-Fi access point or acting as a Wi-Fi client. Not all models support Wi-Fi. - Page 8 PRODUCT OVERVIEW Ethernet Link Right LED on Ethernet connector. Blinks when there is transmit and receive activity on the Ethernet link. It shows a steady light when there is a valid Ethernet connection. Ethernet Speed Left LED on Ethernet connector. Lit when the Ethernet is linked at 100 Mbps. If it is not lit, the Ethernet is linked at 10 Mbps.
-
Page 9: Side Panel Connectors
PRODUCT OVERVIEW Side Panel Connectors The device has connectors on both sides of the housing. The right side of the device contains a SIM card holder, a reset button, a Wi-Fi/Bluetooth, GPS, and cellular antenna connector. Depending on the model of your device, the GPS and/or Wi-Fi connectors may or may not be present. -
Page 10: Product Build Options
PRODUCT OVERVIEW Product Build Options Product Description Carrier/Region MTR-MNG2-B07 LTE Cat M1/NB-IoT cellular router with Global fallback, without accessory kit MTR-MNG2-B07-WW LTE Cat M1/NB-IoT cellular router with Global fallback, with accessory kit MTR-MNG2-B10 LTE Cat M1/NB-IoT cellular router with Wi-Fi, Global Bluetooth and GPS, with fallback, without accessory kit... -
Page 11: Transmission Output Power
PRODUCT OVERVIEW Category Description Ethernet (LAN) RJ-45, 10/100 Base T RS-232 DCE 9-pin, female connector Power 25 mm miniature locking power jack (screw on) Power Requirements Voltage 7 to 32 VDC Physical Description Dimensions 4.17” x 3.0” x 1.15” (10.6cm x 7.6cm x 2.9cm) Weight 0.51 lbs (0.231 Kg) Chassis type... - Page 12 PRODUCT OVERVIEW Band Power Class GPRS (GMSK) - GSM850, GSM900 4 (33dBm ±2dB) EDGE (8PSK)- GSM850, GSM900 E2 (27dBm ±2dB) ® MultiConnect rCell 100 Cat M1/NB-IoT MTR-MNG2 Hardware Guide...
-
Page 13: Power Draw
PRODUCT OVERVIEW Power Draw MTR-MNG2-B10 Power Draw Radio Protocol Cellular Call Box Average Measured TX Pulse (Avg) Total Inrush Charge Connection No Current (mA) at Amplitude Current Measured in Data (mA) Maximum Power (mA) for GSM850 or Millicoulombs (mC) Peak Current for HSDPA/LTE 9.0 Volts GSM 850 Mhz... -
Page 14: Chapter 2 - Safety Warnings
This battery has an estimated life expectancy of ten years. When this battery starts to weaken, the date and time may be incorrect. Battery is not user replaceable. If the battery fails, the device must be sent back to MultiTech Systems for battery replacement. -
Page 15: Vehicle Safety
Do not place the device alongside computer discs, credit or travel cards, or other magnetic media. The information contained on discs or cards may be affected by the device. Using accessories, such as antennas, that MultiTech has not authorized or that are not compliant with MultiTech's accessory specifications may invalidate the warranty. -
Page 16: Precautions For Pacemaker Wearers
SAFETY WARNINGS Advancement of Medical Instrumentation (AAMI) standard. This standard allows manufacturers to ensure that cardiac pacemakers and defibrillators are safe from cellular device EMI. The FDA continues to monitor cellular devices for interactions with other medical devices. If harmful interference occurs, the FDA will assess the interference and work to resolve the problem. -
Page 17: Chapter 3 - Antenna Information
Chapter 3 – Antenna Information Antenna Devices were approved with the following antenna or for alternate antennas meeting the given specifications: Manufacturer: Wieson Description: LTE Antenna with SMA-Male Connector Model Number GY115IE002-001 MultiTech ordering information: Model Quantity ANLTE4-1HRA ANLTE4-2HRA ANLTE4-10HRA ANLTE4-50HRA Antenna Specifications Category... -
Page 18: Chapter 4 - Installing The Device
INSTALLING THE DEVICE Chapter 4 – Installing the Device Installing the SIM Card If you want to operate the device on a particular network, install a SIM card (Subscriber Identity Module). To install the SIM: Locate the SIM card slot on the side of the device. The slot is labeled SIM. Push the SIM card into the slot until it snaps into place. -
Page 19: Mounting The Device
INSTALLING THE DEVICE Plug the power supply into your power source. The POWER LED lights after the device powers up. When the Status LED begins to blink, the device is ready for use. You can configure your device by using your device’s web management interface. You might need to change the IP address of your computer to be in the same IP and subnet mask range as the device. -
Page 20: Restoring User Defined Settings To The Device
INSTALLING THE DEVICE Note: The device reboots when restoring settings. Restoring User Defined Settings to the Device You can restore user defined settings to your device. You need: A pin, paperclip, or similar thin object that can fit into the reset hole Locate the hole in the panel labeled RESET. -
Page 21: Chapter 5 - Regulatory Information
REGULATORY INFORMATION Chapter 5 – Regulatory Information 47 CFR Part 15 Regulation Class B Devices This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 22: Emc, Safety, And Radio Equipment Directive (Red) Compliance
Council Directive 2014/53/EU on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity. MultiTech declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity may be requested at https://support.multitech.com. -
Page 23: Reach Statement
Substances) complements the WEEE Directive by banning the presence of specific hazardous substances in the products at the design phase. The WEEE Directive covers all MultiTech products imported into the EU as of August 13, 2005. EU-based manufacturers, distributors, retailers and importers are obliged to finance the costs of recovery from municipal collection points, reuse, and recycling of specified percentages per the WEEE requirements. -
Page 24: Information On Hs/Ts Substances According To Chinese Standards
REGULATORY INFORMATION Information on HS/TS Substances According to Chinese Standards In accordance with China's Administrative Measures on the Control of Pollution Caused by Electronic Information Products (EIP) # 39, also known as China RoHS, the following information is provided regarding the names and concentration levels of Toxic Substances (TS) or Hazardous Substances (HS) which may be contained in Multi-Tech Systems Inc. -
Page 25: Information On Hs/Ts Substances According To Chinese Standards (In Chinese)
REGULATORY INFORMATION Information on HS/TS Substances According to Chinese Standards (in Chinese) 依 依 照 照 中 中 国 国 标 标 准 准 的 的 有 有 毒 毒 有 有 害 害 物 物 质 质 信 信 息 息 根据中华人民共和国信息产业部...
