Digisol DG-HR1070MSE Quick Installation Manual

DG-HR1070MSE Quick Installation Guide
Quick Installation Guide
DG-HR1070MSE
DIGISOL 4G MI-FI PORTABLE BROADBAND ROUTER
As our products undergo continuous development the specifications are subject to change without prior notice
Copyright
Copyright 2017 by Digisol Systems Ltd. All rights reserved. No part of this
publication may be reproduced, transmitted, transcribed, stored in a
retrieval system, or translated into any language or computer language,
in any form or by any means, electronic, mechanical, magnetic, optical,
chemical, manual or otherwise, without the prior written permission of this
company.
Trademarks
TM
DIGISOL is a trademark of Digisol Systems Ltd. All other trademarks
are the property of the respective manufacturers.
Introduction
The DIGISOL™ DG-HR1070MSE HSPA+ Mobile Router lets you share a
fast mobile Internet connection with multiple PCs and mobile devices
wherever you go. It offers 4G/3G LTE/ HSPA+ compatibility for fast
downlink and uplink data rates, so you get the high-speed upload and
download speeds even when you're on the go. Set up a personal mobile
network anywhere, anytime allowing you and those around you to access
the Internet, and share files.
Package Contents
The following items should be present in your package:
•
DG-HR1070MSE 4G Mi-Fi Broadband Router
•
Lithium 2000mAh rechargeable battery
•
Power Adapter (5V, 1A)
•
Micro USB Cable
•
Quick Installation Guide
Make sure that the package contains above items. If any of the listed
items is damaged or missing, please contact your retailer immediately.
System Requirements
•
A compatible (U) SIM card with mobile data service.
•
A computer with Windows®, Macintosh®, or Linux-based
operating systems.
•
Internet Explorer 8, Firefox 12.0, Chrome 20.0, or Safari
4.0.
V2.0

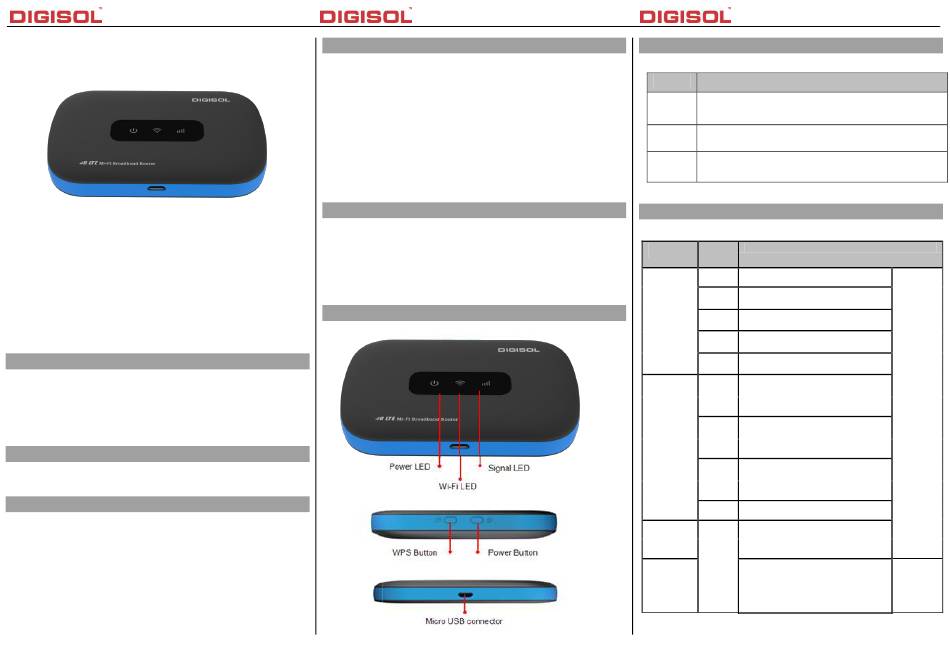

Hardware Overview
2017-01-16
DG-HR1070MSE Quick Installation Guide
External Buttons
key
Power
key
WPS
Reset
LED chart
Indicator
Power
LED
Signal
LED
WiFi LED
DG-HR1070MSE Quick Installation Guide
Illustrate
Long press over 5 seconds to power on and long press to
power off
Press to active the WPS
The Reset button (Inside the bottom cover) if you forget
Administrator password press reset key.
Color Working Status
Amber Charging
Blue Battery High (100%-60%) or
Charge Completed
Green Battery Middle (60%-10%)
Red Blink: Battery too low nearly
shutdown (10%)
Purple Blink: New SMS
Blue Solid: Register to LTE(not
connecedt)
Blink: Connected to LTE network
Green Solid: Register to 3G(not
connected)
Blink: Connected to 3G network
Purple Solid: Register to 2G(not
connected)
Blink: Connected to 2G network
Red Blink: No Service/Device Error
Blue Solid: No Client
Blink: Client is active
Blink: WPS is active
Blink:
Turn on-
0.5s
Turn off-
0.5s
Blink:
Turn on-
0.2s
Turn off-
0.1s
