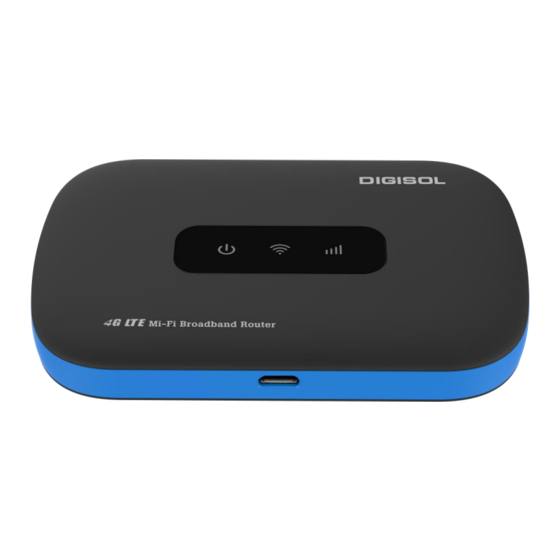

Digisol 4g mi-fi portable broadband router
Hide thumbs Also See for DG-HR1070MSE:
Table of Contents

Advertisement

Quick Links

Download this manual

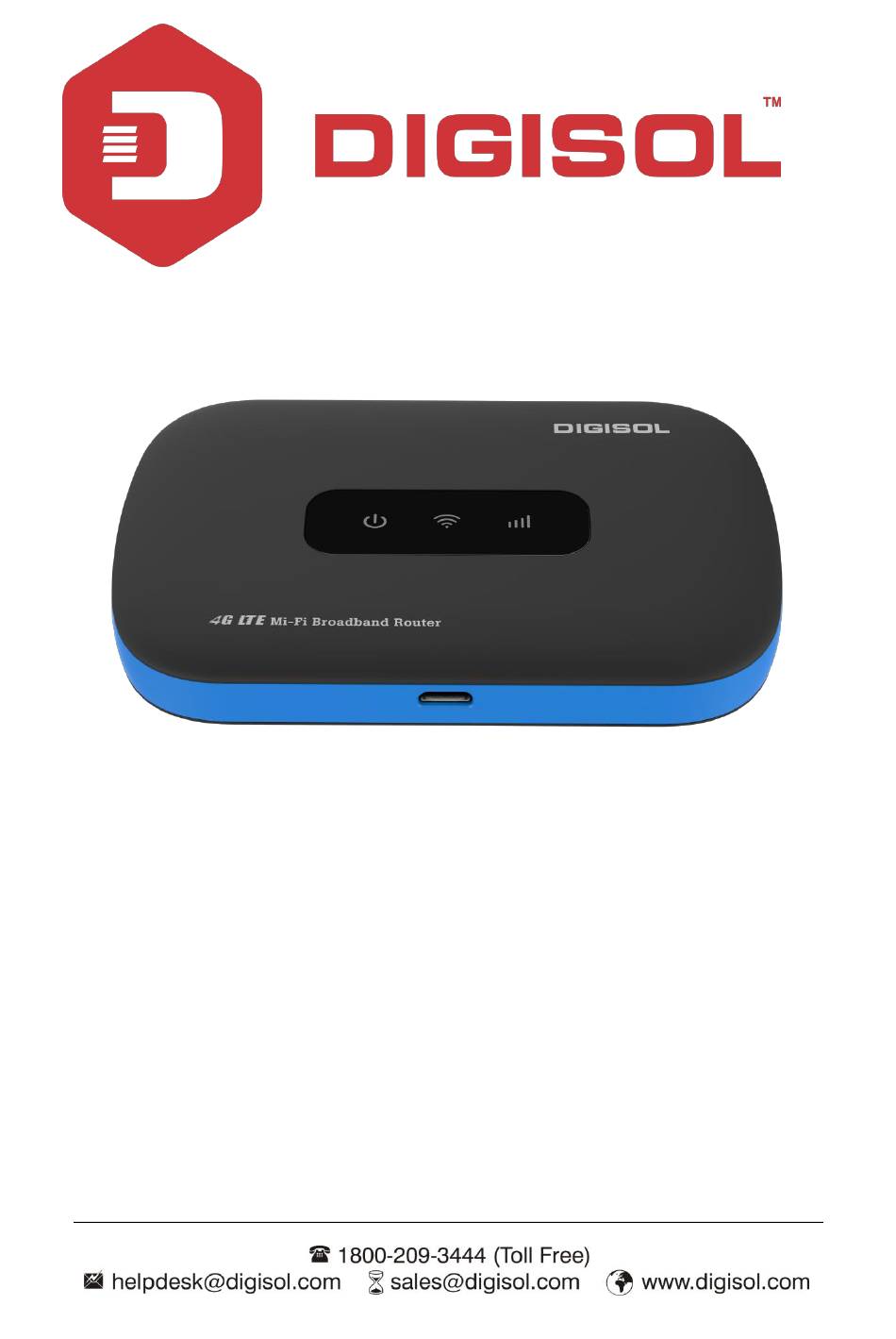

DG-HR1070MSE
DIGISOL 4G Mi-Fi Portable Broadband Router
User Manual
V2.0
2017-01-18
As our products undergo continuous development the specifications are subject to change without prior notice
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DG-HR1070MSE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Digisol DG-HR1070MSE

Summary of Contents for Digisol DG-HR1070MSE

  • Page 1 DG-HR1070MSE DIGISOL 4G Mi-Fi Portable Broadband Router User Manual V2.0 2017-01-18 As our products undergo continuous development the specifications are subject to change without prior notice...
  • Page 2 DG-HR1070MSE User Manual COPYRIGHT Copyright 2017 by Digisol Systems Ltd. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of this company.

  • Page 3: Table Of Contents

    DG-HR1070MSE User Manual Index 1. Product Introduction ........................4 1-1 Introduction ........................4 1-2 Safety Instructions ......................4 1-3 Package Contents ......................5 1-4 System Requirements ..................... 5 2. Get Familiar with your new wireless 4G Mi Fi broadband router ........6 2-1 Hardware Overview ......................

  • Page 4: Product Introduction

    The built-in 4G antenna provides a reliable connection to your 4G service provider. 1-2 Safety Instructions Like any electronic device, the DG-HR1070MSE must be handled with care to ensure reliable operation. DIGISOL Mi-Fi Wireless Router recommends the following guidelines: •...

  • Page 5: Package Contents

    DG-HR1070MSE User Manual 1-3 Package Contents The Mi-Fi Router DG-HR1070MSE package includes: • DG-HR1070MSE Mi-Fi Router • Lithium2000mAh rechargeable battery • Power Adapter (5V, 1A) • Micro USB Cable • Quick Installation Guide 1-4 System Requirements • A compatible (U) SIM card with mobile data service.

  • Page 6: Get Familiar With Your New Wireless 4G Mi Fi Broadband Router

    DG-HR1070MSE User Manual 2. Get Familiar with your new wireless 4G Mi Fi broadband router 2-1 Hardware Overview + WPS Button—Press this button to add new wireless devices quickly and easily using Wi-Fi Protected Setup (WPS). Press and hold for more than 5 seconds to turn the wireless function ON/OFF.

  • Page 7: Led Status

    DG-HR1070MSE User Manual 1. If you forget the changes done, you can restore factory default settings and reconfigure the settings. 2. If you forget Administrator password or Wireless network key, you can press the Reset key to restore factory default settings. Press and hold for 10 seconds...

  • Page 8: Power Management

    Wall charger— You can use the device when the charger is plugged into a wall socket. The battery charges while it is plugged in. Before using DG-HR1070MSE, read the battery safety information in the further section of this guide. 3. Using the Device 3-1 Connect to Your Network 1.
  • Page 9 On this slot you can insert compatible micro SD card up to 64GB. Wireless Installation Considerations The DG-HR1070MSE can be accessed using a wireless connection from anywhere within the operating range of its wireless network. Keep in mind that the quantity, thickness and location of walls, ceilings, or other objects that the wireless signals must pass through may adversely affect wireless signals.

  • Page 10: Configuring The Router Settings

    USB cable, or by connecting wirelessly to the DG-HR1070MSE. Once you have configured your router, you will be able to connect using the Wi-Fi settings that you have specified in the configuration process. Ensure that the router is powered ON and has sufficient battery power before commencing the setup process.
  • Page 11 To connect to the router using Wi-Fi, open your operating system‟s wireless networking utility and scan for available networks. By default, the network name (SSID) of the DG-HR1070MSE is “DIGISOL” You will then be prompted to enter the network security key for your router. The unique security key for your router will be displayed on a sticker in the router‟s...

  • Page 12: Getting Started

    DG-HR1070MSE User Manual 3-3 Getting Started Web-based Configuration To access the configuration, open a web browser (such as Internet Explorer) and enter the IP address of the router, which is 192.168.2.1 by default. Router Configuration Once you have reached the configuration utility through your web browser, you will need to log in.
  • Page 13 DG-HR1070MSE User Manual Throughout the interface you will find a menu bar at the top of the page which includes tabs for easy navigation, and a summary bar in the upper right corner with a quick view of essential information.
  • Page 14 DG-HR1070MSE User Manual Security: The Security allows you to configure firewall and security settings to protect your network from WAN-side intrusions. System: From this tab, you can manage the administrative configuration of your router, such as time and date, firmware upgrade, language and system logs.
  • Page 15 DG-HR1070MSE User Manual 3-4 Wizard The Wizard page will guide you through the steps required to configure the basic settings of your router such as the IP address, network name (SSID) and password. Click on the Wizard button on the navigation bar to commence the wizard.
  • Page 16 DG-HR1070MSE User Manual After the settings are done click on “Next”. Step 2: 2G/3G/4G Configuration: If you wish to change the 2G/3G or 4G service provider or connection type, click on a profile in the list to highlight it, and click “Set” to set that profile as the default.

  • Page 17: Wan

    DG-HR1070MSE User Manual wizard has been completed. Click “Done” to complete the wizard, or click Back to return to the previous page. After you have clicked Done, a confirmation window will appear. Click “OK” to save the configuration. 3-5 WAN This page allows you to configure the Internet settings for your mobile network connection.
  • Page 18 DG-HR1070MSE User Manual Roaming Mode Select whether you would like to Enable or Disable mobile network roaming from the drop-down menu. Caution: Roaming on networks other than your own may incur additional usage charges. 2) APN Setting Here is the description of every setup item:...
  • Page 19 DG-HR1070MSE User Manual Settings: Select your preferred modem type from the drop-down menu: Here is the description of every setup item: Parameter Description Network Type Auto - The modem will automatically select the modem type depending on the network it is connected to.

  • Page 20: Lan

    DG-HR1070MSE User Manual Mode: Select Automatic to allow the router to automatically connect to the first available network when roaming. Select Manual to choose your preferred roaming network from the list below. If you have selected Manual mode, click on the preferred network to select it, and then click the Update button to select that network as the preferred network.

  • Page 21: Sms

    DHCP server. Click “Refresh” to update the table. 3-7 SMS DG-HR1070MSE can send or receive SMS text messages through the mobile network‟s SMS function. In this section you can check the SIM card‟s inbox and outbox, as well as send new messages.
  • Page 22 DG-HR1070MSE User Manual Inbox: This tab shows a summary of SMS messages in the inbox. Outbox: This tab shows a summary of messages in the outbox which are yet to be sent. Setting SMS On this page user can set the SMSC address, SMS storage location, SMS receipt...

  • Page 23: Wi Fi

    DG-HR1070MSE User Manual 3-8 Wi Fi The Wi-Fi pages allow you to check the current status of your Wi-Fi network and make changes to Wi-Fi settings. 1) Basic This section allows you to configure your Wi-Fi network and specify the wireless security method to be used to secure your network.
  • Page 24 DG-HR1070MSE User Manual from the drop-down menu. If you do not wish to enable wireless security, select None from the drop-down menu. Click Apply to save the current settings. WPA Mode You can select WPA encryption type here. Cipher type AES is safer than TKIP, but not every wireless client supports it.
  • Page 25 DG-HR1070MSE User Manual Here is the description of every setup item: Parameter Description Encryption Select WEP from the drop-down menu. Type Authentication Select the desired authentication method from the drop down menu: Method Auto - The router will automatically determine the authentication method based on the client that is connecting to it.
  • Page 26 DG-HR1070MSE User Manual original WPA, and the newer WPA2. Here is the description of every setup item: Parameter Description Encryption Type Select WPA Personal from the drop-down menu. WPA Mode: Select the desired authentication method from the drop-down menu: Auto (WPA or WPA2) - The router will automatically determine the version of WPA to be used based on the client that is connecting to it.
  • Page 27 DG-HR1070MSE User Manual Here is the description of every setup item: Parameter Description Enable Check the box to enable the Wi-Fi Protected Setup feature. Configure State Shows the current status of the WPS function. Configure Select the WPS method that you wish to use. If your device...

  • Page 28: Security

    DG-HR1070MSE User Manual 3-9 Security The Security tab allows you to configure your router‟s firewall settings and enable features to protect your network from outside intrusions and malicious attacks. 1) IPV4 Firewall Entries Configure The IP filter enables you to allow or deny access to your destination address based.
  • Page 29 DG-HR1070MSE User Manual 2) NAT This section allows you to configure functions related to Network Address Translation (NAT) such as port forwarding, port triggering and the Demilitarized Zone (DMZ) 3) DMZ If a machine on your network is having trouble running an application from behind the router‟s firewall, you can choose to enable the DMZ, which will expose the...

  • Page 30: System

    DG-HR1070MSE User Manual 3-10 System This tab allows you to configure the router‟s administrative functions, such as time & date, firmware upgrade, etc. 1) About This tab shows the router‟s basic information. 2) Configuration Here you can click on “Reset” to reset the unit to default settings.
  • Page 31 DG-HR1070MSE User Manual Click “Choose file” to locate a previously downloaded firmware file on your computer. Once the file has been located, click Upgrade to carry out the firmware upgrade process. Warning: All current settings will be restored to their factory defaults following a firmware upgrade.
  • Page 32 DG-HR1070MSE User Manual Here is the description of every setup item: Parameter Description Displays the current time and date according to the router‟s Current System Time system clock. Time Zone Select the time zone.to synchronize the device time with time zone.
  • Page 33 DG-HR1070MSE User Manual 7) Power Saving In this feature the System will switch to sleep mode if idle for a specified time. 8Reboot...
  • Page 34 DG-HR1070MSE User Manual Proper Battery Use and Disposal IMPORTANT N EVENT OF A BATTERY LEAK • Do not allow the liquid to come in contact with your skin or eyes. If contact has been made, wash the affected area with large amounts of water and seek medical advice.
