- Page 1 XPON ONU Router with 1 PON and 1 Giga Port DG-GR6010 V2.0 05-01-2021...
- Page 2 Please check with your local distributors for the latest information. No part of this document can be copied or reproduced in any form without written consent from the company. Trademarks: ® DIGISOL is a trademark of DIGISOL SYSTEMS LTD. All other trademarks are the property of the respective manufacturers.

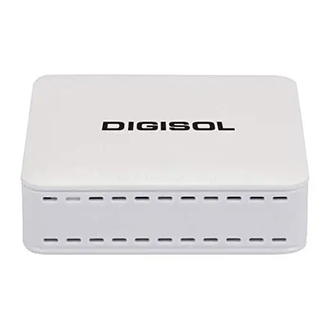

- Page 3 Overview 1:1 Product Description DG-GR6010 ONU meets telecom operators FTTO (Office), FTTD (Desk), FTTH (Home) broadband speed, SOHO broadband access, video surveillance and other requirements and design an EPON Gigabit Ethernet products. It is based on mature and stable, cost-effective EPON technology,...
- Page 4 1:3 Technical Parameters Technical Item DG-GR6010 PON interface 1 GPON / EPON connector, SC single-mode / single-fiber, Wavelength Tx:1310nm, Rx:1490nm Optical interface SC/PC connector LAN interface 1*10/100/1000Mbps auto adaptive Ethernet interfaces RJ-45 connector 3 For Status of PON, LAN, SYS Operating condition Temperature: -10°C ~ +55°C...
-
Page 5: Installation
Installation 2:1 Installation Requirements ● Connecting the optical fiber cable to the unit. ● Remove the protective cap of the optical fiber. ● Clean the end of the optical fiber with an optical fiber end cleaner. ● Remove the protective cap of the ONU optical interface (PON interface). - Page 6 ● Insert the screws into the wall. The screw positions must be in the same horizontal line and the distance between them must be 145mm. Reserved at least 6mm between the screw caps and the wall. ● Hang the ONU on the screws through the mounting holes. 2:2 Panel Lights Mark Status...
-
Page 7: Web Management
Web Management ● After finishing the basic connection configuration, you can use its basic function. In order to satisfy individuation service requirements, this charter provides the user parameter modification and individuation configuration description. ● This model of ONU is designed as SFU (single family unit, bridge mode), there is no bridge mode WAN in ONU. - Page 8 For security, you will be asked to modify password after you logged in by default password. The new password must meet the requirements that display on the webpage. After submitted, it requires you to login by new password. Figure 3 Change Password...
- Page 9 3:2 Status This part shows the main information of product. 3.2.1 Device Information 3.2.1.1 Device Info This page shows the device basic information, such as Software Version, PON SN, LAN info, WAN info and so on. Figure Device Info...
- Page 10 3.2.1.2 PON Status This page shows the current system status of PON. Figure PON Status...
- Page 11 3.2.1.3 Statistics This page shows the packet statistics for transmission and reception regarding to network interface. Figure Statistics 3.2.1.4 Logout This page is used to logout from the Device. Figure Logout...
- Page 12 3:3 Setup 3.3.1 WAN 3.3.1.1 WAN Configuration This page is used to configure the parameters for the WAN interface of your ONU Router. Note : Only when connect type of PPPoE is "Manual", the "Connect" and "Disconnect"button will be enable. Figure WAN Configuration...
- Page 13 3.3.2 LAN 3.3.2.1 LAN Interface Setup This page is used to configure the LAN interface of your Router. Here you may change the setting for IP address, subnet mask, etc.. Figure LAN Interface Setup...
- Page 14 3.3.2.2 DHCP Mode This page can be used to config the DHCP mode:None,DHCP Relay or DHCP Server. (1) Enable the DHCP Server if you are using this device as a DHCP server. This page lists the IP address pools available to host on your LAN.
- Page 15 3:4 Maintenance 3.4.1 Upgrade Firmware This page allows you upgrade the Router firmware to new version. Please note, do not power off the device during the upload because it may crash the system. Note: System will reboot after file is uploaded. 3.4.2 Backup/Upload Settings Once the router is configured you can save the configuration settings to a configuration file on your hard drive.
- Page 16 3.4.3 Reboot/Restore This page is used to reboot your system or restore to default setting. Figure Reboot / Restore...
-
Page 17: Troubleshooting
Troubleshooting 1. After power all the lights are lit? Reasons: 1) Power connection errors 2) Power is not normal. Solution: 1) Check that the power cable is connected 2) The rear panel of the power supply is turned on. 2. GE / FE led does not light? Reasons: 1) Network cable is damaged or loose connection 2) Cable type error;... - Page 20 DIGISOL SYSTEMS LIMITED L-7, Verna Industrial Estate, Digisol is a Subsidiary of Smartlink Holdings Limited Salcete, GOA - 403722 www.digisol.com 1800 209 3444 helpdesk@digisol.com...
