n Power supply connection
Make sure the repeater's power is turned OFF when
connecting a DC power cable.
CAUTION: Voltages greater than 16 V DC will dam-
age the repeater. Check the source voltage before
connecting the power cable.
INSTALLATION AND CONNECTIONS

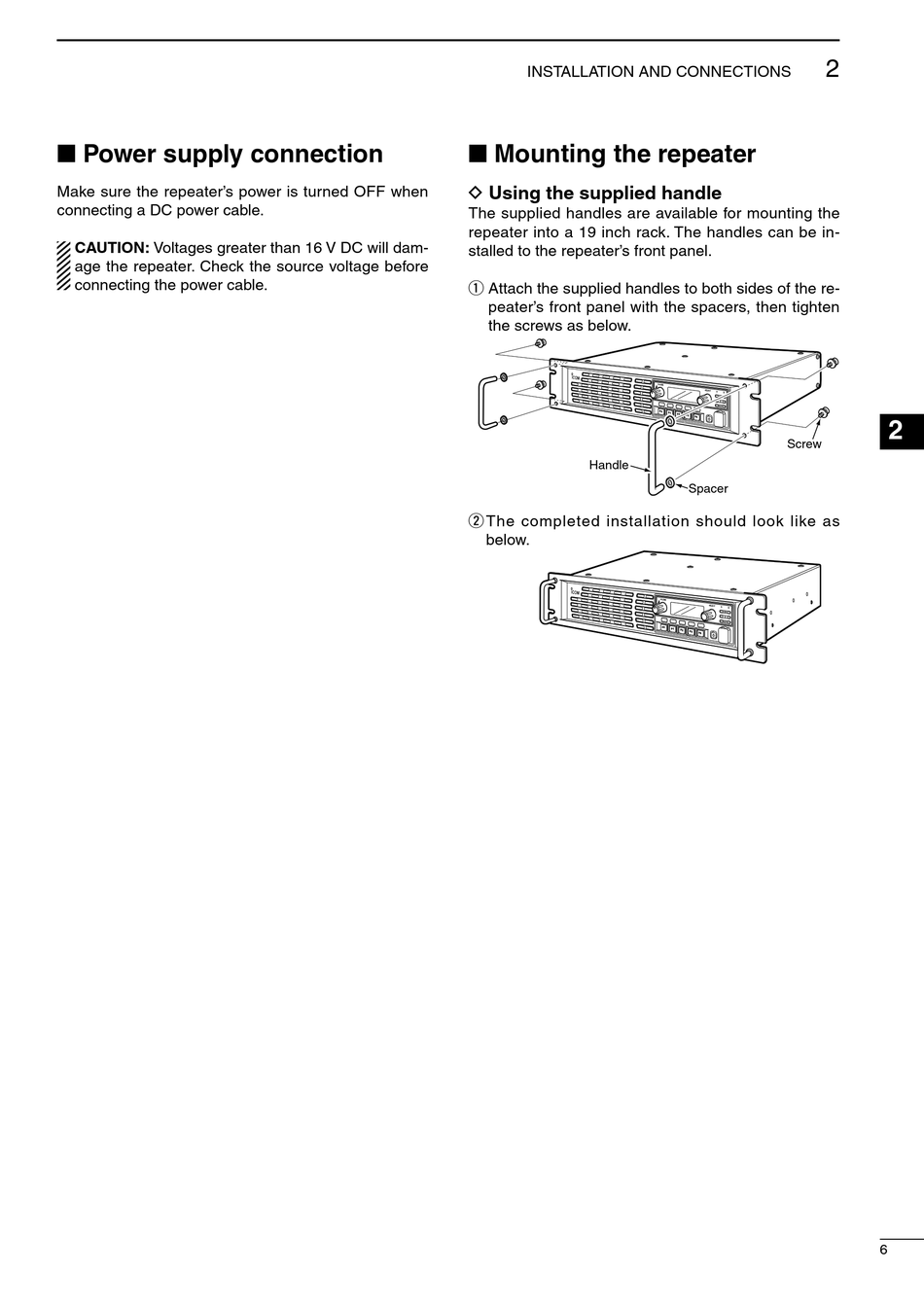

n Mounting the repeater

D Using the supplied handle

The supplied handles are available for mounting the
repeater into a 19 inch rack. The handles can be in-
stalled to the repeater's front panel.
q Attach the supplied handles to both sides of the re-
peater's front panel with the spacers, then tighten
the screws as below.
Handle
w The completed installation should look like as
below.
