2N - ISDN BRI GSM Enterprise
Gateway
User Manual
Version: 1.3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ISDN BRI GSM Enterprise and is the answer not in the manual?

Questions and answers

Related Manuals for 2N ISDN BRI GSM Enterprise

Summary of Contents for 2N ISDN BRI GSM Enterprise

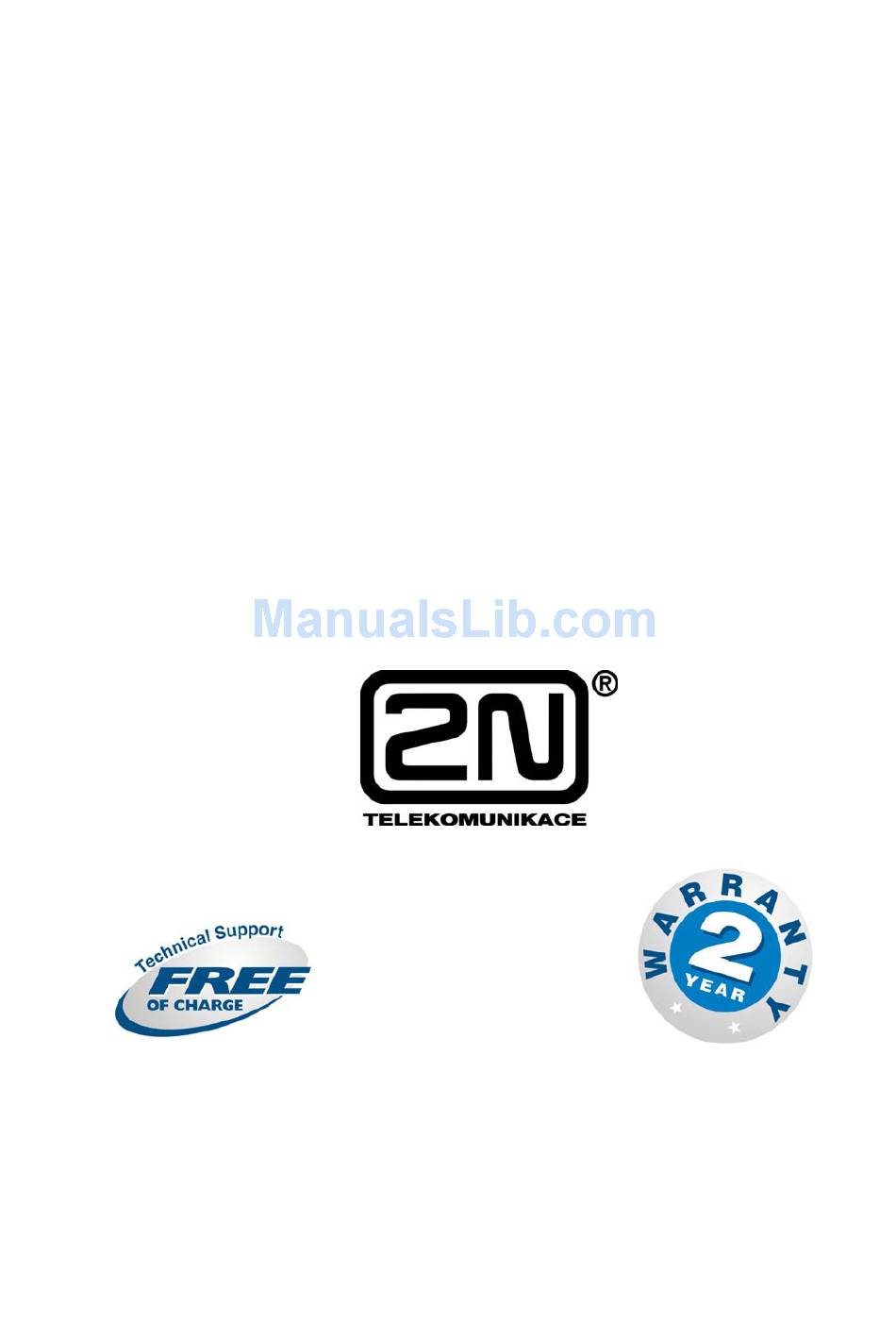

  • Page 1 2N - ISDN BRI GSM Enterprise Gateway User Manual Version: 1.3...
  • Page 2 We hope you will be fully satisfied with the 2N – ISDN BRI GSM Enterprise for a long time. The manufacturer constantly improves the software contained in the product (the so-called firmware).

  • Page 3: Packing List

    Item Pieces 2N – ISDN BRI GSM gateway Enterprise – check the model type according to the order number, see the type label on the gateway back side Mains adapter according to type...

  • Page 5: Table Of Contents

    3.2. Point-to-Multipoint Connection...............22 SECTION 4 – BRI GSM GATEWAY CONNECTION OPTIONS ..23 4.1. Connection of ISDN TE to 2N – ISDN BRI GSM Enterprise ....24 4.2. 2N – ISDN BRI GSM Enterprise Point-to-Point Connection ....24 4.3. 2N – ISDN BRI GSM Enterprise as Pass-Through Router .....27 SECTION 5 –...
  • Page 6 ATEUS® - ISDN BRI GSM gateway Enterprise SECTION 6 ETHERNET PORT CONFIGURATION ......38 6.1. Installation of Ethernet port drivers............39 6.2. Virtual COM port installation ..............41 6.3. Virtual COM port additional configuration..........44 SECTION 7 INTRODUCTION OF CONFIGURATION PROGRAM46 7.1.
  • Page 7 Figures Fig. 1 – Bottom View....................6 Fig. 2 – Top View ....................6 Fig. 3 – Gateway Holder Wall-Mounting ..............9 Fig. 4 – Gateway Hanging ..................9 Fig. 5 - Direct PC Connection*................11 Fig. 6 – LAN Connection..................12 Fig. 7 - RJ-45 Wiring for LAN Connection............12 Fig.
  • Page 8 ATEUS® - ISDN BRI GSM gateway Enterprise Fig. 38 – Ethernet port settings................45 Fig. 39 – Configuration of RS232 converter ............45 Fig. 40 – Gateway Selection Window ..............48 Fig. 41 – Gateway Editing Window ..............49 Fig. 42 - GSM Configuration Program Basic Menu..........50 Fig.

  • Page 9: Section 1 - Product Presentation

    ATEUS® - ISDN BRI GSM Gateway Enterprise S E C T I O N 1 – Product Presentation Here is a survey of what you will find in this section: • Purpose • How to Cut Telephone Costs • Other Advantages and Applications •...

  • Page 10: Purpose

    1.2. How to Cut Telephone Costs • Once your 2N – ISDN BRI GSM Enterprise gateway has been connected to your ISDN PBX, all calls going out to a mobile network are made directly. This saves your PSTN - mobile network call costs.

  • Page 11: Other Advantages And Applications

    2N - ISDN BRI GSM Enterprise Gateway • 2N - ISDN BRI GSM Enterprise keeps detailed records on all calls. This helps you find out easily why your bill is higher than it should be. • The Least Cost Router is flexible enough to help you set rules for GSM calling at the lowest possible operation costs.

  • Page 12: Rf Radiation Safety Precautions

    2N - ISDN BRI GSM Enterprise Gateway 1.4. RF Radiation Safety Precautions It is prohibited to use any transmitters, including GSM gateways, in areas where explosives are used, such as quarries. It is forbidden to use mobile phones and thus GSM gateways too at refuelling points.

  • Page 13: Section 2 - Installation

    2N - ISDN BRI GSM Enterprise Gateway S E C T I O N 2 – Installation Here is a survey of what you will find in this section: • Get Started • Brief Installation Guide • Proper Mounting • PC or LAN Connection* •...

  • Page 14: Get Started

    2N - ISDN BRI GSM Enterprise Gateway • Status Indicators • Lithium Battery Replacement • Fuse Replacement 2.1. Get Started Before you start installing your BRI Enterprise gateway, get familiar with its physical structure, arrangement of connectors and status indicators, see Fig. 1, Fig. 2, and Fig. 15.

  • Page 15: Brief Installation Guide

    2N - ISDN BRI GSM Enterprise Gateway 2.2. Brief Installation Guide • Proper mounting – 2N – ISDN BRI GSM Enterprise is designed for suspension on a vertical surface. Fit the holder included in the delivery on a wall and hang the gateway on it.
  • Page 16 Establish communication between your PC and the gateway (refer to Subs. 8.1). • 2N - ISDN BRI GSM Enterprise configuration - now use the configuration software to set all necessary gateway parameters - ISDN parameters, basic GSM parameters and tariff metering/pricing parameters, routing, restrictions, rates, system parameters, and input and switch properties.

  • Page 17: Proper Mounting

    2N - ISDN BRI GSM Enterprise Gateway 2.3. Proper Mounting • The 2N - ISDN BRI GSM Enterprise gateway is designed for mounting on a vertical surface. For this purpose a wall- mounting holder is available. Just fit the holder with dowels and screws (Fig.
  • Page 18 2N - ISDN BRI GSM Enterprise Gateway The allowed working temperature and relative humidity ranges are included in Section • Exceeding the recommended operating temperature values need not affect the gateway function immediately but may result in more rapid ageing and lower reliability.

  • Page 19: Usb Cable

    The 2N - ISDN BRI GSM Enterprise gateway can be connected to a PC using a USB cable terminated with a USB B connector. A direct connection of 2N - ISDN BRI GSM Enterprise and a PC is necessary for the initial gateway configuration when...

  • Page 20: Antenna Connection

    2N - ISDN BRI GSM Enterprise Gateway Fig. 6 – LAN Connection Fig. 7 - RJ-45 Wiring for LAN Connection 2.5. Antenna Connection The BRI GSM gateway has one SMA antenna connector for each GSM module, see Fig. 8. An external antenna cable is connected to these connectors.

  • Page 21: Gateway Power Supply

    2N - ISDN BRI GSM Enterprise Gateway Tighten the antenna connector gently with your hand, never use a wrench! 2.6. Gateway Power Supply • Be sure to use only the mains supply adapter that is included in the gateway delivery.

  • Page 22: Sim Card Installation/Removal

    2N - ISDN BRI GSM Enterprise Gateway 2.7. SIM Card Installation/Removal Insert the SIM card into the SIM card slots with your hand as shown in Fig. 10. Please make sure that the SIM card contact plates are on the side closer to the GSM gateway antenna connectors.

  • Page 23: Fig. 11 - Te And Nt Connector Pins

    2N - ISDN BRI GSM Enterprise Gateway Fig. 11 - TE and NT Connector Pins Fig. 12 - ISDN GSM Gateway Connected as Network Terminal (NT) Fig. 13 - ISDN GSM Gateway Connected as ISDN Terminal (TE)

  • Page 24: Status Indicators

    2N - ISDN BRI GSM Enterprise Gateway Fig. 14 - Basic ISDN GSM Gateway Wiring Diagram Choose the specific wiring as shown in Section 4. 2.9. Status Indicators There is a panel with five LEDs on the gateway upper cover for a quick GSM gateway status detection (see Fig.
  • Page 25 2N - ISDN BRI GSM Enterprise Gateway Power Indicator The Power LED signals whether the BRI GSM gateway is supplied or not. Power Indicator (green) Power LED colour/status No light The system is not working. / Blown fuse. Continuous light The system is working.
  • Page 26 GSM Indicators The GSM 1 and GSM 2 indicators signal statuses of the respective GSM modules. Whenever the 2N - ISDN BRI GSM Enterprise gateway is started, detection of the GSM modules and SIM cards is carried out. This process is signalled by a red LED, which goes on a few seconds after voltage is supplied.

  • Page 27: Lithium Battery Replacement

    Fig. 16 – Motherboard Diagram The lithium battery only supplies the real time internal clock in the ISDN BRI GSM Enterprise gateway in the event of power failure.

  • Page 28: Fuse Replacement

    (the value should not drop below 2.9 V). A completely low battery results in the ISDN BRI GSM Enterprise gateway losing the time and date information - false data appear also in the service log buffer listing.

  • Page 29: Section 3 - Isdn Bri Extension Configuration

    S E C T I O N 3 – ISDN BRI Extension Configuration To configure your 2N - ISDN BRI GSM Enterprise gateway properly, you have to know the type of connection of your ISDN terminals. This section helps you install your GSM gateway between already interconnected ISDN terminals.

  • Page 30: Point-To-Point Connection

    2N - ISDN BRI GSM Enterprise Gateway 3.1. Point-to-Point Connection Point-to-Point (EuroISDN with DDI) configuration interconnects directly one ISDN terminal (TE) with a network terminal (NT) (see Fig. 17). This type is applied mainly where PBXs are connected to the ISDN.

  • Page 31: Section 4 - Bri Gsm Gateway Connection Options

    This section deals with the connection options of the 2N - ISDN BRI GSM Enterprise gateway to the ISDN Basic Rate extension. This section includes: • Connection of ISDN TE to 2N – ISDN BRI GSM Enterprise • 2N – ISDN BRI GSM Enterprise Point-to-Point Connection • Chyba! Nenalezen zdroj odkazů.

  • Page 32: Connection Of Isdn Te To 2N - Isdn Bri Gsm Enterprise

    2N - ISDN BRI GSM Enterprise Gateway 4.1. Connection of ISDN TE to 2N – ISDN BRI GSM Enterprise The connection in Fig. 19 provides communication via a GSM gateway without PSTN connection. The ISDN telephone set is connected to the NT port of the GSM gateway, while a mains adapter simulating power supply from the public network is connected to the TE port.

  • Page 33: Fig. 19 - Isdn Telephone-Gateway Connection With Power Supply Simulation.24 Fig. 21 - Isdn Bri Gsm Point-To-Point Connection As Isdn Nt

    2N - ISDN BRI GSM Enterprise Gateway Fig. 20 - ISDN BRI GSM Point-to-Point Connection as ISDN NT Fig. 21 shows the possible connection of the GSM gateway as an NT and the gateway synchronisation is derived from the BRI...

  • Page 34: Fig. 22 - Isdn Bri Gsm Point-To-Point Connection As Isdn Nt With Public Isdn Synchronisation

    2N - ISDN BRI GSM Enterprise Gateway Fig. 21 - ISDN BRI GSM Point-to-Point Connection as ISDN NT with Public ISDN Synchronisation Fig. 22 - Multiple ISDN BRI GSM Gateway Connection...

  • Page 35: Isdn Bri Gsm Enterprise As Pass-Through Router

    2N - ISDN BRI GSM Enterprise Gateway 4.3. 2N – ISDN BRI GSM Enterprise as Pass-Through Router Fig. 23 shows how to save one BRI port to the PBX where the GSM gateway is set to operate as a pass-through gateway with respect to incoming calls while outgoing calls are routed according to the ISDN BRI GSM gateway LCR table.

  • Page 36: Section 5 - Telephony Via Isdn Bri Gsm Gateway

    This section includes: • Functions Supported by 2N – ISDN BRI GSM Enterprise • Call Routing Rules • LCR table • Routing of Outgoing GSM Calls •...

  • Page 37: Functions Supported By 2N - Isdn Bri Gsm Enterprise Gateway

    2N - ISDN BRI GSM Enterprise Gateway 5.1. Functions Supported by 2N – ISDN BRI GSM Enterprise Gateway • Call routing according to time and called destination through the destination's operator; • Intelligent incoming CLIP routing; • Auto CLIP routing;...

  • Page 38: Lcr Table

    2N - ISDN BRI GSM Enterprise Gateway If an outgoing call is routed via a port that is busy, the remaining available ports are searched for (depending on the configuration) and if no allowed outgoing port is free, the outgoing call is rejected.
  • Page 39 2N - ISDN BRI GSM Enterprise Gateway • If the number is evaluated as the "access to the GSM gateway“, the table of barred numbers is searched and if a match is found, the call request is rejected. • The ISDN GSM gateway waits for further digits to be dialled.

  • Page 40: Fig. 27 - Routing Of Outgoing Calls To Gsm Network

    2N - ISDN BRI GSM Enterprise Gateway Fig. 24 - Routing of Outgoing Calls to GSM Network...

  • Page 41: Routing Of Incoming Gsm Calls

    2N - ISDN BRI GSM Enterprise Gateway 5.5. Routing of Incoming GSM Calls Incoming calls from the GSM network are subject to the algorithm described in Fig. 25 and the following steps: Incoming calls are processed according to the Mode parameter in the GSM incoming groups chart.
  • Page 42 2N - ISDN BRI GSM Enterprise Gateway • In case the calling number is not included in the AutoCLIP routing chart, or the AutoCLIP routing function is disabled, the gateway receives the incoming call and either replays a voice message or transmits the dial tone to the calling party.

  • Page 43: Fig. 28 - Incoming Call Processing Procedure

    2N - ISDN BRI GSM Enterprise Gateway Fig. 25 - Incoming Call Processing Procedure...

  • Page 44: Disa Message Recording

    2N - ISDN BRI GSM Enterprise Gateway 5.6. DISA Message Recording If the DISA function is enabled and a welcome message recorded, this voice message is replayed to every incoming call whose number is not included in the AutoCLIP routing table. After the message is replayed, the gateway waits for the first DTMF digit for a timeout defined in the GSM incoming groups –...
  • Page 45 2N - ISDN BRI GSM Enterprise Gateway DISA Message Recording using terminal and GSM phone Recording of DISA message Open terminal window (see Subs 9). • Establish connection with your GSM phone using AT command: at!sg0=phone_number_of_your_GSM_phone • Accept incoming call from your GSM gateway by GSM phone.

  • Page 46: Section 6 Ethernet Port Configuration

    2N - ISDN BRI GSM Enterprise Gateway S E C T I O N 6 Ethernet port configuration This chapter focuses on installation and configuration of Ethernet port for communication over 10/100BaseT computer network. This port is optional part of the gateway. It is possible to skip this chapter if your gateway is not equipped with this port.

  • Page 47: Installation Of Ethernet Port Drivers

    2N - ISDN BRI GSM Enterprise Gateway 6.1. Installation of Ethernet port drivers Run SETUP.EXE to start the installation program. Click the “Next” button after the opening of the Welcome window. (See Fig. 26). Fig. 26 – Ethernet port installation Welcome window Install all optional parts of the installation as is shown on the Fig.

  • Page 48: Fig. 30 - Selection Of Optional Part Of Installation

    2N - ISDN BRI GSM Enterprise Gateway Fig. 27 – Selection of optional part of installation Wait until the installation successfully finishes. Fig. 28 – End of installation In the following window check „Open program folder“ checkbox. (See Fig. 29).

  • Page 49: Virtual Com Port Installation

    2N - ISDN BRI GSM Enterprise Gateway Fig. 29 – Open program folder checkbox 6.2. Virtual COM port installation To communicate with the gateway over Ethernet port it is necessary to install virtual COM port on your PC. For installation of virtual COM port use “VSP Manager”, which is possible to run...

  • Page 50: Fig. 34 - Os Windows Appeal

    2N - ISDN BRI GSM Enterprise Gateway Clicking on the “Add” button start the adding of new virtual COM port. On the appeal of OS Windows answer by clicking the “Continue” button. (See Fig. 31) Fig. 31 – OS Windows appeal After that the installation of new virtual COM port begins.

  • Page 51: Fig. 35 - Virtual Com Port Configuration Window

    2N - ISDN BRI GSM Enterprise Gateway Fig. 32 – Virtual COM port configuration window Clicking “OK” button confirm the changes and close the configuration window. Added port shows up in the VSP Manager window.

  • Page 52: Virtual Com Port Additional Configuration

    2N - ISDN BRI GSM Enterprise Gateway Fig. 33 – Added port in VSP Manager 6.3. Virtual COM port additional configuration To find out and change the virtual port configuration use the DS Manager, which is the part of the installation. The DS Manager is possible to run from the installed program folder.
  • Page 53 2N - ISDN BRI GSM Enterprise Gateway present in the BRI Enterprise gateway. This program allows uploading of new firmware to the converter, which is present on the installation CD. Fig. 35 – Ethernet port settings Please keep parameters of RS232 port as shown on the Fig. 36.
  • Page 54 2N - ISDN BRI GSM Enterprise Gateway S E C T I O N 7 Introduction of Configuration Program This section introduces the 2N – ISDN BRI GSM Enterprise configuration software, which is part of the installation CD supplied together with the gateway.

  • Page 55: Isdn Gsm Program Installation

    To facilitate the administration of more than one 2N - BRI ISDN GSM Enterprise gateway it is possible to use Gateway selection window. This window is located in menu “File – Gateway Selection”...
  • Page 56 2N - ISDN BRI GSM Enterprise Gateway Fig. 37 – Gateway Selection Window • Add - click on Add to open a window with some essential data necessary for the gateway identification (see Fig. 38). Enter the gateway name chosen by you into the Gateway name item. To control the gateway using the LAN, it is recommended to complete the Gateway address, Username and Password.
  • Page 57 2N - ISDN BRI GSM Enterprise Gateway Fig. 38 – Gateway Editing Window • Edit – used for editing identification data on the gateway entered. To edit the data, select the required gateway from the list of used gateways and click on Edit.

  • Page 58: Configuration Program Basic Menu

    2N - ISDN BRI GSM Enterprise Gateway • Main menu • Button bar menu (also contained in the main menu) • Card menu with tags • Topics with configuration items • Alphabetical glossary with configuration items arranged in alphabetical order.
  • Page 59 2N - ISDN BRI GSM Enterprise Gateway • Help – information on the About application of the configuration software together with contacts to the technical support personnel. File This menu is accessible under (Alt + i). • Load – is used for loading of the...
  • Page 60 2N - ISDN BRI GSM Enterprise Gateway Fig. 40 – Function Item of Main Menu • Load parameters fro gateway – downloads configuration of the gateway from the gateway to the configuration program. • Save parameters to the gateway – uploads configuration parameters form the program to the gateway.
  • Page 61 2N - ISDN BRI GSM Enterprise Gateway • Statistics – helps download statistic data concerning the count of called minutes, incoming and outgoing calls, sent SMS, etc. from the GSM gateway to the PC including saving into a file. • Tracing – for analysis of the GSM gateway behaviour on each RM OSI model layer.
  • Page 62 • Click on the button and find the firmware file in your PC directory in the format of P2009-V-*.hex. Press Open to get the file ready for uploading into the 2N - ISDN BRI GSM gateway Enterprise. • Click on to start the firmware uploading procedure.
  • Page 63 2N - ISDN BRI GSM Enterprise Gateway and the number of remaining hours click on Get known!. Contact the technical support personnel for the license please. Fig. 44 – Key Finding and Uploading Window Enter the received licence into Enter license and press Enter license! button.
  • Page 64 2N - ISDN BRI GSM Enterprise Gateway • Communication setting - helps set the type of communication of the 2N - ISDN BRI GSM Enterprise gateway configuration software. By clicking on this item you open a configuration window (see Fig. 45). You can use a USB cable, LAN or Internet for communication with the GSM gateway.

  • Page 65: Button Bar

    2N - ISDN BRI GSM Enterprise Gateway and GSM gateway by pressing Connect. The Disconnect key cancels this connection. To confirm changes press OK. • Application language - sets the language used for tag names. Help This menu is available under (Alt + h).
  • Page 66 2N - ISDN BRI GSM Enterprise Gateway Fig. 47 – Topic List (left) and Alphabetical Glossary (right)
  • Page 67 2N - ISDN BRI GSM Enterprise Gateway...

  • Page 68: Section 8 Configuration

    2N - ISDN BRI GSM Enterprise Gateway S E C T I O N 8 Configuration This section describes the 2N - ISDN BRI GSM Enterprise gateway setting using the GSM configuration software that is part of the installation CD supplied together with the gateway.

  • Page 69: Isdn Bri Gsm Gateway Communication Establishing

    2N - ISDN BRI GSM Enterprise Gateway • GSM parameters - Outgoing • GSM parameters - Incoming • GSM parameters - Prefixes • LCR table 8.1. ISDN BRI GSM Gateway Communication Establishing Select the gateway to be configured from the list of gateways available in the Main menu (refer to Subs.

  • Page 70: Gateway License

    2N - ISDN BRI GSM Enterprise Gateway 8.3. Gateway License The operation of every new 2N - ISDN BRI GSM Enterprise gateway is limited to 850 hours. Every gateway reset reduces the remaining gateway operation time by one hour. To identify the GSM gateway status use the Functions –...

  • Page 71: System Parameters

    2N - ISDN BRI GSM Enterprise Gateway 8.5. System Parameters Fig. 48 – System Parameter Editing Window The System parameters card reveals settings for CDR (Call Detail Records), and unit ID. • CDR mode – defines calls on which records should be made.

  • Page 72: Isdn Parameters

    2N - ISDN BRI GSM Enterprise Gateway 8.6. ISDN Parameters Fig. 49 – ISDN Parameter Editing Window The ISDN parameters card is used for setting all ISDN port parameters. To set the gateway default values click on Default. Individual items are explained below according to their respective groups in the editing window.
  • Page 73 2N - ISDN BRI GSM Enterprise Gateway • NT port setting • Point-to-point – when the gateway is connected to one device only (i.e. TE port of your PBX). It is possible to choose fixed TEI (Terminal Endpoint Identifier) assignment from range 0 to 63 (0 is mostly used for the point-to-point configuration) or dynamic TEI assignment TEI = 64 in case of point-to-point configuration.
  • Page 74 2N - ISDN BRI GSM Enterprise Gateway • DTMF password for calls TE -> GSM- set up of DTMF password for outgoing calls from TE port. This password must be dialed before dialing to GSM network. The following configuration menu shows up after clicking on the “Advanced”...
  • Page 75 2N - ISDN BRI GSM Enterprise Gateway • Few digits on OVERLAP dial mode – the incoming call was rejected because the number of digits of the calling party's dialling was too low for successful connection (default = 102 – Recovery on Timer Expiry).
  • Page 76 2N - ISDN BRI GSM Enterprise Gateway Numbering plan settings These parameters are for set „numbering plan“ values for Called party (CDN) and calling party number (CGN). Don’t send „Connect ACK“ to BRI2 – TE Removal of the TE progress from corfirmation message in ISDN communication.
  • Page 77 2N - ISDN BRI GSM Enterprise Gateway GSM parameters - General Fig. 50 – Basic GSM Parameter Editing Window This card contains basic settings for routing calls to the external GSM ports of the gateway. The Default button sets the default values.
  • Page 78 2N - ISDN BRI GSM Enterprise Gateway • Maximum – maximal count of digits received on ISDN interface that will be accepted for establishing of the connection to the GSM network. If the count of digits is higher than the value in this field the connection to the GSM network will continue using first n digits, where n is the value in this field.
  • Page 79 2N - ISDN BRI GSM Enterprise Gateway Call delay Time delay between two calls to the GSM network. Establishing of new call to GSM network thru the same GSM module is possible after expiry of this timeout. The GSM module clears the call to GSM network during this time.
  • Page 80 2N - ISDN BRI GSM Enterprise Gateway Relax delay the minimum timeout between the end of a call and the beginning of another outgoing call for one GSM module (Incoming and outgoing calls are not rejected during this timeout). The optimum time is 2 seconds.

  • Page 81: Gsm Parameters - Outgoing

    8.7. GSM parameters - Outgoing Fig. 51 - Editing Window of GSM outgoing parameters The 2N - ISDN BRI GSM Enterprise gateway allows you to setup both GSM modules for call to the GSM network independently. You can select different settings for each of them with respect to establishing connections, count of called minutes and sent messages within a period.
  • Page 82 2N - ISDN BRI GSM Enterprise Gateway GSM calls statistics • Max. number of called minutes – defines the maximum number of minutes called within a moth through the given SIM card. This parameter is ignored if 0 is selected.
  • Page 83 2N - ISDN BRI GSM Enterprise Gateway Example: If, from the viewpoint of the GSM provider, a call shorter than 60s is billed as a 60s call, set the Number of seconds after connect at 60s. If the GSM provider bills calls in seconds after the first 60s, set the Number of seconds for next counting at 1 s.
  • Page 84 2N - ISDN BRI GSM Enterprise Gateway • Enable (CLIP off) – the SIM card telephone number is not transmitted to the GSM network. CAUTION! Some GSM providers do not support this function, which might lead to rejection of an outgoing call.

  • Page 85: Gsm Parameters - Incoming

    8.8. GSM parameters - Incoming Fig. 52 - Incoming GSM Group Editing Window The 2N - ISDN BRI GSM Enterprise gateway allows you to setup both GSM modules for call from the GSM network independently. You can select different settings for each of them with respect to establishing incoming calls.
  • Page 86 2N - ISDN BRI GSM Enterprise Gateway Mode Set the way the GSM gateway shall process incoming calls from the GSM network. • Reject incoming calls – all incoming calls from the GSM network are rejected automatically. • Ignore incoming calls – all incoming calls from the GSM network are ignored automatically.
  • Page 87 2N - ISDN BRI GSM Enterprise Gateway DTMF digits • Minimum - the minimum number of digits required by the gateway in the DTMF. • Maximum - the maximum number of digits accepted by the gateway in the DTMF. • Wait for next digit [s] – a timeout during which the GSM gateway waits for the first / another DTMF digit.
  • Page 88 2N - ISDN BRI GSM Enterprise Gateway • Create record for unconnected calls only – sets saving of unconnected calls to the dynamic CLIP routing table. The record will be added in case the call was is not connected only •...

  • Page 89: Gsm Parameters - Prefixes

    2N - ISDN BRI GSM Enterprise Gateway 8.9. GSM parameters - Prefixes Fig. 53 - Network List Editing Window The List of prefixes helps the gateway connect calls to various GSM networks. You can define call routing by prefixes in eight groups.

  • Page 90: Lcr Table

    2N - ISDN BRI GSM Enterprise Gateway 8.10. LCR table The LCR (Least Cost Routing) table helps define the call routing procedure according to the called subscriber's number depending on the day time and day in a week. The LCR table setting using the GSM configuration software is discussed in this subsection.
  • Page 91 2N - ISDN BRI GSM Enterprise Gateway Fig. 55 – LCR table Data Entering By completing the LCR data adding table you set one call routing rule. • Prefix list – select one of the prefixlists from the “GSM Parameters – Prefixes” in the pull-down menu to which the routing rule should apply.
  • Page 92 2N - ISDN BRI GSM Enterprise Gateway • Edit – you can edit a routing rule from the LCR table by pressing this button. • Remove – deletes a routing rule selected from the LCR table list. Holiday List • Holidays list – enter the public holidays to optimise your telephone costs with the LCR.
  • Page 93 2N - ISDN BRI GSM Enterprise Gateway • Add – this button is intended for adding of new record to the autorouting table. The window shown on the opens by clicking this button. • GSM number (CLIP) – field for the GSM number, for which will be autodial or autocallback function applied.

  • Page 94: Section 9 - Configuration Using Terminal

    S E C T I O N T 9 – Configuration Using Terminal It is possible to communicate with the 2N - ISDN BRI GSM Enterprise gateway through a USB port connected as a virtual COM port or through the LAN. Both the connections allow for a uniform way of gateway configuration using AT commands.

  • Page 95: Usb Communication Settings

    9.2. LAN Communication Settings To communicate with the 2N - ISDN BRI GSM Enterprise gateway through the LAN, set the LAN IP address first. To do this you need a direct USB PC connection. You can use such programs as HyperTerminal, Putty, etc.

  • Page 96: List Of Terminal At Commands

    2N - ISDN BRI GSM Enterprise Gateway gateway. The gateway responses with the message shown in the Fig. 56 if the login name is required. After entering of your login name press <ENTER> and after that enter the password. Fig. 56 – Login message 9.5.
  • Page 97 2N - ISDN BRI GSM Enterprise Gateway &S## ...view aux, bris, one module status (ax,px,ex,0..1) &S=info ...view all modules selected info (by at&S##) &Q## ...view signal quality on module 0..1 &QALL ...view signal quality on all modules &L ...view logfile from recent <SPACE...continue>...
  • Page 98 2N - ISDN BRI GSM Enterprise Gateway AT&Gxx=ON Transfer of GSM module into the idle mode ISDN Settings %I00=xxx ...pri1 protocol/mode: NT,TE,NT/S,NTNT (pri2 = TE,NT,SY,NT) Pro FW:2_03_15 pouze NT a NT/S (sync prijimana z TE portu) %I01=tei,mtp tei,mtp = 0..63,0 ….fixed tei,ptp tei,mtp = 64,0 ….dynamic tei,ptp...
  • Page 99 2N - ISDN BRI GSM Enterprise Gateway bit2=don't send CLIP for calls BRI<-GSM bit3=send AoC for calls BRI->GSM (functionless for FW>2.03.14 and lower) dial (0=off,1..255) dialtone to GSM, ring(0=off,1..255) ringtone to GSM if no PROGRESS from PBX - 1=EU (dial = constantly 425Hz,...
  • Page 100 2N - ISDN BRI GSM Enterprise Gateway %P04=uuu/HH:MM,..pseudo tarif extension %P05=uuu/HH:MM,..pseudo tarif extension %P06=uuu/HH:MM,..pseudo tarif extension %P07=uuu/HH:MM,..pseudo tarif extension %P09=mode,sec ...pseudo mode (0=off,1=cdr,2=cdr+isdn), isdn.sec (1..250) Networklist Parameters %N#0=opx/npx,..list of old/new main-prefixes (max 47 chars) %N#1=pref/dig,...
  • Page 101 2N - ISDN BRI GSM Enterprise Gateway Routing Paramaters %A##=clip,dial,limit ...set autorouting item (ix 0..95) clip (20), dial(20), limit(0=off,1..99 minutes) %R##=net,hh:mm/hh:mm/w+-,groups,lim ...set lcr-routing item (ix 0..63) net (1..8), groups = (max 7 chars=1..3,9), 3=any module, 9=bri2 call limit (0=off, 1..99min) last LCR table line must be empty ;...
  • Page 102 2N - ISDN BRI GSM Enterprise Gateway Work with SMS SMS sending and receiving commands AT!G=A6 Start low-level controlling for SMS (can run only on one port) AT!G=55 Stop low-level controlling on used port Control SMS AT^SX=ch …(sms listing) request to list all SMS messages and status confirmations saved on SIM card.

  • Page 103: Status Messages

    2N - ISDN BRI GSM Enterprise Gateway 9.6. Status Messages ISDN Layer 1 Status Messages Name Description DEACT Deactivation – no signal received ACTIVE Activation – full synchronisation achieved (frame,multiframe,crc) SIGNAL Signal received – no synchronisation SYNC Signal received – only partial synchronisation (frame)
  • Page 104 2N - ISDN BRI GSM Enterprise Gateway GSM Layer Statuses GSM Layer 2 Status Messages Name Description Followed by INIT GSM module initialisation start PINREQ SIM0 Module switch to internal SIM card INIT PINREQ Module PIN request PINSET PINSET PIN value sending to module...
  • Page 105 2N - ISDN BRI GSM Enterprise Gateway Layer 4 Status Messages Name Description NULL Rest status, ready for call MORE Call request received from GSM or ISDN, awaiting further dialling or timeout SETUP Call request sent to opposite interface PROC...
  • Page 106 2N - ISDN BRI GSM Enterprise Gateway Command Shell Statuses Command Line Status Messages Name Description IDLE Rest status, awaiting AT commands REQUEST Communication with GSM module upon AT&G command is displayed REPORT Active tracing LOGFILE Content of log file is being written out...

  • Page 107: Records On Operation (Log)

    2N - ISDN BRI GSM Enterprise Gateway 9.7. Records on Operation (LOG) Type Text Description POWER [Power on] System switched on [Power off] System switched off [Warm boot] Restart of system, unknown cause [Watchdog] Restart of system by watchdog [BKPT code]...
  • Page 108 2N - ISDN BRI GSM Enterprise Gateway Type Text Description G2-ERR ATD/ERROR init (g##) Error of isdn layer 2: restart of module g## after rejected command ATD by GSM network GSM Cause 150 (g##) Error of isdn layer 2: restart of module g## after cause 150 was...

  • Page 109: Records On Calls

    2N - ISDN BRI GSM Enterprise Gateway 9.8. Records on Calls Example of a successfully connected call: 06.12.05/15:44:57 O-OK CAU-016 p01/g01 GRP-3 0:18 000:12 00000.00 737111074 1/230030102122930 • 1st column: ** • 2nd column: call start date/time • column: call type •...

  • Page 110: Statistics - Description

    2N - ISDN BRI GSM Enterprise Gateway 9.9. Statistics – Description [ Total statistics ] network (reset) minutes hhhh:mm:ss calls reject failed c.offs errors ------------------------------------------------------------------------------------------------------------------------------------ #bri1 inc (0.00) 0:02:21 #bri2 inc ( 0.00) 0:00:00 network (reset) minutes hhhh:mm:ss calls reject failed red.in...
  • Page 111 2N - ISDN BRI GSM Enterprise Gateway • C.offs - number of unconnected calls (terminated by the calling party) • Errors - number of unconnected calls (wrong requests - dialled prefix, etc.) • Red.in - number of connected calls (re-routed to this GSM group) •...
  • Page 112 2N - ISDN BRI GSM Enterprise Gateway...

  • Page 113: Section 10 - Technical Parameters

    2N - ISDN BRI GSM Enterprise Gateway S E C T I O N 1 0 – Technical Parameters GSM: GSM 850/900/1800/1900MHz , UMTS/3G at 2100MHz Mobile network type – according to the GSM/3G module used SIM card plug-in 3 V ("small")
  • Page 114 2N - ISDN BRI GSM Enterprise Gateway Power Supply: Adapter 110 - 230 V, 50/60 Hz / 12V DC DC power supply 12 V DC / 2 A Supply connector DC jack, 2.1 mm Lithium battery CR2032 ISDN: So, point to multipoint...
  • Page 115 2N - ISDN BRI GSM Enterprise Gateway ©2005 2N TELEKOMUNIKACE a.s. - Praha, PR 1272 v.1.3...
